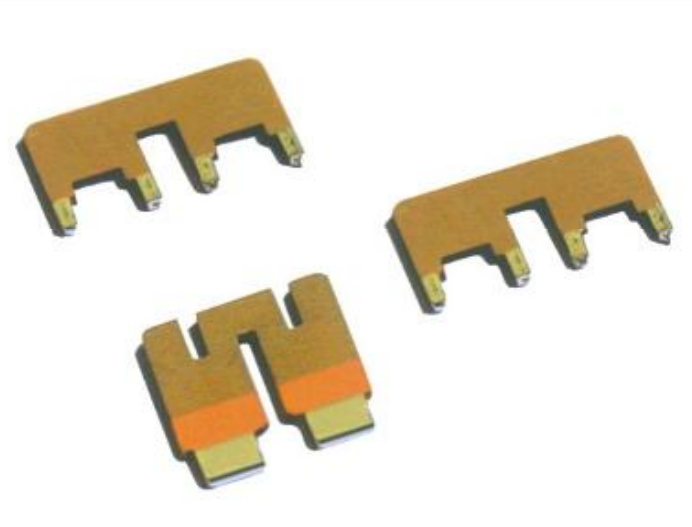

CFL (M) Precision Shunts

Features:

E - Beam welded construction, RoHS Compliant
Max 55Amp continuous operating current
Inductance less than 10nH
2 - terminal or 4 - terminal Kelvin connections

Applications:

Ideally suited for Electronic KWH - meter as sampling sensing shunts
Custom designed shunts available

Derating Curve:

Type	Power rating	Resistance	Tolerance
CFL - 2	max 2W	0.003Ω - 0.010Ω	± 1%, ± 5%
CFL - 4	max 5W	0.0005Ω - 0.010Ω

Technical Specifications:

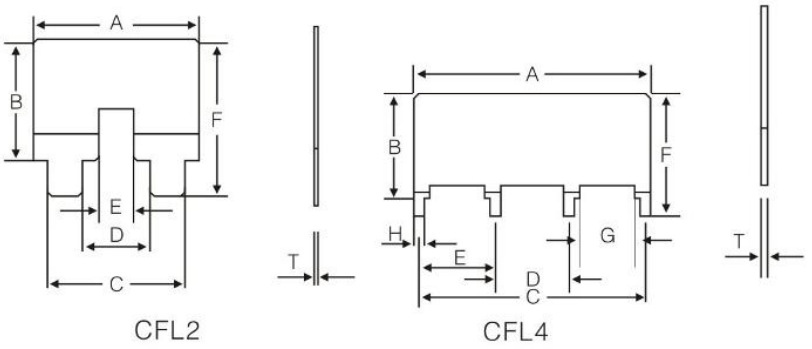

Type	A	B	C	D	E	F	G	H	T ± 0.05
CFL - 2	15.6 ± 0.10 17.2 ± 0.10	14.0 ± 0.10 10.0 ± 0.10	13.6 ± 0.10 15.2 ± 0.10	4.0 ± 0.10 5.6 ± 0.10	1.2 ± 0.10 1.2 ± 0.10	17.0 ± 0.10 13.0 ± 0.10	/ /	/ /	0.32 0.32
CFL - 4	22.0 ± 0.25	10.9 ± 0.25	20.3 ± 0.13	5.2 ± 0.13	7.55 ± 0.13	14.4 ± 0.25	4.45 ± 0.25	1.7 ± 0.13	0.35 - 1.8

Performance:

Testing Item	CFL - 2	CFL - 4	Test method
High Temp.Exposure	< 1.0%R	< 1.0%R	125°C, 1000h
Temp.Cycling	< 0.5%R	< 0.5%R	- 55°C/125°C, 5cycles
Load life	< 0.5%R	< 0.5%R	70°C, (A_{g}), 1000h
Biased Humidity	< 0.5%R	< 0.5%R	40°C, RH93 ± 3%, 240h
Leaching	< 0.5%R	< 0.5%R	350 ± 10°C, 2.5s
