RNA/RNB Precision Shunts

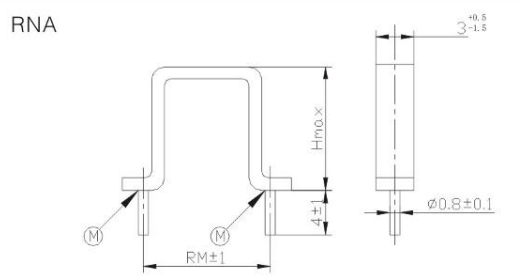

Dimensions(mm):

Type	Power rating	H	RM
RNA - 10 - A	0.5W	6.5	10
RNA - 10 - B	1.0W	10.5	10
RNA - 10 - C	1.5W	17	10
RNA - 15 - A	1.0W	8	15
RNA - 15 - B	1.5W	14.5	15
RNA - 20 - B	1.5W	12	20

Performance:

Test Item	Specifications	Test Methods
Short - term overload	(Delta Rleqpm(1\%Rpm0.05Omega))	(sqrt{5PR}), 5s
Solderability	The solder wets the lead and can flow freely, and the tin area on the lead is more than 95%	235°C ± 5°C, 2s ± 0.5s
Temperature Coefficient	± 100 ((10^{-6}/K))	GB/T 5729 - 2003 Article 4.8
Long - term life	(Delta Rleqpm(5\%Rpm0.1Omega)) Insulation resistance (geq1 GOmega)	1000h, 1.5h Power on, 0.5h Power off
Maximum Operating Temperature	≤ 70°C	-
