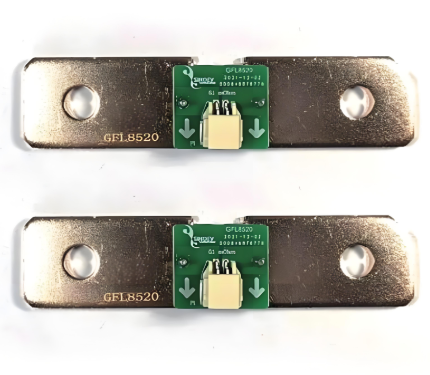

GFLEV8520 Precision Shunt

Product features:

Kelvin connection
Excellent Long - term Stability
Electron beam welding process
AEC - Q200 compliant

Application:

Power supply module
Switching Mode Power Supply
Frequency converter
Current sampling system
Charging pile
Electrocar

Specification:

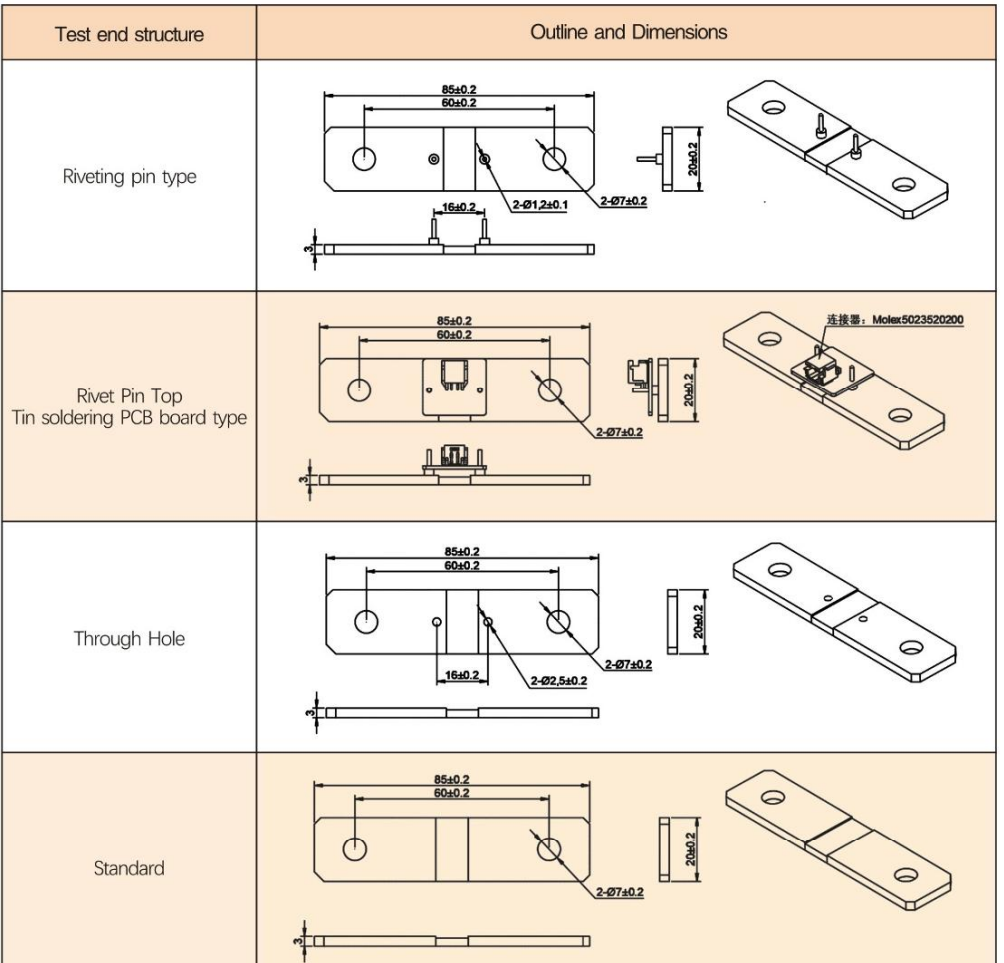

Type	Resistance Values	Tolerance	Rated Current	Operating Temperature	Test end structure
GFLEV8520B - 0.1mΩF	0.1mΩ	± 1.0%	350A	- 40°C - 125°C	Riveting pin type
GFLEV8520B - 0.1mΩD		± 0.5%
GFLEV8520B - 0.1mΩC		± 0.2%
GFLEV8520C - 0.1mΩF		± 1.0%			Rivet Pin Top Tin soldering PCB board type
GFLEV8520C - 0.1mΩD		± 0.5%
GFLEV8520C - 0.1mΩC		± 0.2%
GFLEV8520E - 0.1mΩF		± 1.0%			Through Hole
GFLEV8520E - 0.1mΩD		± 0.5%
GFLEV8520E - 0.1mΩC		± 0.2%
GFLEV8520F - 0.1mΩF		± 1.0%			Standard
GFLEV8520F - 0.1mΩD		± 0.5%
GFLEV8520F - 0.1mΩC		± 0.2%

Type introduction:

Model Number	Size Code	Test End Structure Code	-	Resistance Value	Resistance Accuracy
GFLEV	Shunt - dimensions (length, width)	A: PCB mounting type B: Rivet pin type C: Riveting pin with soldered PCB on top D: Threaded hole type (rivet nut) E: Through - hole type F: Standard type	-	Shunt resistance value	J: ± 5% G: ± 2% F: ± 1% D: ± 0.5% C: ± 0.2%
Remarks	<ul><li>This code is composed of the length and width of the material.</li><li>When the length/width dimension is with decimal, fill in the whole number after rounding up.</li></ul>	-	Interval symbol, meaningless	<ul><li>Nominal resistance value ≥ 100 μΩ, the unit is mΩ.</li><li>When the nominal resistance value is < 100μΩ, the unit is μΩ.</li></ul>	The rest of the nominal precision according to the actual precision, for example: ± 3%
