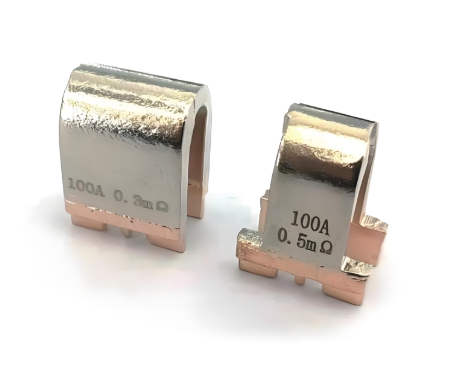

UFL Precision Shunt

Product features:

Kelvin connection
Excellent Long - term Stability
Electron beam welding process

Application:

Power supply module
Switching Mode Power Supply
Frequency converter
Current sampling system

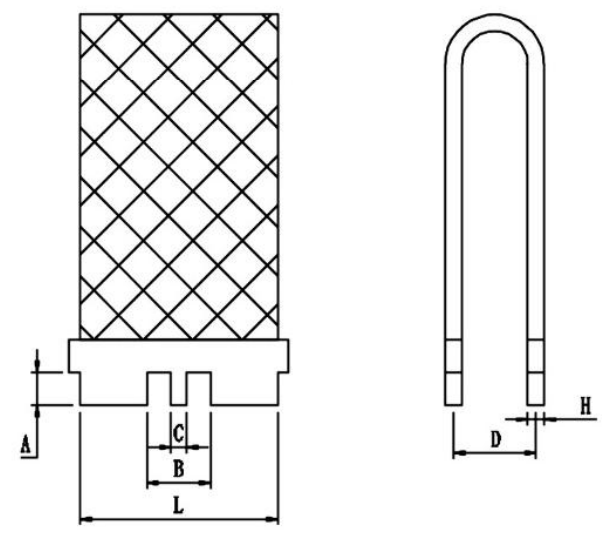

Dimensions(mm):

Type	L	A	B	C	D	H
UFL 100A - 0.3mΩ	18	3.5	6.5	1.5	8.5	1.5
UFL 100A - 0.5mΩ	18	3.5	6.5	1.5	8.5	1.5
UFL 60A - 0.3mΩ	18	3.5	6.5	1.4	8.5	1.5
UFL 80A - 80mV	18	3.5	5.8	1.4	7.7	1.5
UFL 80A - 0.4mΩ	15	3	5.8	1.4	6.5	1.5

Specification:

Type	Resistance Values	Tolerance	Rated Current
UFL 100A - 0.3mΩ	0.3mΩ	± 0.5% ± 1.0%	100A
UFL 100A - 0.5mΩ	0.5mΩ	± 0.5% ± 1.0%	100A
UFL 60A - 0.3mΩ	0.3mΩ	± 0.5% ± 1.0%	60A
UFL 80A - 80mV	1.0mΩ	± 0.5% ± 1.0%	80A
UFL 80A - 0.4mΩ	0.4mΩ	± 0.5% ± 1.0%	80A
