RN1A Precision Shunt

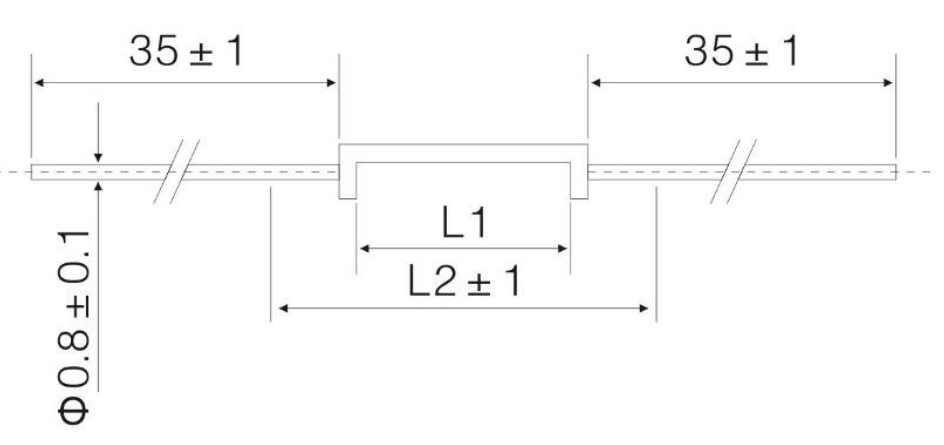

Dimensions(mm):

Type	Power rating	L1	L2
RN1A - 1	1W	12 - 14.5	40
RN1A - 2	2W	17.5 - 21.5	45
RN1A - 3	3W	29 - 34	60

Performance:

Test Item	Specifications	Test Methods
Short - term overload	(Delta Rleqpm(1\%Rpm0.05Omega))	(sqrt{5PR}), 5s
Solderability	The solder wets the lead and can flow freely, and the tin area on the lead is more than 95%	235°C ± 5°C, 2s ± 0.5s
Temperature Coefficient	± 100 ((10^{-6}/K))	GB/T 5729 - 2003 Article 4.8
Long - term life	(Delta Rleqpm(5\%Rpm0.1Omega)) Insulation resistance (geq1 GOmega)	1000h, 1.5h Power on, 0.5h Power off
Maximum Operating Temperature	≤ 70°C	-

LINE

WECHAT

SKYPE

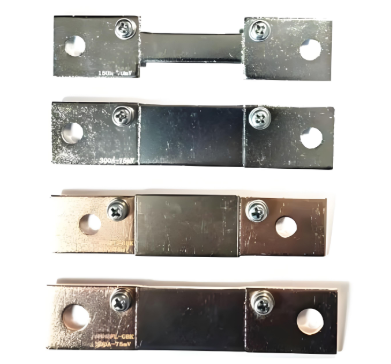

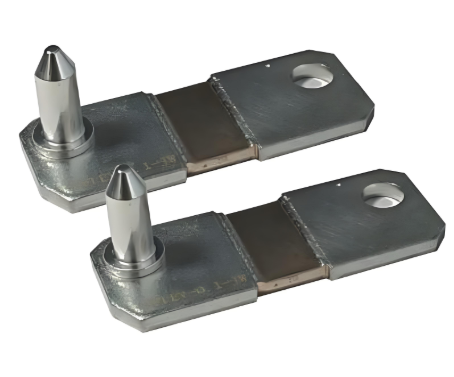

In addition to RN1A Precision Shunt, we also focus on the following resistors:
