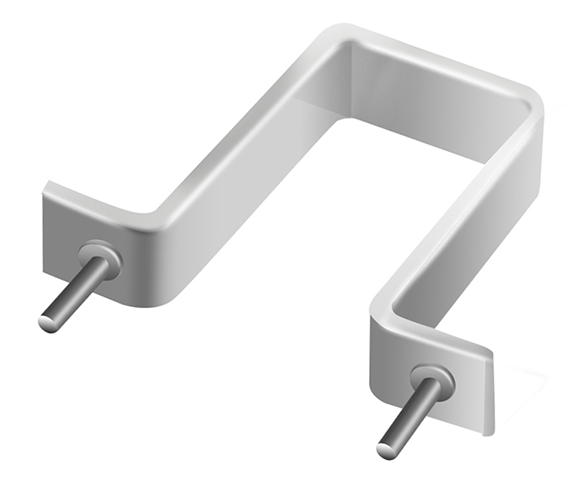

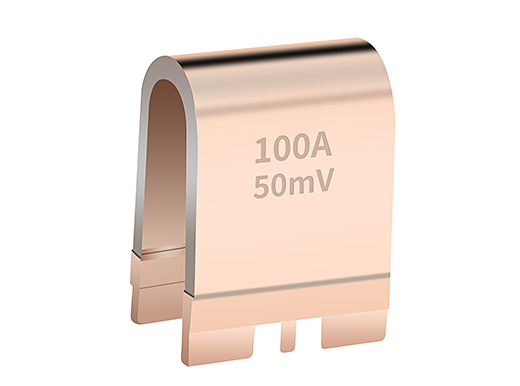

Customizable U-Type High-Power Sampling Shunts

FeatureDetails
Tolerance±1%, ±0.5%
Current HandlingExcellent current ability
Inductance<5 nH
DesignSolderable copper leads
ComplianceRoHS Compliant
CustomizationSpecial specifications can be customized
ApplicationsCurrent Sensing, Drive technology, Power Electronic, Home Appliance, Communication System

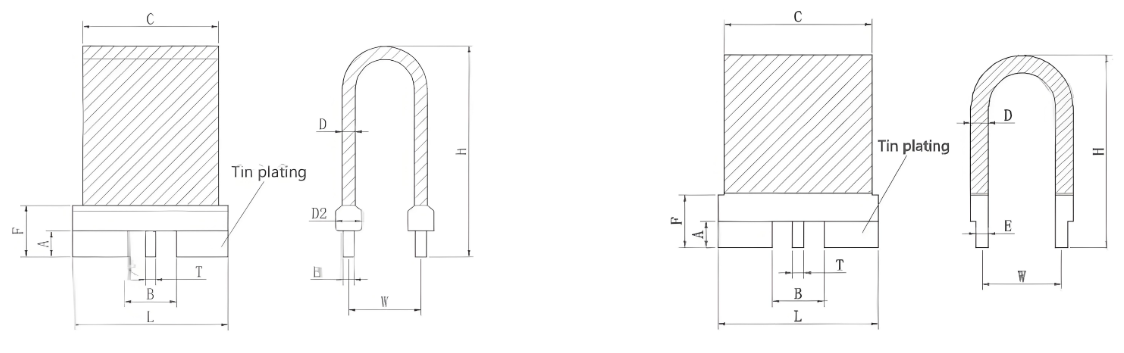

DataL±0.2W±0.5D±0.1C±1H±2A±0.2B±0.1T±0.1E±0.1F±1D2±0.1
40A151225172435.81.21.36
40A100mV188.41.0103335.81.21.36
50A75mV188.41.5113335.81.21.36
50A100mV188.41.012.53335.81.21.36
65A50mV188.41.515.52535.81.21.36
75A50mV188.41.715.52535.81.21.36
100A50mV188.41.515.51735.81.21.36
100A75mV188.41.515.52535.81.21.36
100A100mV188.41.516.53335.81.21.36
200A100mV1810.53.016.53435.51.41.56

DataL+0.2W±0.5D±0.1C±1H±0.5A±0.2B±0.1T±0.1E±0.1F±1
45A128.41.2112035.81.41.26
80A156.42.0142235.81.41.56
100A1810.52.017.224361.41.46
100A100m188.41.01822361.21.0
200A78mV188.43.015.52635.51.41.5
300A78mV1810.53.0182635.81.41.5
Technical DataDetails
TypeUSR/UBH
Resistance (mΩ)0.1~10
Tolerance±0.5%, ±1%, ±2%, ±5%
Recommended Temperature Range-65°C to +170°C
Rated Current (A)5~300
Temperature Coefficient (ppm/°C)±50
MaterialManganin
Performance CharacteristicsAdditional RequirementsReferenceLimits
Temperature Cycling1000 Cycles (-55°C to +125°C)JESD22 Method JA-104±0.5%
High Temperature Exposure100 hrs @ T=170°C, UnpoweredMIL-STD-202 Method 108±0.5%
Low Temperature Storage250 hrs @ T=-55°C, UnpoweredMIL-STD-202 Method 108±0.5%
Biased Humidity1000 hrs @ 85°C/85% RH, 10% of operating powerMIL-STD-202 Method 103±0.5%
Operational LifeCondition D Steady State TA=125°C at rated powerMIL-STD-202 Method 108±0.5%
Resistance to Soldering Heat260°C ±5°C, 10s ±1sMIL-STD-202 Method 210±0.5%
Short Time Overload5x Rated power for 5sMIL-STD-202 Method 201±0.5%
Shock100g, 6ms, axes Z, X, and Y, 10 Shocks per axisMIL-STD-202 Method 213±0.5%
Vibration(10-2000 Hz), 20g @ 0.1msMIL-STD-202 Method 204±0.5%
Solderability245°C ±5°C, 5s ±0.5s, 95% Coverage MinimumMIL-STD-202 Method 208H
