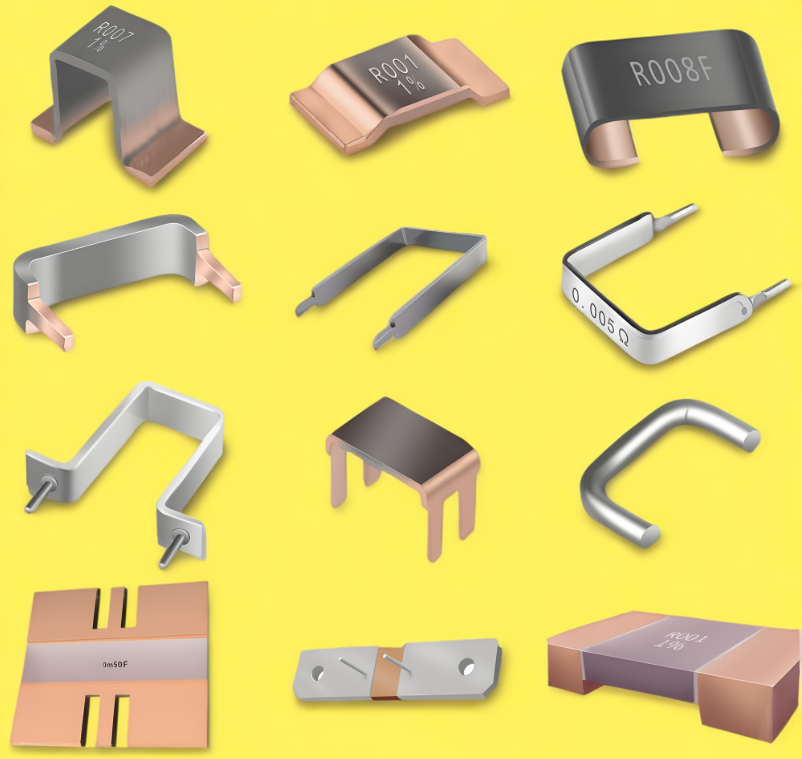

Power Shunts Resistors

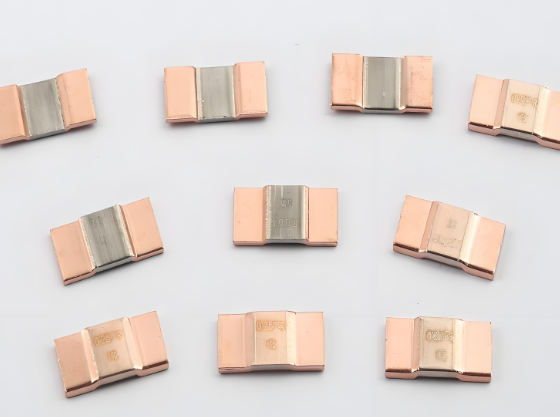

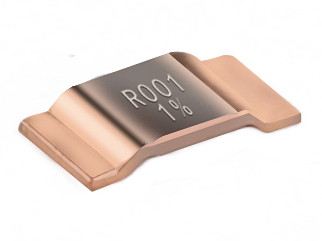

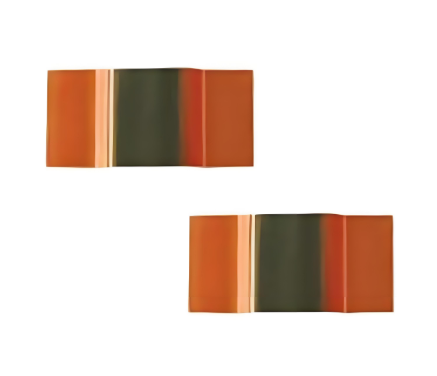

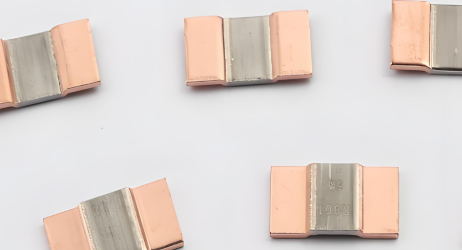

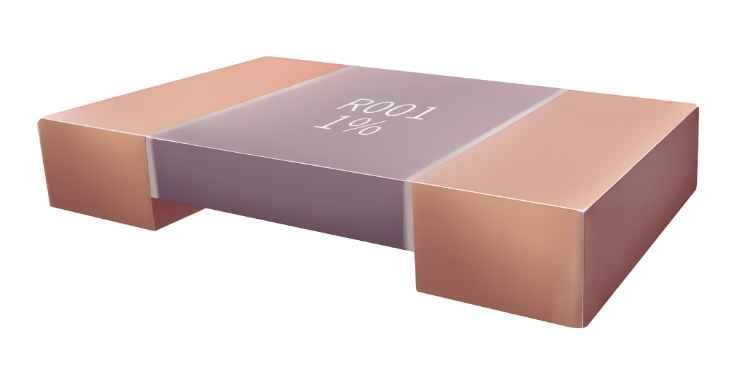

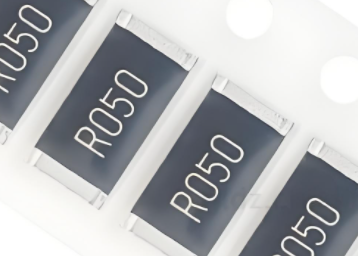

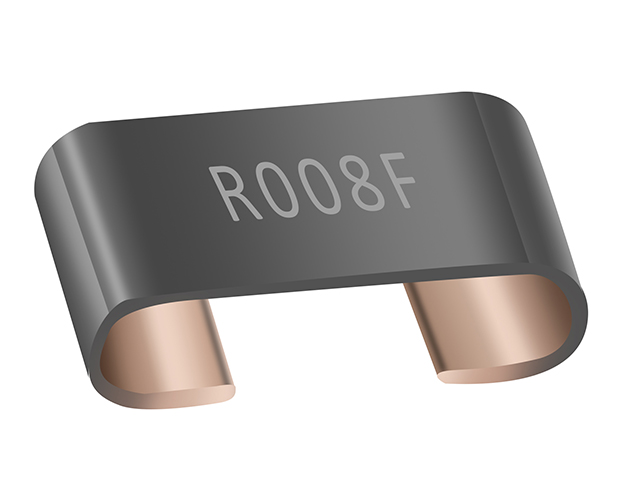

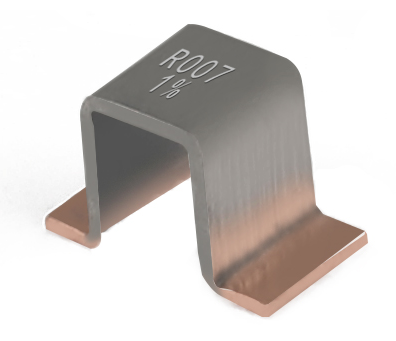

Alloy Chip Resistors

Compact surface-mount devices built using advanced alloy materials for precision current regulation. Key features include:

• Tolerance: ±0.1% to ±1% with temperature coefficients down to 10ppm/°C

• Power Handling: 0.1W to 2W in standard SMD packages (0402-2512)

• Applications: Precision voltage dividers, medical instrumentation, and RF circuits

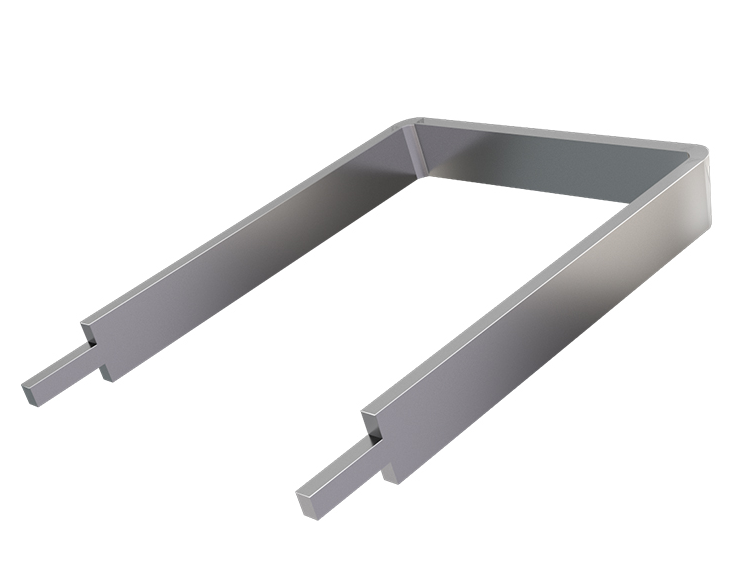

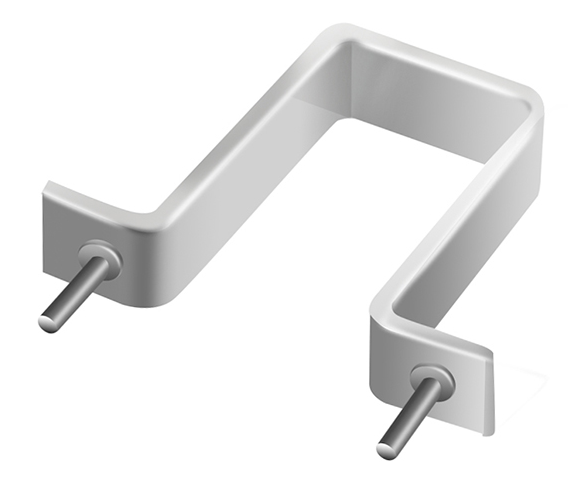

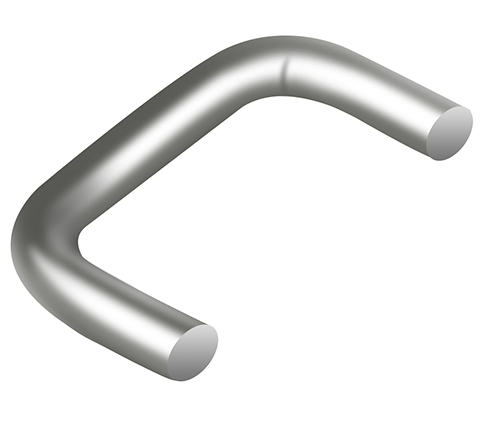

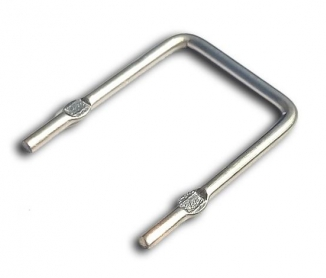

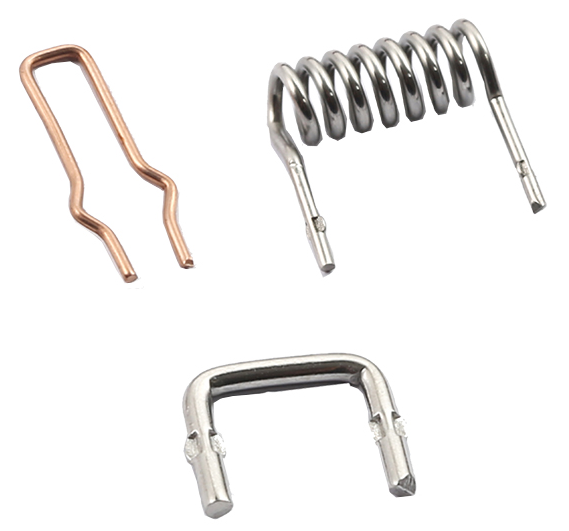

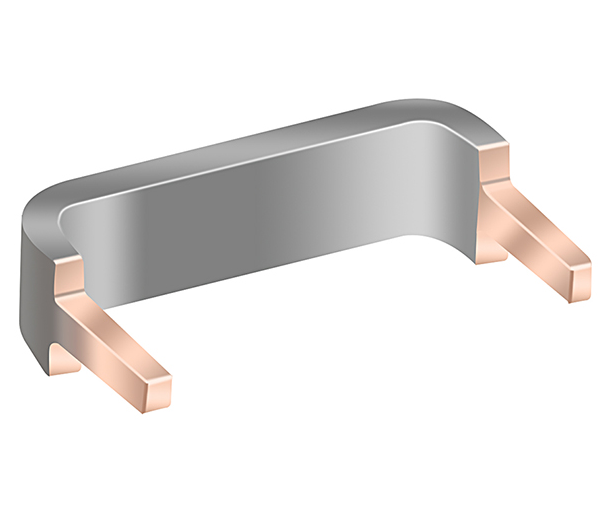

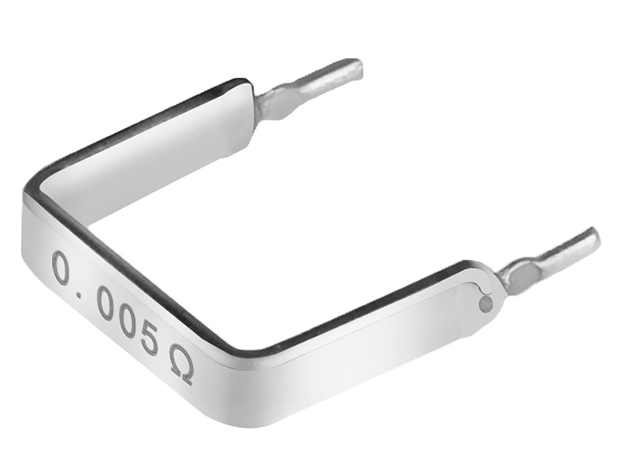

Alloy Plug-in Sampling Resistors

Through-hole components designed for circuit diagnostics and current monitoring:

• Construction: Flame-retardant ceramic substrate with welded alloy elements

• Current Range: 1A to 50A continuous operation

• Installation: Vertical/horizontal mounting with 5mm pin spacing

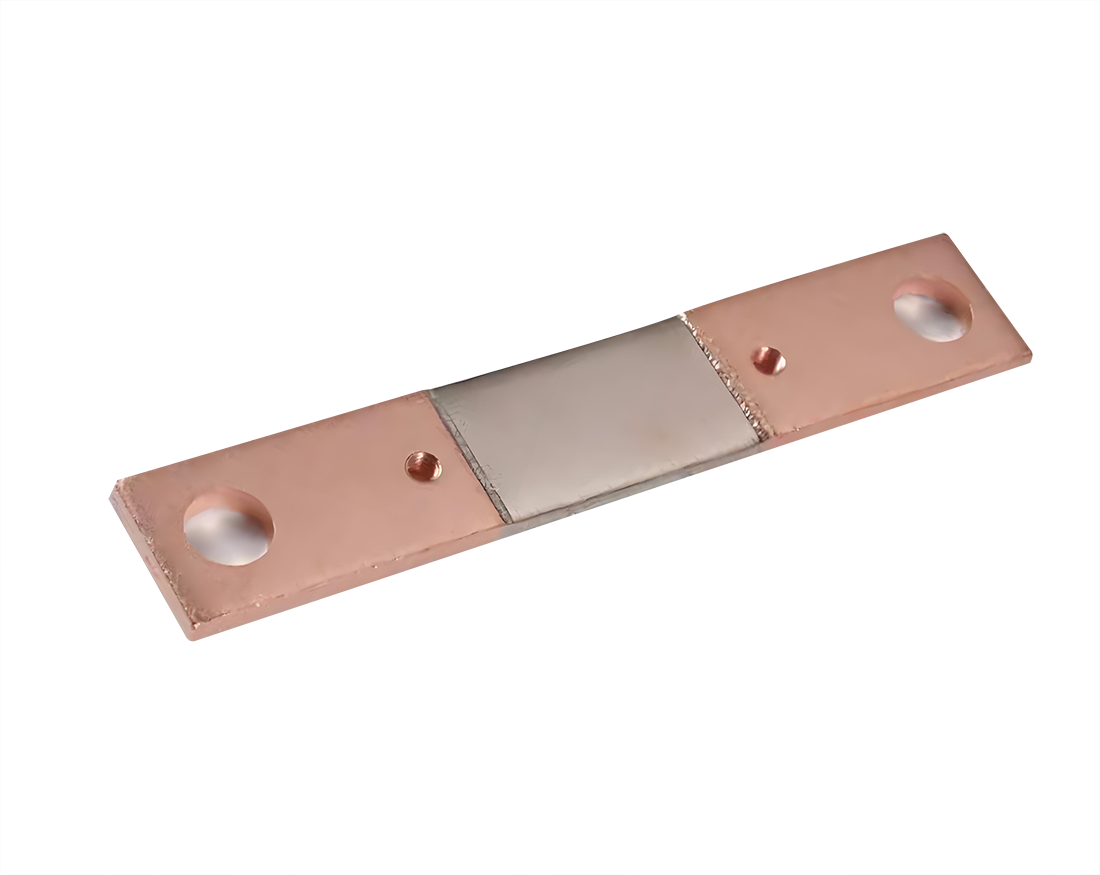

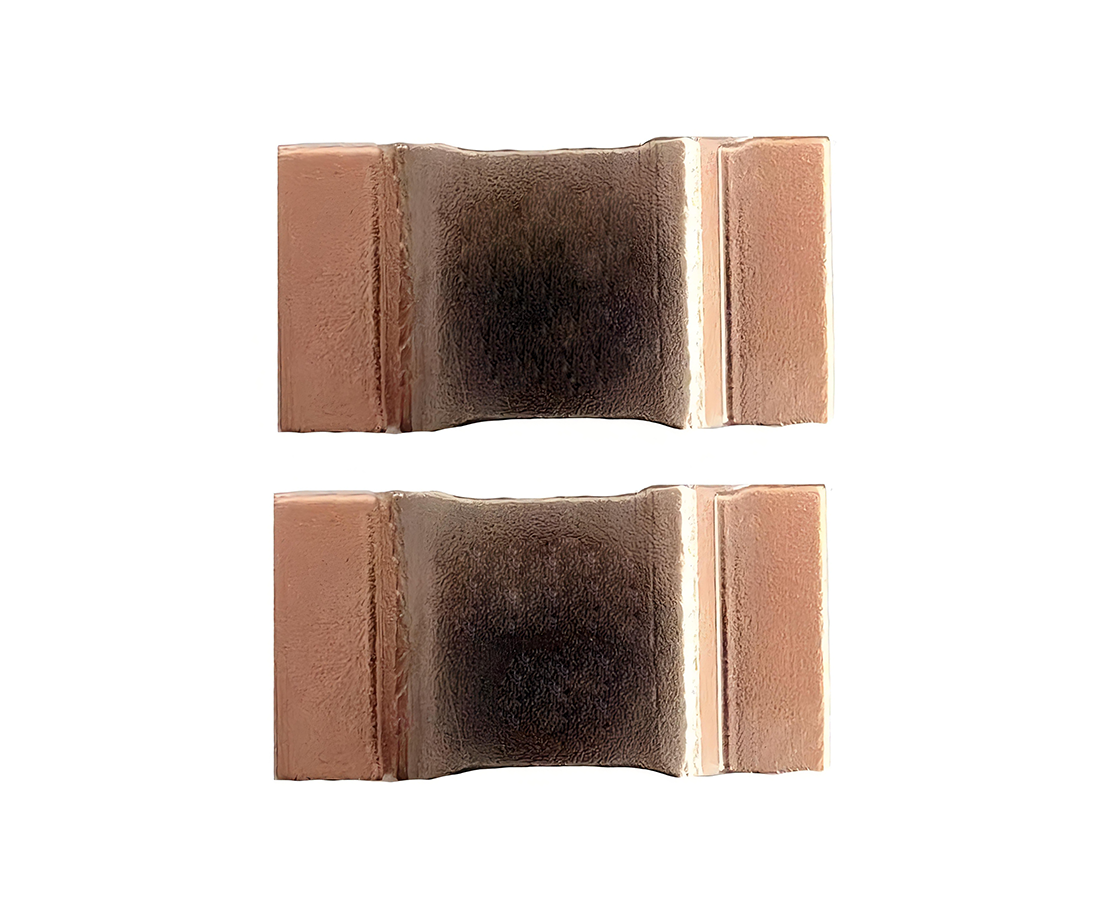

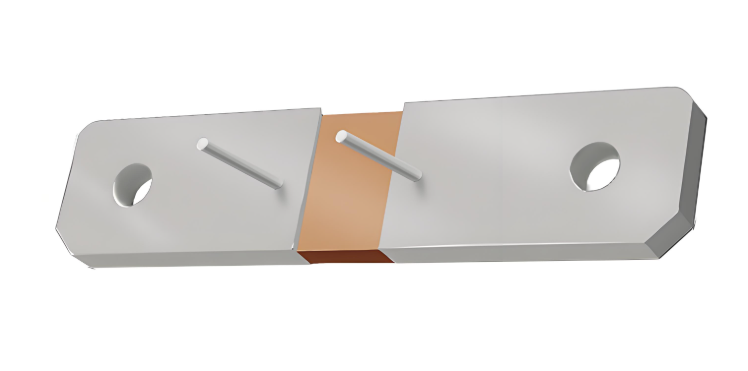

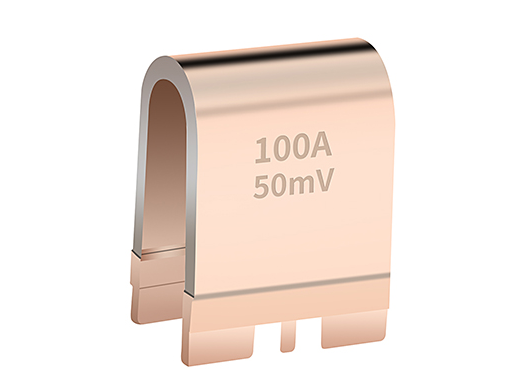

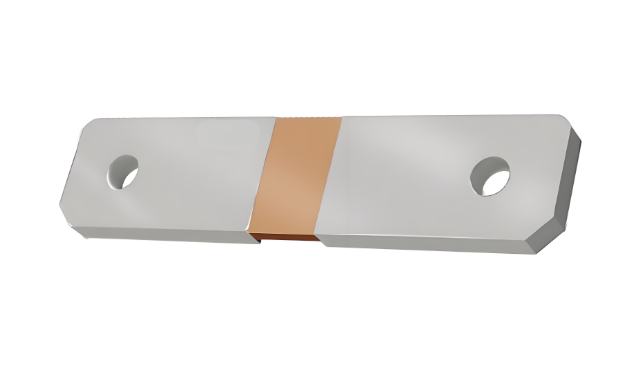

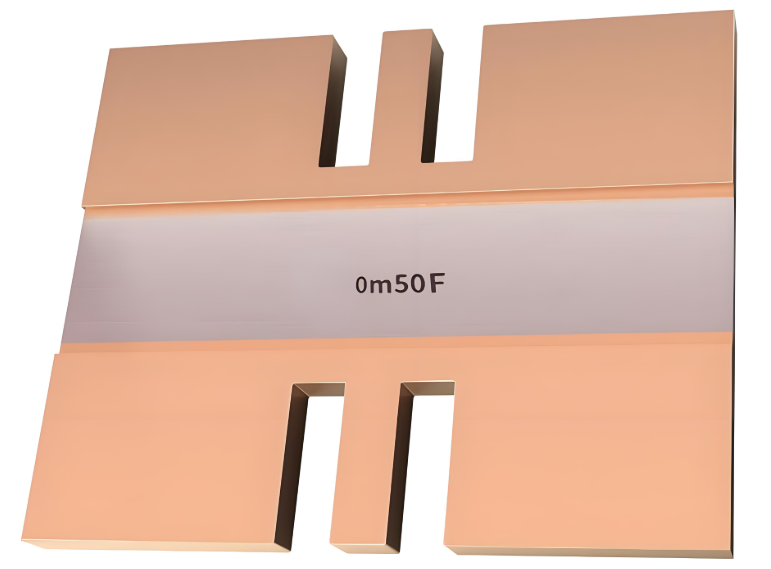

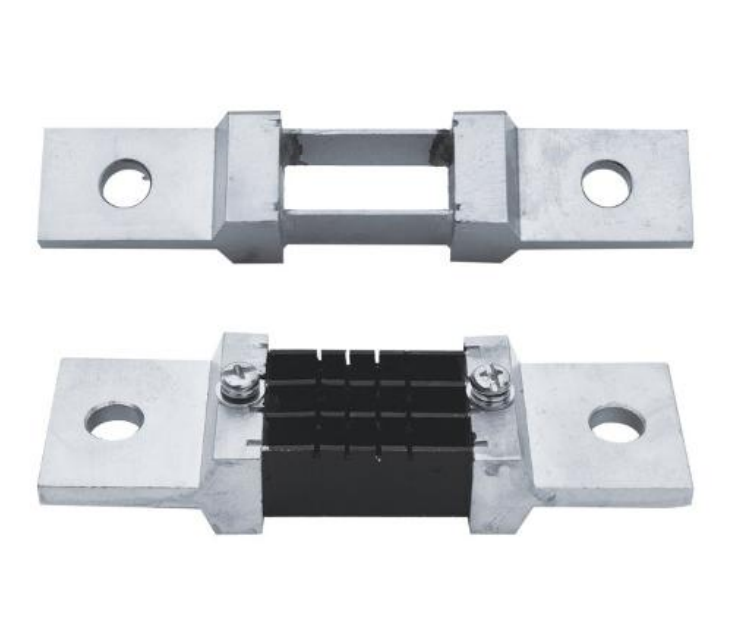

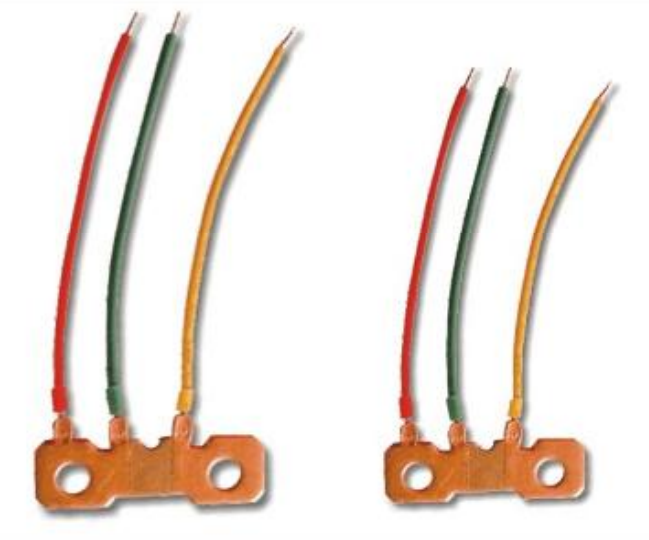

Shunts for High-Current Applications

Heavy-duty current measurement solutions for power systems:

• Current Capacity: 100A to 2000A with<1mV/A sensitivity

• Thermal Design: Aluminum heat sinks with forced-air cooling support

• Voltage Drop: 50mV to 100mV at full rated current

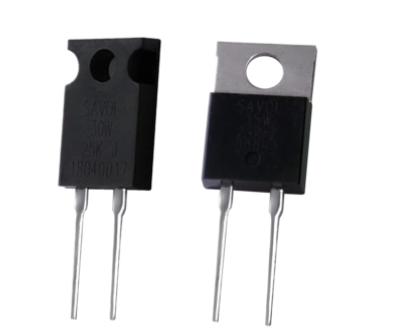

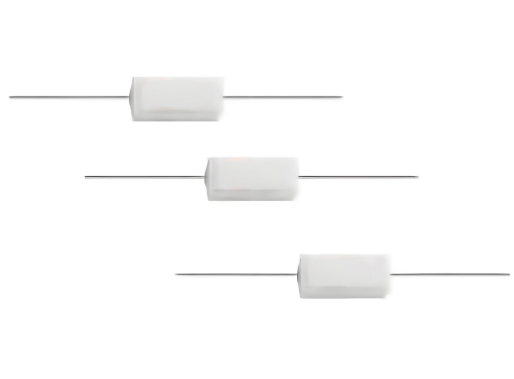

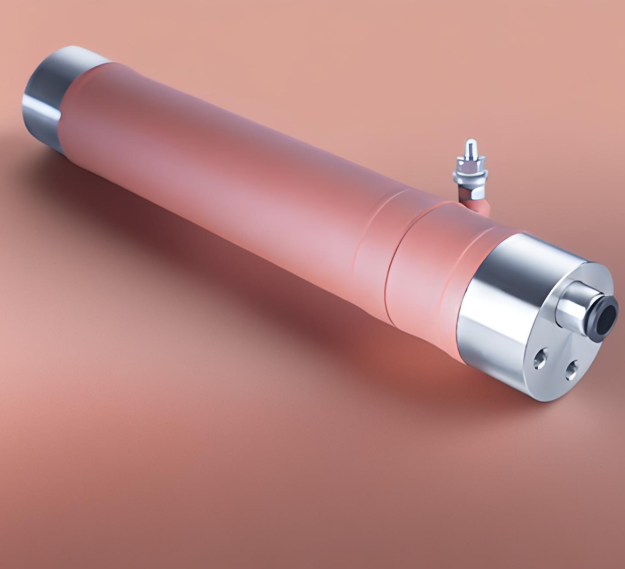

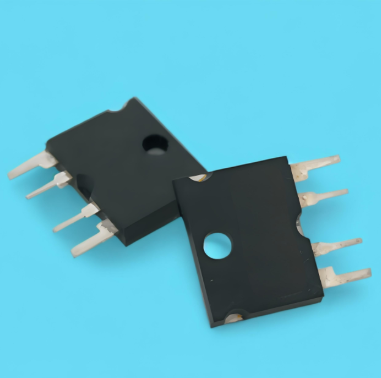

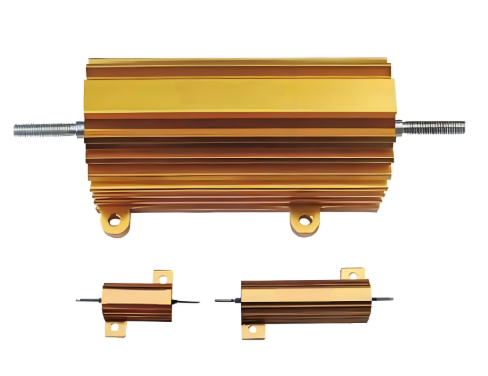

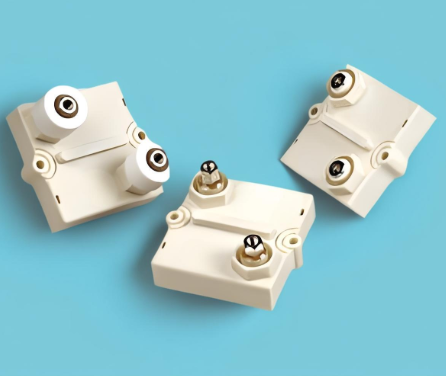

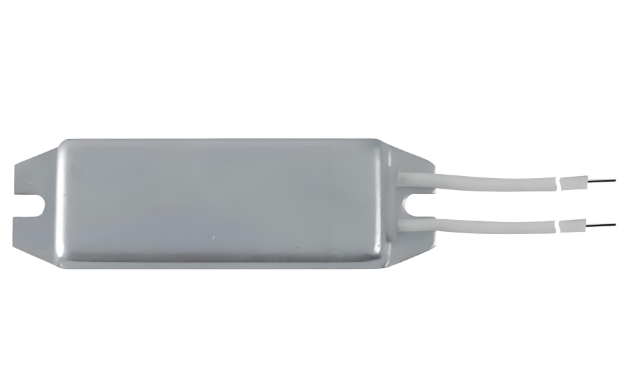

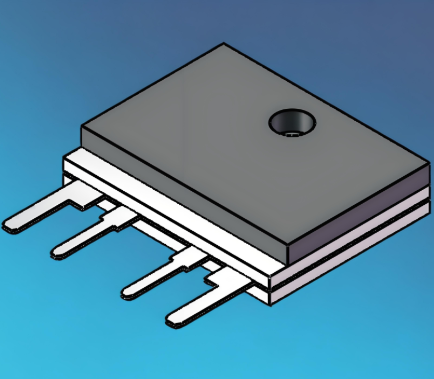

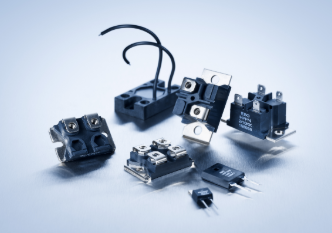

Power Resistors

Energy dissipation components for high-power circuits:

• Power Rating: 5W to 5000W with wirewound or thick film construction

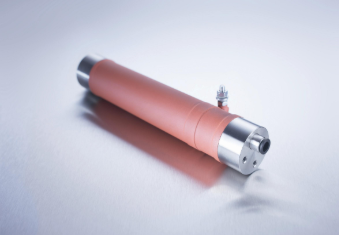

• Cooling Methods: Natural convection, forced air, or liquid cooling

• Protection: UL94 V-0 flame resistance and 2000hr humidity endurance

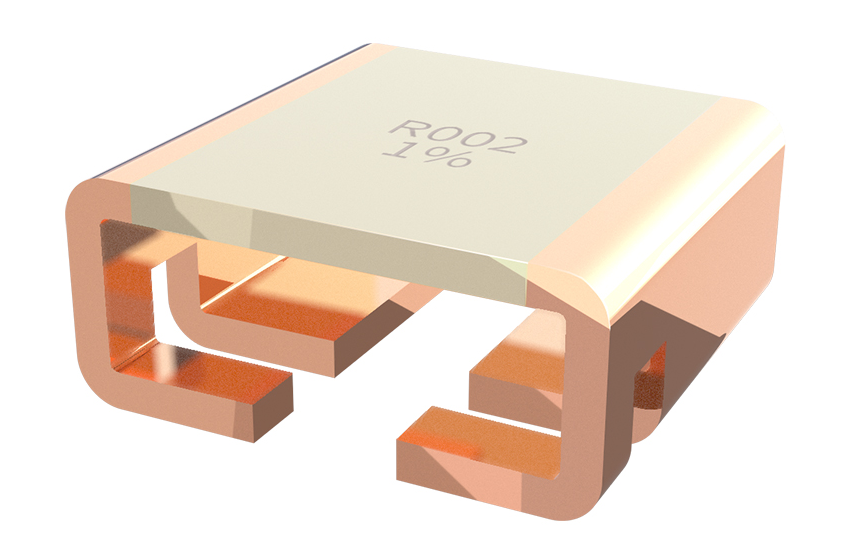

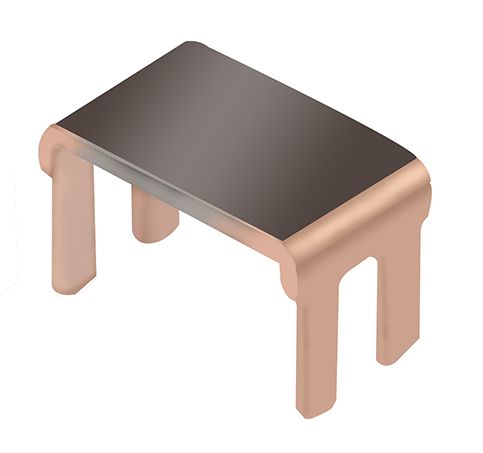

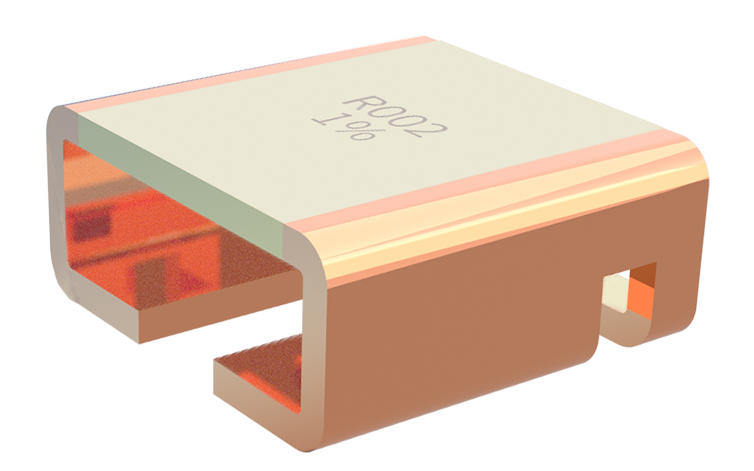

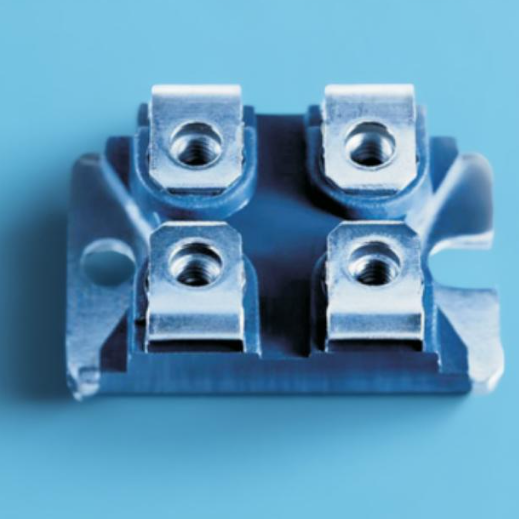

Four-Terminal Shunt Resistors

Kelvin connection devices for precision metrology:

• Accuracy: ±0.05% with separate current/voltage terminals

• Parasitic Elimination:<0.1μΩ lead resistance impact

• Frequency Response: DC-100kHz bandwidth for dynamic measurements

Technology Comparison
