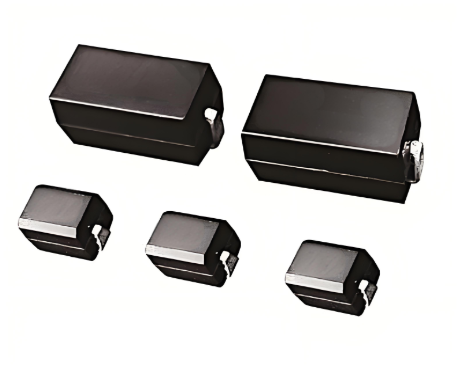

TY Surface Mount Wire-Wound Resistor (SMR)

1. Overview of Surface Mount Resistors

Surface mount resistors (SMD resistors) are passive components designed to limit or regulate current flow      in electronic circuits. Unlike traditional through‐hole resistors, SMD resistors feature compact, flat      packages that are soldered directly onto PCB pads, allowing for higher circuit density and automated assembly.      Key benefits include smaller footprint, improved high‐frequency performance, and lower inductance.

SMD resistors come in various technologies—wire‐wound for high power and pulse capability, metal‐film for      precision and stability, and thick‐film for general‐purpose use. Below, we introduce three specialized families:      a wire‐wound series and two MELF metal‐film series for ultra‐precise applications.

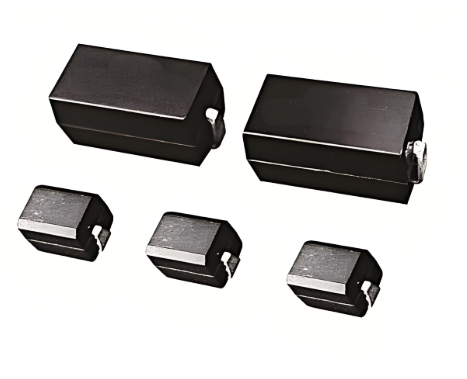

2. RSC Molded‐Type Surface‐Mount Wire‐Wound Resistors

Key Features

• Power Rating: Up to 3 W in compact SMD package

• Tolerance: ±1% (standard) to ±5%

• Temperature Coefficient (TCR): ≤ ±50 ppm/°C

• High pulse‐load capability and excellent overload protection

• Low inductance design for high‐frequency circuits

• Molded epoxy body for enhanced mechanical and moisture resistance

Product Link

       RSC Molded‐Type Surface‐Mount Wire‐Wound Resistors

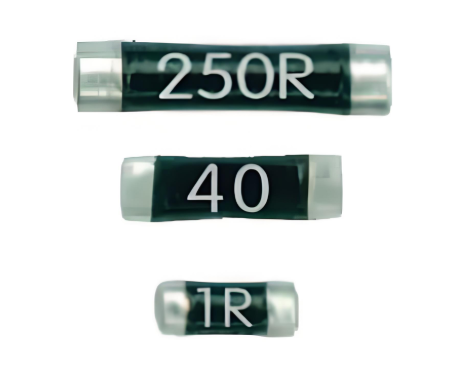

3. MELF3215 High‐Precision Metal‐Film SMD Resistors

Key Features

• Package: 3.2 mm × 1.5 mm cylindrical MELF body

• Power Rating: 1 W

• Tolerance: ±0.1%, ±0.25%

• TCR: ±25 ppm/°C (high‐precision grade)

• Low noise and excellent long‐term stability

• Suitable for thin‐film equivalent performance at lower cost

Product Link

       MELF3215 Series High‐Precision Metal‐Film Surface‐Mount Resistors

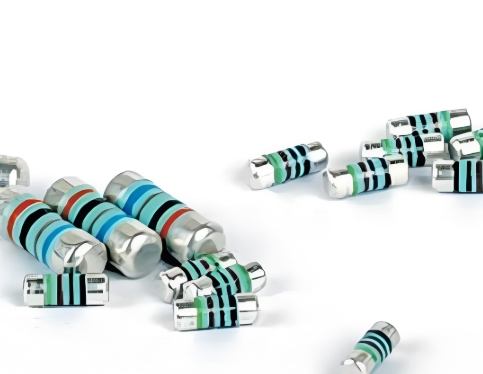

4. MELF0204/0207 Precision Metal‐Film SMD Resistors

Key Features

• Packages:

• 0204 (0.6 mm × 0.4 mm)

• 0207 (0.7 mm × 0.7 mm)

• Power Rating: 0.062 W (0204), 0.1 W (0207)

• Tolerance: ±0.5%, ±1%

• TCR: ±100 ppm/°C

• Excellent solderability and reflow profile compatibility

• Ideal for space‐constrained, precision analog circuits

Product Link

       MELF0204/0207 Precision Metal‐Film Surface‐Mount Resistors

5. Typical Applications

Surface mount resistors find use across a wide range of electronic systems:

• Power supplies and DC–DC converters (wire‐wound types)

• Precision measurement and instrumentation (MELF metal‐film)

• Telecommunications and RF circuits (low‐inductance designs)

• Automotive electronics (high reliability and pulse resistance)

• Consumer electronics and wearable devices (compact, low‐profile packages)

6. How to Choose the Right SMD Resistor

1. Power Rating: Ensure the resistor’s wattage rating exceeds the expected dissipation.

2. Tolerance & TCR: For precision circuits, choose low tolerance and low TCR parts.

3. Package Size: Balance board space constraints against handling and power needs.

4. Environmental Conditions: Consider temperature range, moisture resistance, and vibration.

5. Frequency Performance: For high‑speed or RF designs, opt for low‑inductance wire‑wound or thin/metal‑film parts.
