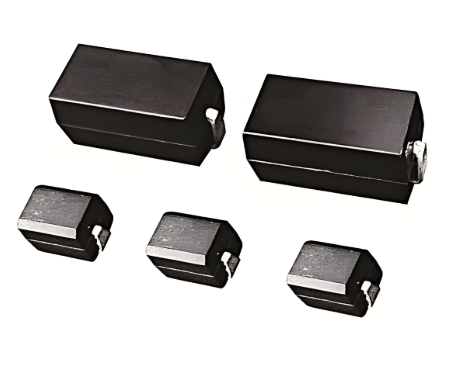

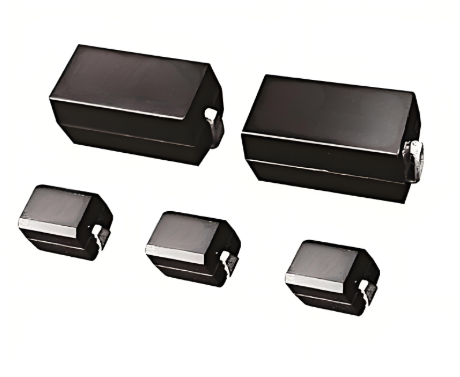

RSC molded - type surface - mount wire - wound resistors

Features

Full - welded structure
Full - moulded structure
SMD (Surface - Mount Device)
Excellent stability

Applications

Mostly used in numerical control machines
Power - supplied circuit
Precision meters and instruments
Used in all kinds of harsh working conditions

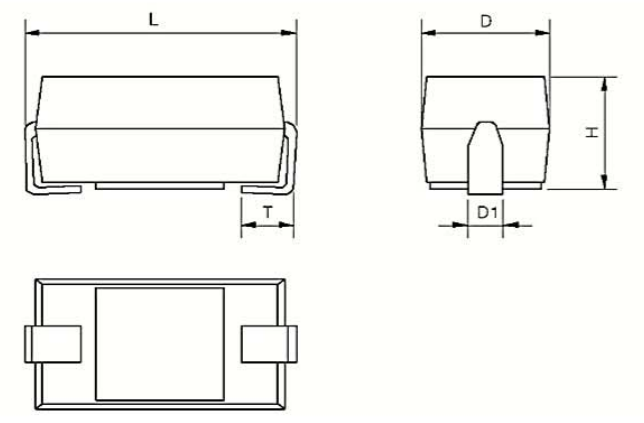

Dimensions (mm)

Type	L	D	H	T	D1
RSC1812	4.5±0.3	3.2±0.2	3.2±0.2	1.0±0.15	1.35±0.25
RSC2513	6.35±0.5	3.45±0.25	3.45±0.25	1.2±0.25	1.37±0.25
RSC4524	11.56±0.5	6.10±0.25	5.74±0.25	1.58±0.25	3.63±0.25

Technical Specifications

Type	Power rating P₇₀(W)	Resistance range	Tolerances	TCR(ppm/°C)	Insulation Voltage
RSC1812	0.5W	0.1 - 10Ω	±2% ±5%	±25 ±50 ±100	500V
RSC2513	1W	0.1 - 100Ω
RSC4524	2W	0.1 - 330Ω

Special specifications can be supplied in consultation with customers.
