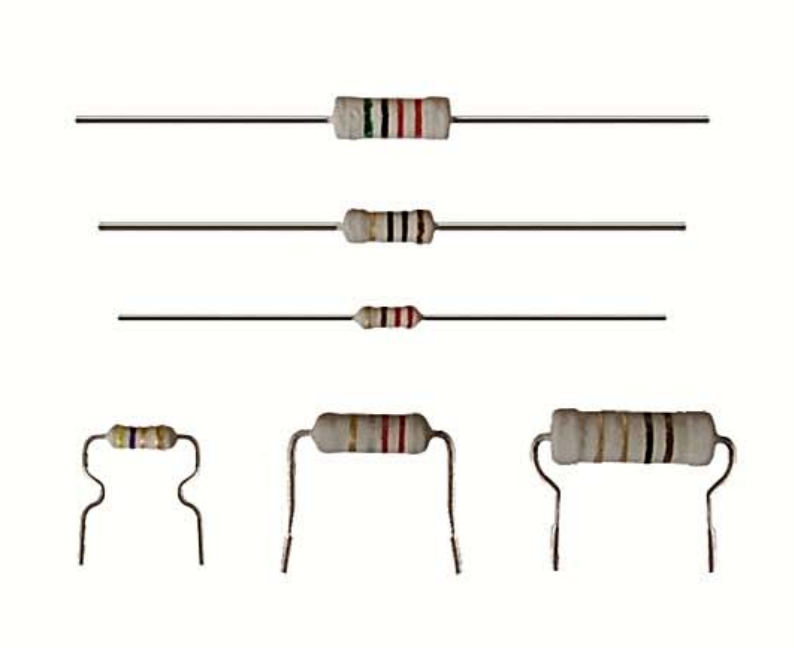

RF10 painted thin-film fuse resistors

Product Features

Using imported grey flame - retardant encapsulating material.
Safe and reliable.
Low surface temperature rise during operation.
Color - code marking.
Available in bulk or tape and lead forming.
Imported grey inflaming retardant cement.
Safe and reliable.
Low temperature rise.
Color code marking.
Bulk or tape and lead forming available.

Applications

Mainly used in colour TVs.
Lighting fixtures.
Switching power supplies and other household appliances.
Mostly used in colour TV.
Lighting fixture.
Switching power supply.

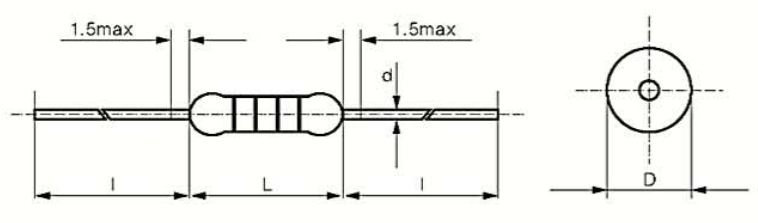

Dimensions (mm)

Type	Lmax	Dmax	l ± 1.0	d ± 0.05
RF10 - 0.25W	7.0	2.5	multirow{4}{*}{25}	0.6
RF10 - 0.5W	10.5	2.9		0.7
RF10 - 1W	14.0	3.9		0.8
RF10 - 2W	17.0	6.6		0.8

Note: Small - size and high - power types can also be made according to customer requirements, with the model being RF10(r).

Technical Specifications

Type	Rated Power	TCR (PPM/°C)	Maximum open voltage	Insulate Voltage (DC or AC peak)	Resistance Range (Ω)	Rating Ambient Temp	Operating Temp Range
RF10 - 0.25W	0.25W	± 350	200V	250V	multirow{4}{*}{0.22 - 1K}	multirow{4}{*}{+70°C}	multirow{4}{*}{-25°C - +125°C}
RF10 - 0.5W	0.5W	± 350	250V	250V
RF10 - 1W	1W	± 350	350V	350V
RF10 - 2W	2W	± 350	350V	350V

Performance Indicators

Test Item	Specifications	Test Methods
Rapid change of temperature	ΔR ≤ ± (1%R + 0.05Ω)	-25°C/125°C, 30min, 5 cycles
Overload	ΔR ≤ ± (1%R + 0.05Ω)	2.5VR, 5S
Pulse overload	ΔR ≤ ± (2%R + 0.05Ω)	2.5VR(AC), 1S(ON), 25S(OFF), 10kcycles
Leaching	ΔR ≤ ± (1%R + 0.05Ω)	350 ± 10°C, 3.5 ± 0.5S
Vibration	ΔR ≤ ± (1%R + 0.05Ω)	10 - 500Hz, 98m/s², 6h
Climatic category	ΔR ≤ ± (5%R + 0.1Ω)	125°C, 16h/55°C, RH 93 ± 3%, 24h/ - 25°C, 2h/8.5kpa, 15 - 35°C, 1h
Endurance at 70°C	ΔR ≤ ± (5%R + 0.1Ω)	70 ± 2°C, PR, 1000h
Damp heat, steady state	ΔR ≤ ± (5%R + 0.1Ω)	40°C, RH93 ± 3%, 21d

Fusing Characteristics

Magnification of power rating	multicolumn{3}{	c	}{Resistance Range (Ω)}
	< 2	2 - 10	> 10
	multicolumn{3}{	c	}{Fusing Time (s) (max)}
12	-	60	30
16	60	30	15
25	30	15	7.5
