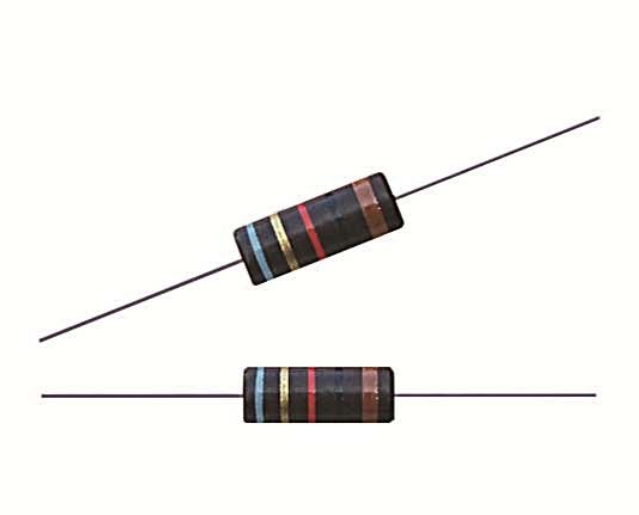

RWF molded wirewound fuse resistors
Product Features
Full - molded construction.
Functions as a normal resistor during normal operation.
Can quickly open the circuit when the voltage in the circuit increases instantaneously.
Applications
Mainly applied in security products.
Instruments and meters.
Protection circuits of electronic devices.

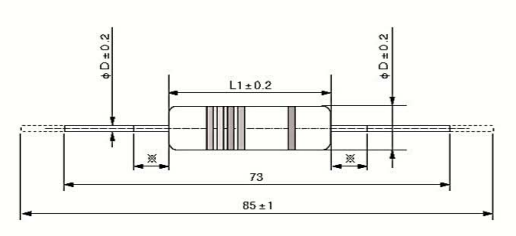

Dimensions (mm)
| Type | L1 ± 0.2 | D ± 0.2 | d ± 0.2 |
|---|---|---|---|
| RWF - 1 | 9.9 | 3.6 | 0.8 |
| RWF - 2 | 14.3 | 5.7 | 0.8 |
Technical Specifications
| Type | Rated Power (W) | Resistance Range | Tolerances | Insulation Voltage | |||
|---|---|---|---|---|---|---|---|
| 25°C | 50°C | 70°C | Min | Max | |||
| RWF - 1 | 1 | 1.0 | 0.75 | 0R1 | 1K | ± 5%, ± 10% | 700V |
| RWF - 2 | 2.0 | 1 | 1.5 | 0R1 | 1K | ± 5%, ± 10% | 1000V |
Performance Indicators
| Test Item | Specifications | Test Method |
|---|---|---|
| Load life | ΔR ≤ ± (5%R ± 0.1Ω) | 70°C, PR, 1000h |
| Damp heat, steady state | ΔR ≤ ± (5%R ± 0.1Ω) | 40°C, RH93 ± 3%, 56d |
| Climatic category | ΔR ≤ ± (5%R ± 0.1Ω) | 275°C, 16h/55°C, RH93 ± 3%, 24h/ - 55°C, 2h/8.5kpa, 15 - 35°C, 1h |
| Leaching | ΔR ≤ ± (1%R + 0.05Ω) | 350 ± 10°C, 3.5 ± 0.5S |
| Solderability | ≥ 95% | 235 ± 5°C, 2 ± 0.5S |
WHATSAPP
LINE
WECHAT
SKYPE
In addition to RWF molded wirewound fuse resistors, we also focus on the following resistors:
-
RWF molded wirewound fuse resistors
-

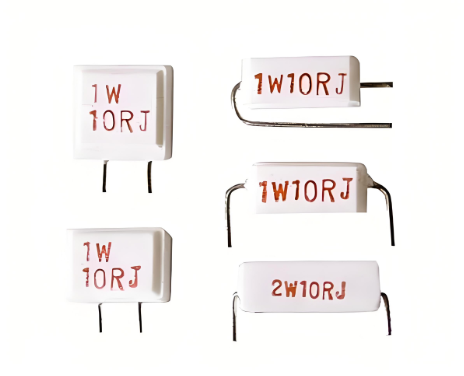

RXG21 (A/B/C/D) lightning surge-resistant wirewound resistors
-
REW600 water cooled power resistors wirewound, aluminum
-

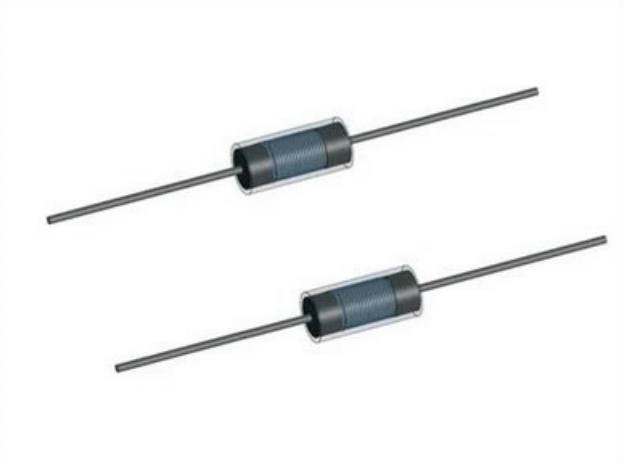

RFX21-D semi-short-circuit surge-resistant wirewound resistors
-

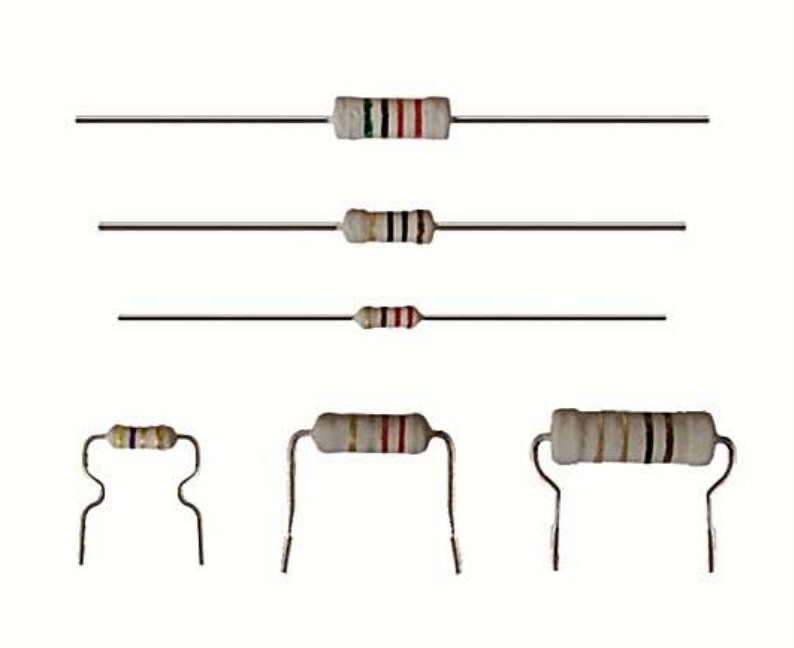

RF10 painted thin-film fuse resistors
-

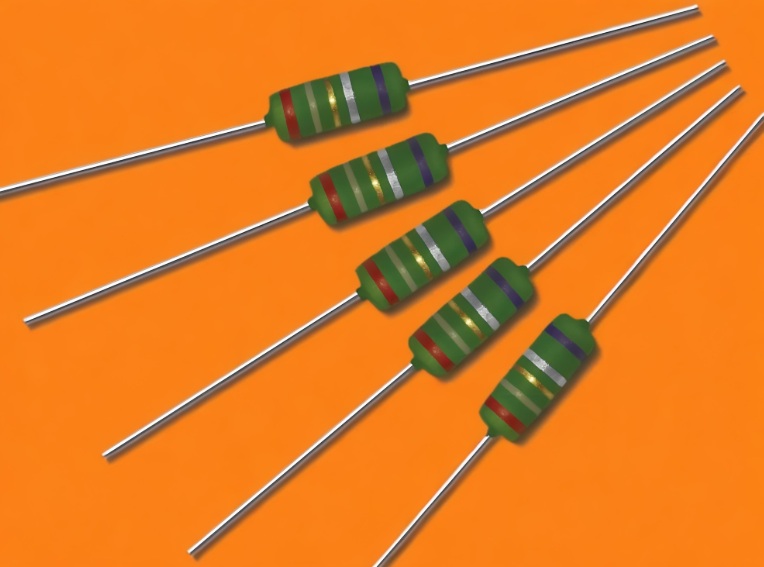

Anti-Surge Wire Wound Fast-Fuse Resistors
-

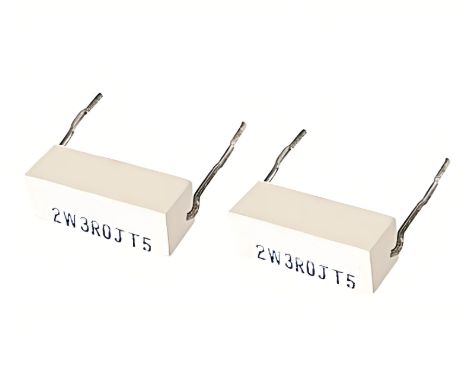

RF11 porcelain-cased thin-film fuse resistors
-
Anti-Surge Wire Wound Fast-Fuse MELF Resistors
-

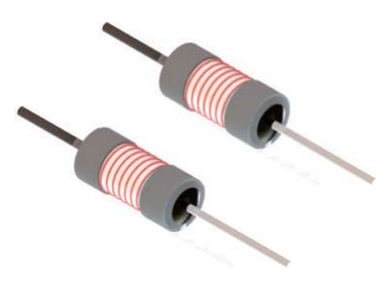

RXF21-TE power-type full-short-circuit temperature fuse resistors
-
RSC molded - type surface - mount wire - wound resistors
-

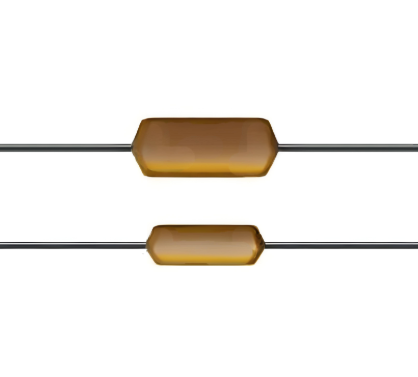

TY Precision Wirewound Resistor
-

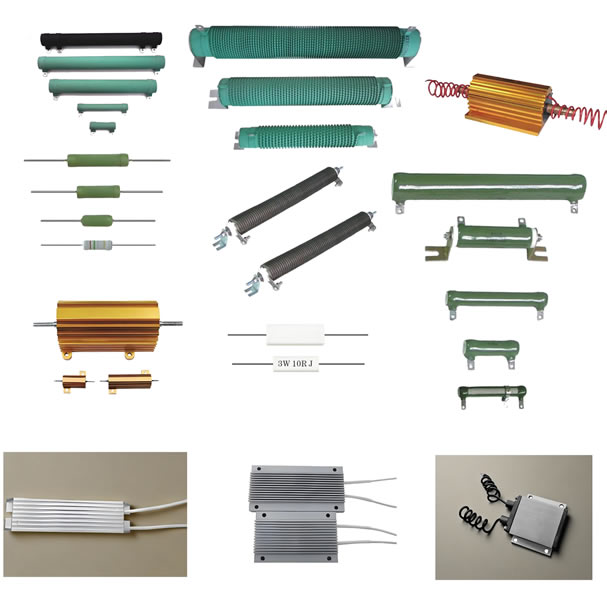

TY Power Wirewound Resistor
-

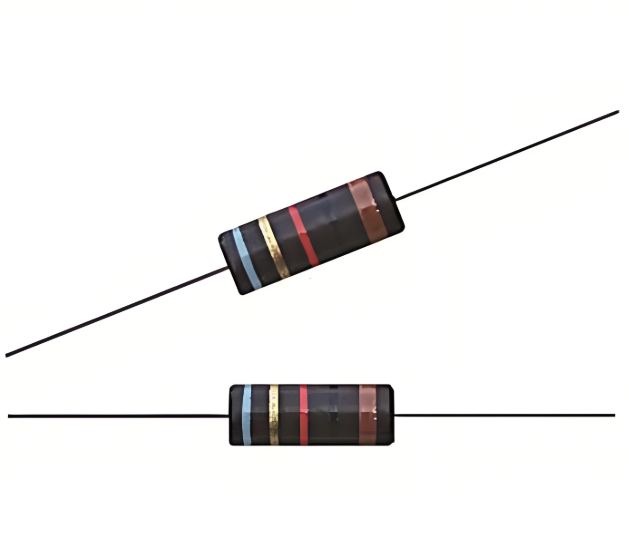

TY Fuse Resistor
-

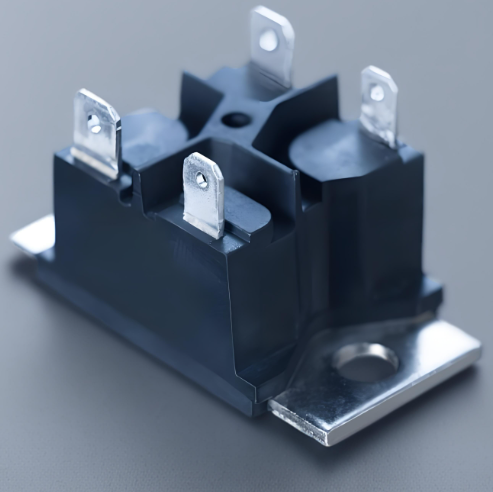

150W Four-terminal Ultra-long Creepage Distance Structure with French Blue Baseplate, Non-inductive Molded Power Resistor
-
180W Four-terminal Ultra-long Creepage Distance Structure with French Blue Baseplate, Non-inductive Molded Power Resistor
-

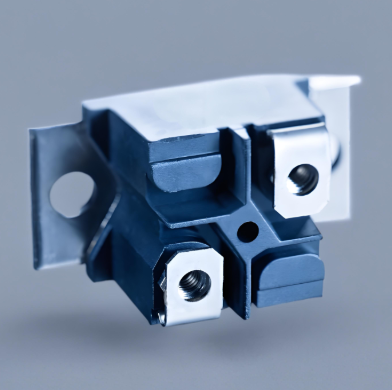

150W Two-terminal Ultra-long Creepage Distance Structure with French Blue Baseplate, Non-inductive Molded Power Resistor
-

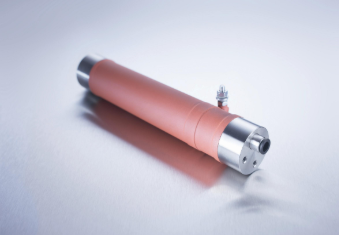

Liquid-cooled resistors High-power Resistors
-

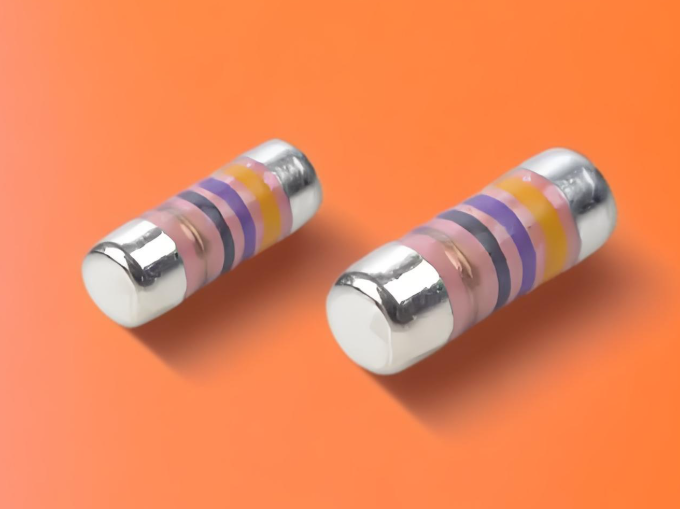

Stable power MELF resistors featuring small tolerance, low temperature coefficient, and high power SMD resistors
-
High-Power Water-Cooled Resistors High-Power Water-Cooled Single Resistors and Voltage Dividers up to 1700W
-

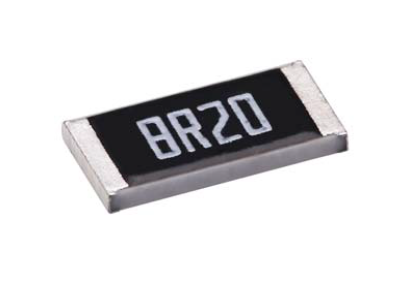

Low TCR Resistors
-

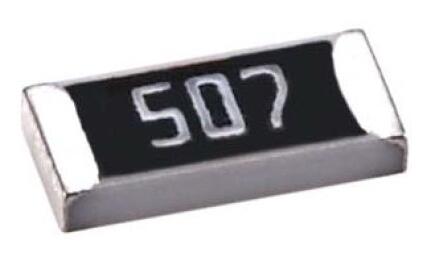

High Value Resistors
-
Precision Resistors
-

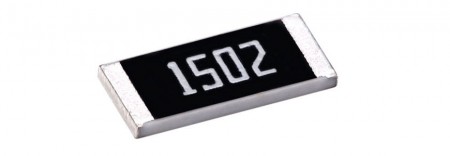

Anti-Sulfur Resistors
-

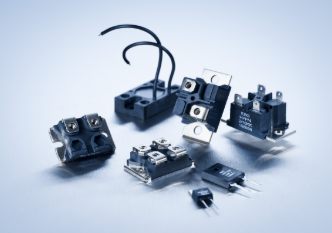

Power Resistors up to 600W
