TYRM Precision Thin Film Chip Resistor

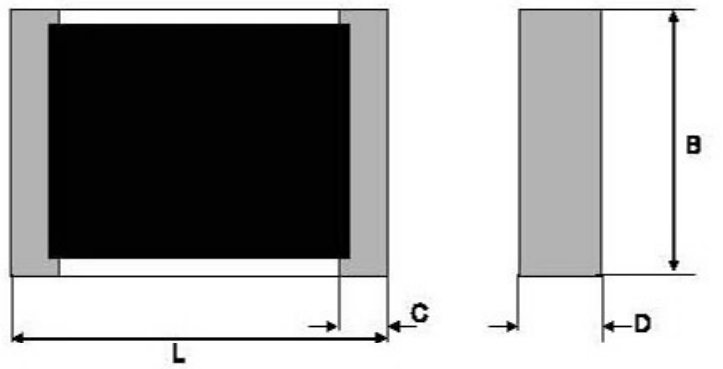

Dimensions

Model	L (mm)	B (mm)	D (mm)	C (mm)
0402	1.00 ± 0.05	0.50 ± 0.05	0.30 ± 0.05	0.20 ± 0.10
0603	1.60 ± 0.20	0.80 ± 0.13	0.40 ± 0.15	0.30 ± 0.20
0805	2.00 ± 0.20	1.25 ± 0.13	0.50 ± 0.15	0.40 ± 0.20
1206	3.20 ± 0.20	1.60 ± 0.13	0.50 ± 0.15	0.50 ± 0.20
1210	3.20 ± 0.20	2.50 ± 0.15	0.50 ± 0.15	0.50 ± 0.20

Characteristic	Details
Technology	Thin Film Technology
Protection	Resin-passivated
Precision	High Precision (0.05%)
Noise	Extremely Low Noise

Application Area

products are leadless with nickel and pure tin plating, ensuring resistance stability and solder joint reliability. They are small in size, lightweight, and offer superior performance and reliability. Widely used in smart meters, testing equipment, industrial control instruments, and other instrumentation.

Technical Specifications

Model	Rated Power at 70℃ (W)	Max Working Voltage (V)	Resistance Range (Ω)
0402	0.065	25	10R ~ 50K
0603	0.10	50	10R ~ 260K
0805	0.15	50	10R ~ 510K
1206	0.25	100	10R ~ 1M
1210	0.50	150	10R ~ 1M

Parameter	Details
Tolerance Range	W(±0.05%)W(±0.05%), B(±0.1%),C(±0.25%),D(±0.5%),F(±1.0%)B(±0.1%),C(±0.25%),D(±0.5%),F(±1.0%)
Temperature Coefficient (10^-7/K)	C6(±10),C5(±15),C4(±20),C3(±25),C2(±50)C6(±10),C5(±15),C4(±20),C3(±25),C2(±50)

Performance Characteristics

Test Items	Standards	TestMethod
Short Time Overload	2.5 times rated voltage, not exceeding 2 times component limit voltage for 5s	△R ≤ ±(0.10%R + 0.01Ω)
Temperature Shock	-65℃ to 150℃, 5 cycles	△R ≤ ±(0.10%R + 0.01Ω)
Low Temp. Operation	-65℃, rated load voltage for 45min	△R ≤ ±(0.10%R + 0.01Ω)
Resistance to Dry Heat	150℃ for 100h	△R ≤ ±(0.10%R + 0.01Ω)
Resistance to Solder	245℃ ± 5℃, 60 ± 5s	△R ≤ ±(0.10%R + 0.01Ω)
Resistance to Moisture	10 cycles	△R ≤ ±(0.10%R + 0.01Ω)
Load Life	70℃, rated load, 2000h	△R ≤ ±(0.10%R + 0.01Ω)
