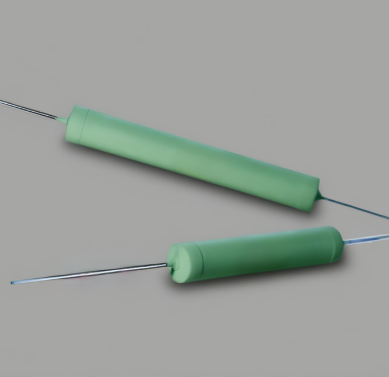

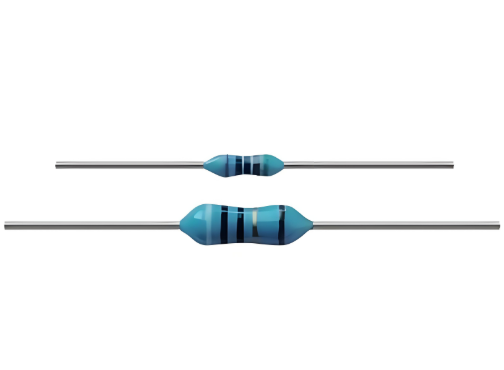

Ultra-High Precision Resistor Overall stability ±5 ppm/°C from +25°C to +65°C (incl. VCR & TCR)

We have developed new material combinations and processing methods, which make it possible to achieve a Thermal Coefficient of Resistance (TCR) as low as ±5ppm while maintaining the minimum Voltage Coefficient of Resistance (VCR).

Features:
■ Operating voltage up to 10kV
■ Non - conductive design
■ RoHS - compliant.

Technical Specifications

1. Resistance value

• 100 MΩ ≤ Resistance value ≤ 250 MΩ (other values available upon special request)

2. Resistance tolerance

• ±1 % standard (lower tolerance available upon special request for limited ohmic values)

3. Temperature coefficient

• ±5 ppm/°C from +25°C to +65°C in 10 - degree steps (including VCR & TCR referenced to 25°C)

4. Maximum working voltage

• 10 kV DC

5. Dielectric strength

• ≤ 10 kV DC based on the coating

6. Insulation resistance

• 10 GΩ min. at 1,000 V DC

7. Power rating

• Up to 1 W

8. Load life

• 1,000 hours at rated power at 70°C, ΔR 0.20 % max.

9. Load life stability

• 0.20 % per 1,000 hours at 70°C

10. Moisture resistance

• MIL - Std - 202, method 106, ΔR 0.40 % max.

11. Thermal shock

• MIL - Std - 202, method 107, Cond. A, ΔR 0.20 % max.

12. Encapsulation

• Standard coating: silicone conformal

• We recommend 2xpolyimide coating for use in oil and potted applications (ask for details)

13. Lead material

• OFHC copper, tin - plated

14. Weight

• Depending on model no. (ask for details)
