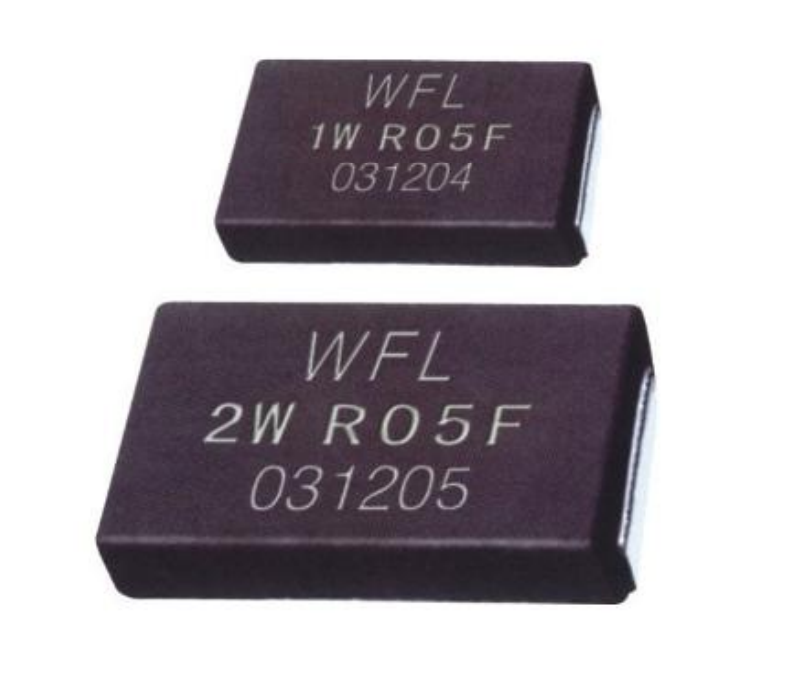

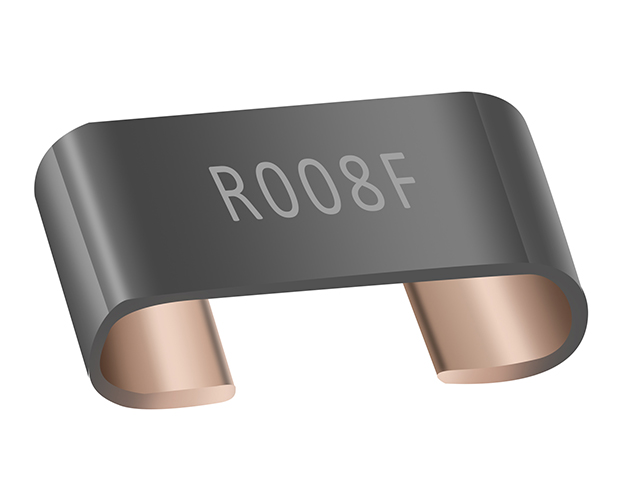

WFL Plastic-Encased Precision Metal Film Strip Chip Shunt

Features:

Resistive element made of E - Beam welded Nickel - chrome or manganin
High strength, stability, reliability, and excellent solderability
Low thermal EMF, very low inductance (0.5nH to 5nH)
Molded high - temperature encapsulation
Proprietary processing technique to produce extremely low resistance values
WFL5 has an improved heat - treatment capability in design

Applications:

Ideal for functional power supplies
Instruments
Circuit applications including current - sensing sampling and power amplifiers, etc.

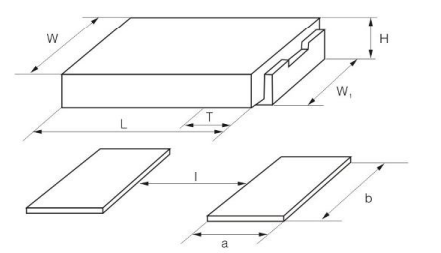

Dimensions (mm):

Type	L	H	T	W	W1
WFL2, WFL3	11.56 ± 0.813	2.41 ± 0.127	2.54 ± 0.254	6.98 ± 0.127	5.46 ± 0.127

Type	a	b	l
WFL2, WFL3	3.94	5.84	5.21

Type	Dimensions	Power rating (W)	Resistance range (Ω)		TCR (10⁻⁶/K)	Insulation Voltage (VAC)	Insulation Resistance (Ω)	Weight/1000pcs (g)
			± 0.5%	± 1%
WFL2	4527	2.0	0.01 - 0.05	0.001 - 0.05	± 50	> 500	> 10⁹	440
WFL3	4527	3.0	0.01 - 0.05	0.001 - 0.05	± 100	> 500	> 10⁹	440

Performance:

Test item	Specifications	Test Methods
Thermal Shock	ΔR ≤ ±(0.5% + 0.0005Ω)	- 65°C / 150°C, 15min, 1000 cycles
Over Load	WFL2: ΔR ≤ ±(0.5% + 0.0005Ω) WFL3: ΔR ≤ ±(2% + 0.0005Ω)	WFL2: 5Pₙ, 5S WFL3: 4Pₙ, 5S
Low Temperature Storage	ΔR ≤ ±(0.5% + 0.0005Ω)	- 65°C, 24h
High Temperature Storage	ΔR ≤ ±(1.0% + 0.0005Ω)	275°C, 1000h
Damp heat, Steady state	ΔR ≤ ±(0.5% + 0.0005Ω)	40°C, RH93 ± 3%, 0.1Pₙ, 1000h
Mechanical Shock	ΔR ≤ ±(0.5% + 0.0005Ω)	100g, 6ms, 5 cycles
Vibration	ΔR ≤ ±(0.5% + 0.0005Ω)	10 - 2000HZ, 12h
Load Life	WFL2: ΔR ≤ ±(1.0% + 0.0005Ω) WFL3: ΔR ≤ ±(2.0% + 0.0005Ω)	70°C, Pₙ, 1000h
Leaching	ΔR ≤ ±(0.5% + 0.0005Ω)	+ 260°C, 10S
