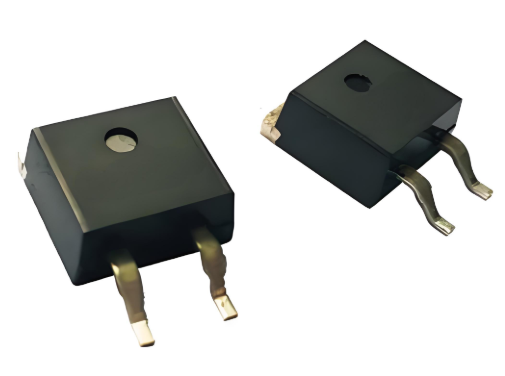

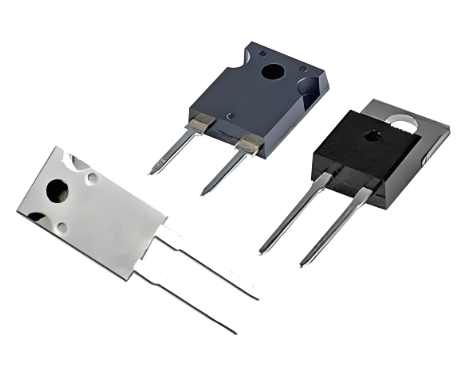

TYRTP 35W~100W Power Thick - Film Resistor

Characteristics

0.5% accuracy, non - inductance design
High power, wide resistance value
Easy mounting
Two different values of resistors in one case

Applications

Meters and instruments
All kinds of electrical devices

Technical Specifications

Type	Power (W) (25°C)	Thermal resistance (°C/W)	Resistance Range	Tolerance	TCR (10⁻⁶/K)	Max Working Voltage (V)	Dielectric Strength
TYRTP35	35	4.5	0.1Ω - 1Ω	±5%; ±10%	±500 ±250	350V	1800VAC
TYRTP50	50	2.5	1Ω - 10Ω	±5%; ±10%		450V	1500VAC
TYRTP100	100	1.5	10Ω - 1MΩ	±1%; ±5%	±50 ±100	700V	1800VAC

Performance

Test Item	Specifications	Test Methods
Short Time Overload	ΔR ≤ ±(0.25%R + 0.05Ω)	2.5VR, 5s
Rapid temperature change	ΔR ≤ ±(0.25%R + 0.05Ω)	- 55°C, 30min/125°C, 30min, 5 cycles
Load life	ΔR ≤ ±(1%R + 0.05Ω)	15°C - 351, PR, 1000h
Humidity(steady states)	ΔR ≤ ±(1%R + 0.05Ω)	40°C, RH93 ± 3%, 56d
Temperature cycling	ΔR ≤ ±(1%R + 0.05Ω)	125°C, 16h/55°C, RH93 ± 3%, 24h/ - 55V, 2h/15 - 35°C, 8.5KPa, 1h
