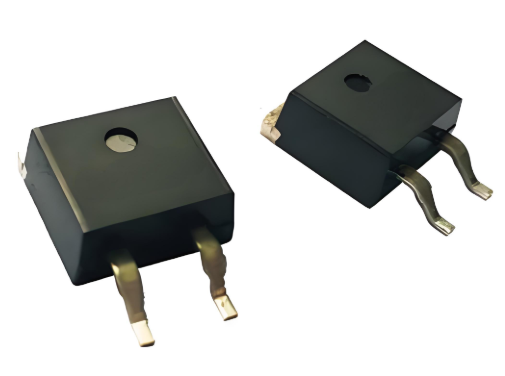

TYRTP35A 35W Power Thick - Film Resistor

Characteristics

0.5% accuracy
High power rating
Non - inductive

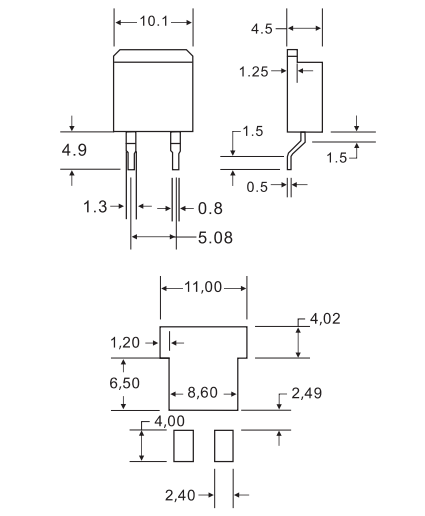

To - 263 standard package
Wide ohmic value range
Easy mounting

Application Area

Automotive electronics, induction heating, power supply equipment, medical devices, wind and solar power generation, and other power electronics industries

Type TYRTP35A

Parameter	Value
Power rating (25°C)	35W
Thermal resistance	4.5°C/W
Resistance value range	0.1Ω - 1MΩ
Tolerance	±0.5%; ±1%; ±5%
Temperature Coefficient TCR	±100ppm/°C; ±250ppm/°C
MAX. Working voltage	350V
Dielectric Strength	1,800VAC
Temperature range	- 55°C - 125°C
Climatic category	55/125/56
Weight	1.6g Max

Special specifications can be supplied in consultation with customers.
The condition of the above power is that a heatsink is needed. If there are no heatsinks, the power is only 2.5W.

Technical Data _ General

TEST ITEM	SPECIFICATIONS	TEST METHOD (GB/T5729 - 2003 IEC60115 - 1: 2001)
Short time overload	1.5 times rated power, 10s ΔR≤ ± (0.25%R + 0.05Ω)	4.13
Rapid temperature change	ΔR≤ ± (0.25%R + 0.05Ω)	4.19
Temperature cycling	ΔR≤ ± (1%R + 0.05Ω)	4.23
Humidity (steady States)	ΔR≤ ± (1%R + 0.05Ω)	4.24
Load life	ΔR≤ ± (1%R + 0.05Ω)	4.25.2
