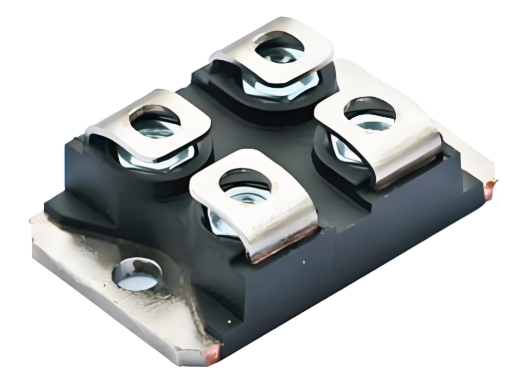

TYRTP200 200W Power Thick - Film Resistor

Characteristics

0.5% accuracy
High power rating
Non - inductive
Wide ohmic value range
Easy mounting
3 different resistors in 1 module available
4 Terminals available

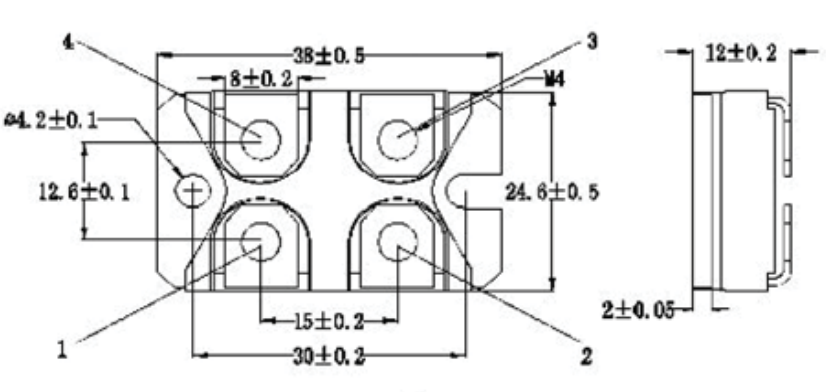

SOT - 227 standard package

Application Area

Automotive electrical engineering, capacitor voltage equalization, energy absorption, power load, high - frequency RC absorption, induction heating, and other power electronics industries

Type TYRTP200

Parameter	Value
Resistance value range	0.1Ω - 1MΩ
Tolerance	±0.5%; ±1%; ±5%
Temperature Coefficient TCR	±50ppm/°C; ±100ppm/°C; ±250ppm/°C
Max. working voltage	500V
Dielectric Strength	4000VDC
Temperature range	- 55°C - 150°C
Weight	30g Max

Special specifications can be supplied in consultation with customers.
The condition of the above power is needed to mount a heatsink. If there are no heatsinks, the power is only 5W.

Technical Data - General

TEST ITEM	SPECIFICATIONS	TEST METHOD (GB/T5729 - 2003 IEC60115 - 1: 2001)
Short time overload	1.5 times rated power, 10s ΔR≤ ± (0.25%R + 0.05Ω)	4.13
Rapid temperature change	ΔR≤ ± (0.25%R + 0.05Ω)	4.19
Temperature cycling	ΔR≤ ± (1%R + 0.05Ω)	4.23
Humidity (steady States)	ΔR≤ ± (1%R + 0.05Ω)	4.24
Load life	ΔR≤ ± (1%R + 0.05Ω)	4.25.2
