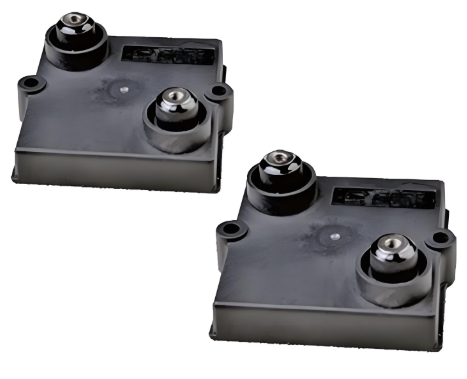

TYRHP600 600W Power Thick - Film Resistor

Non - inductive, wide resistance range
High power (when the temperature of the floor center is less than 85°C, the power is 600W)
High voltage withstand: 12KV

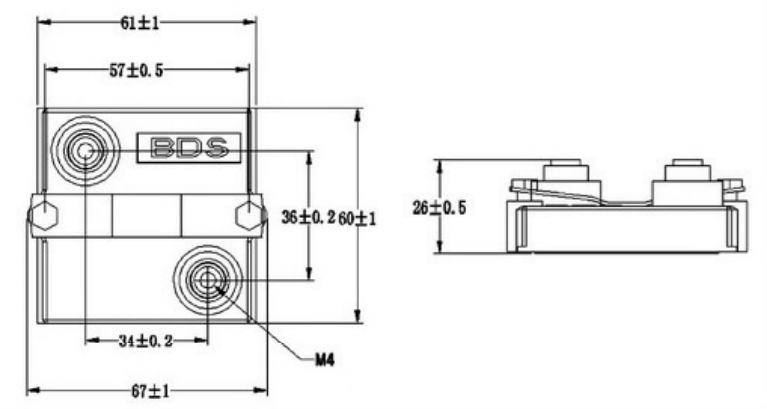

Contact terminal: M4 screw, Max. torque 2Nm
Resistor installation: M4 screw, Max. torque 2Nm
Inductance < 80nH
Insulation resistance: 500V, 10⁴MΩ
Voltage power supply control equipment
Motor controlling
Shift drive, Frequency Converter
Robot system

Technical Specifications

Type	Rating power (85°C)	Resistance range	Temperature Coefficient TCR (10⁻⁶/K)	Precision	Max work Voltage	Voltage Withstanding	Working temp
TYRHP	600W	R < 1Ω	±500	10%	5KV	6KV 12KV	- 55°C - + 155°C
		1Ω < R < 10Ω	±300	5%
		10Ω < R	±150	5%

The condition of the above power is needed to mount a heatsink.
Special specifications can be supplied in consultation with customers.

Performance

TEST ITEM	SPECIFICATIONS	TEST METHOD (GB/T5729 - 2003 IEC60115 - 1:2001)
Short time overload	1000W, 10s ΔR≤ ± (0.3%R + 0.05Ω)	4.13
Rapid temperature change	ΔR≤ ± (0.5%R + 0.05Ω)	4.19
Temperature cycling	ΔR≤ ± (1%R + 0.05Ω)	4.23
Humidity (steady States)	ΔR≤ ± (0.5%R + 0.05Ω)	4.24
Load life	ΔR≤ ± (0.5%R + 0.05Ω)	4.25.2
