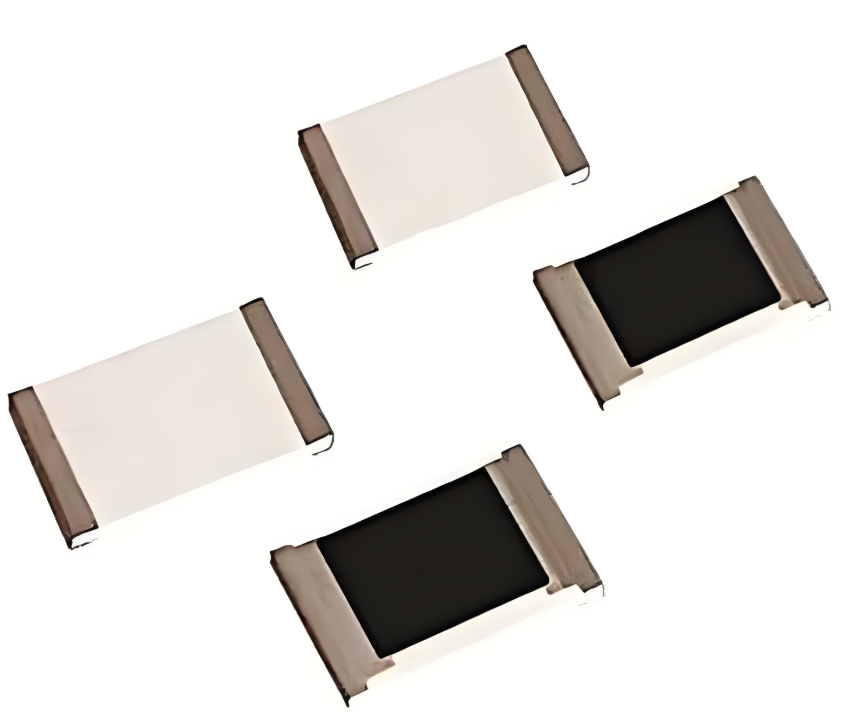

TYCRW Power Thick Film Resistor

Features


  • Chip resistors in thick film

  • Contact areas: Nickel - barrier/tinned

  • RF - versions with air - abrasive trimming

  • Improved pulse power rating untrimmed

Applications


  • Computers

  • Telecom and wireless

  • Meters and instruments

  • Electrical devices



TypeL (mm)B (mm)D (mm)C (mm)
12103.2 +0.2 -0.052.5 +0.2 -0.050.5 +0.2 -0.10.8 ±0.2
12163.2 +0.2 -0.054.1 +0.2 -0.050.5 +0.2 -0.10.8 +0.2
20105.1 +0.2 -0.052.5 +0.2 -0.050.6 +0.2 -0.11.2 +0.2
20405.1 +0.2 -0.0510.2 +0.2 -0.050.6 +0.2 -0.11.2 +0.2
25126.3 +0.2 -0.053.5 +0.2 -0.050.6 +0.2 -0.10.9 +0.2
402010.2 +0.25.1 +0.20.6 +0.2 -0.10.9 +0.2

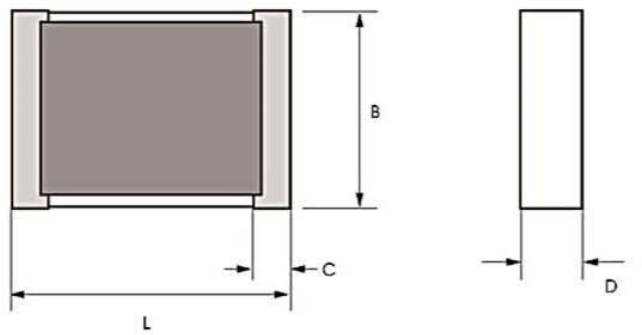

Note: L = Length, B = Width, D = Thickness, C = Width of wraparound (in mm)



TypePower rating  (W)Working voltage (V)Resistance ranges/Tolerances/TCR (PPM/°C)


trimmeduntrimmed0.1R - 1R1R - 100R100R - 100K100K - 100M
12100.35200600TC250
5/10/20%		TC100/250
1/.../20%		TC50/100
1/.../20%		TC50/100
1/.../20%
12160.5200600TC250
5/10/20%		TC100/250
1/.../20%		TC50/100
1/.../20%		TC50/100
1/.../20%
20100.5250900TC250
5/10/20%		TC100/250
1/.../20%		TC50/100
1/.../20%		TC25/50/100
1/.../20%
20401.5250900TC250
5/10/20%		TC100/250
1/.../20%		TC50/100
1/.../20%		TC25/50/100
1/.../20%
2512(M)1.0300(1000)1200(2000)TC250
5/10/20%		TC100/250
1/.../20%		TC50/100
0.5/.../20%		TC25/50/100
1/.../20%
4020(M)1.5500(4000)1500(6000)TC250
5/10/20%		TC100/250
1/.../20%		TC50/100
0.5/.../20%		TC25/50/100
1/.../20%

Information CategoryDetails
Temperature range- 55°C - 155°C
Climatic category (acc. to IEC 60068)55/155/56
Solderability (acc. IEC 60068 - 2 - 58)235°C, 2s
Max. Soldering temperature (acc. IEC 60068 - 2 - 58)260°C, 10s
Long - term stability (10R - 100M)Storage 125°C/1000h: < 0.5%; Storage 155°C/1000h: < 1%; Load /70°C/1000h: < 1%; Short - term overload: < 0.25%; Damp heat(56d/40°C/96%): < 0.5%
Long - term stability (<10R)Storage 125°C/1000h: < 1%; Storage 155°C/1000h: < 2%; Load /70°C/1000h: < 2%; Short - term overload: < 0.5%; Damp heat(56d/40°C/96%): < 1%
