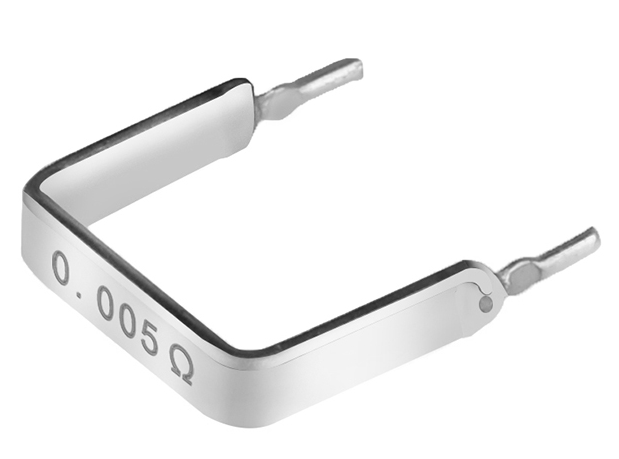

High-precision solder tab sampling resistor

Features	Applications
1-7 watts	Current Sensing
Tolerance ±5%, ±2%, and ±1%	Drive Technology
TCR down to ±40ppm/°C	Power Electronics
Low Inductance	Home Appliances
Excellent Solderability	Automotive Electronics
RoHS Compliant	Communication Systems
Customizable

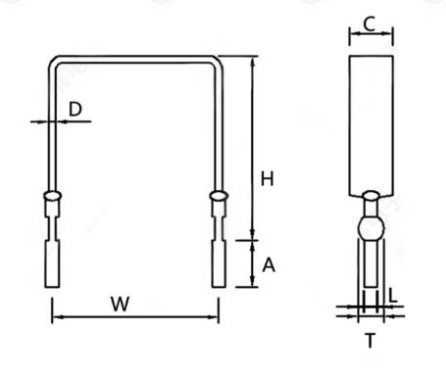

Dimensions

C/mm	W/mm	H/mm	A/mm	L/mm	T/mm
2.4~3.5	10~30	7.5~30	3.5±0.5	1.0±0.1	1.5±0.2

Ordering Information

Please provide:Span "W"

Height range "H"
Rated current or rated power height range

Thickness /mm	Overcurrent /A	Material	TCR /ppm/°C	10 mΩ	15 mΩ	20 mΩ	25 mΩ	30 mΩ
				Standard Span (mm) and Resistance Range (mΩ)
1.3×3.5	30	Constantan	±40	2.5~7	2.8~7.6	3.6~8.4	4~8.8	4.4~9
1.3×3.5	28	Karma	±40	7~19	7.8~21	10~23	11~24	12~25
1.3×3.5	30	Nickel	±200	2~5.5	2.5~6	3~6.5	3.5~7	4~7.5
1.1×3.3	25.5	Karma	±40	8.5~25	10~25	12~28	13~29	16~31
1.1×2.8	25.5	Nickel-Copper	±200	2.4~6.5	3~7	3.5~7.7	4.2~8.2	4.8~8.8
1.0×4	33	Nickel-Copper	±200	2~5	2.3~5.5	2.8~6	3.2~6.5	3.7~7
0.9×4	28	Constantan	±40	3.3~9.5	4~10	5~10	5.5~11	6.5~12
0.9×2.7	19	Constantan	±40	5~14	6~15	7.5~15	8.5~16	10~17.5
0.85×2.4	15	Constantan	±40	5~16	6~17	7.5~18	9~19	10~20
0.8×3.3	20	Constantan	±40	4~12	5~13	6~14	7~15	8~16
0.8×3.3	19	Karma	±40	11~33	13~35	17~38	19~40	22~44
0.8×3	19	Constantan	±40	4.5~13	5.5~14	6.6~15	7.7~16	8.8~17
0.8×2.4	15	Constantan	±40	6~17	7.5~18	9~20	11~21	12~22
0.8×2	11	Karma	±40	19~55	22~58	28~64	31~66	37~69
0.7×6	32	Constantan	±40	3.5~6.8	3.5~7.7	4.3~8.5	4.3~8.5	5~9.5
0.6×6	28	Constantan	±40	4~8	4~9	5~10	5~10	6~11
0.6×5	21	Karma	±40	11~29	13~30	15~33	16~34	20~37
0.6×2.4	11.5	Constantan	±40	9~22	10~24	12~25	13~26	15~28
0.6×2.4	10	Karma	±40	26~60	29~66	34~69	37~71	42~77
0.5×6	23.5	Constantan	±40	3.5~10	4.4~11	5.3~12	6.2~13	7~14
0.5×3.5	13.5	Constantan	±40	6~18	7.5~19	9~20.5	11~22	12~24
0.5×3.3	13	Constantan	±40	6~20	8~22	9~23	11~24	12~26
0.5×3.3	11	NiCr	±120	14~44	16~47	20~50	23~53	27~58
0.5×3	12	Constantan	±40	9~22	10~24	11~25	13~26	14~28
0.4×3.3	10	Constantan	±40	8~25	10~27	12~29	14~31	16~33
0.4×3.3	9	NiCr	±120	21~56	25~60	29~65	33~69	38~74
0.4×3	9.5	Constantan	±40	10~27	13~29	14~31	16~34	19~36
0.4×3	8.5	NiCr	±120	23~60	30~65	32~69	36~76	43~81
0.4×2.4	7.5	Constantan	±40	13~35	15~37.5	17.5~40	20~42	23~45
0.4×2.4	7	NiCr	±120	29~78	34~84	40~90	45~95	51~101
0.36×2.4	6	NiCr	±120	28~80	33~87	40~94	48~100	55~107
0.3×6	14	Constantan	±40	5~24	7~25	8~26	9~28	11~29
0.3×4	9	Constantan	±40	8~36	10~38	12~40	14~43	16~44
0.3×3.5	8.5	Constantan	±40	9~41	11~43	13~45	16~48	18~50
0.3×3.3	8	Constantan	±40	9~43	12~46	14~48	16~50	19~53
0.3×3.3	7	Karma	±40	25~120	32~126	39~134	45~140	52~147
0.3×3	7	Constantan	±40	10~45	13~50	15~53	18~56	21~58

Material Resistivity

Material	Resistance Rate
Copper-Nickel	48 μΩ.cm
Constantan	48 μΩ.cm
NiCr	108 μΩ.cm
Karma	133 μΩ.cm

Item Parameters

Items	Parameters
Material	Constantan/Tinned Copper
Diagrammatize	Testpoint A: 3.5mm±0.5mm, H: 17mm±2.0mm, etc.
Resistance Value	5mΩ±1%
Rated Power	5W
Mark	RO05F
Operating Temperature	-65℃~170℃

Endurance Test

Items	Limits	Additional Requirements
Short Time Overload	±1%	Rated power X 5 times, 5s, No mechanical damage
Terminal Strength	>13kg	No mechanical damage
Vibration	Resistance deviation <±0.5%, No appearance damage	10Hz to 2000Hz, 10g, 24H each direction
Resistance to Soldering Heat	±0.5%	260±5℃, 10±1s, No mechanical damage
Solderability	Covered with new solder by 95% at least	245±5℃, 5±0.5s
Temperature Cycle	±1%	-55°C~+125°C, 1000 cycles, No mechanical damage
Biased Humidity	±1%	85°C/85%RH, 1000hrs, 10% of operating power
Load Life	±1%	70±2℃, 1000h, Rated voltage (90 min ON, 30 min OFF)
