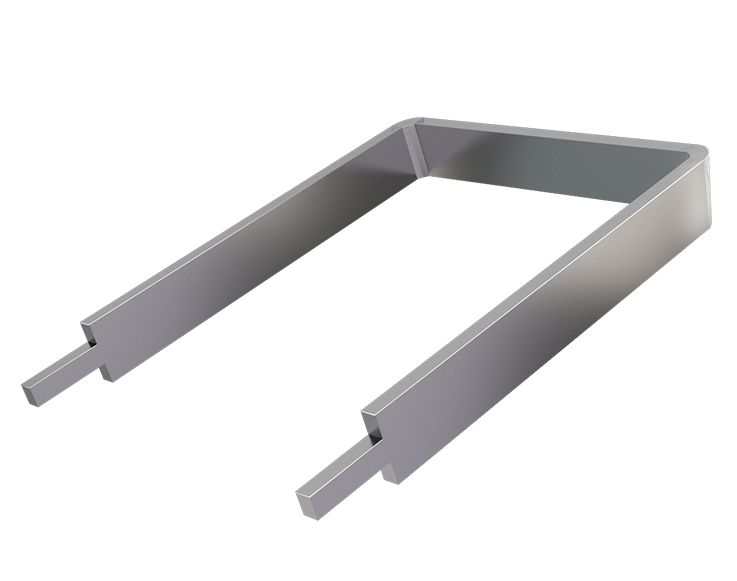

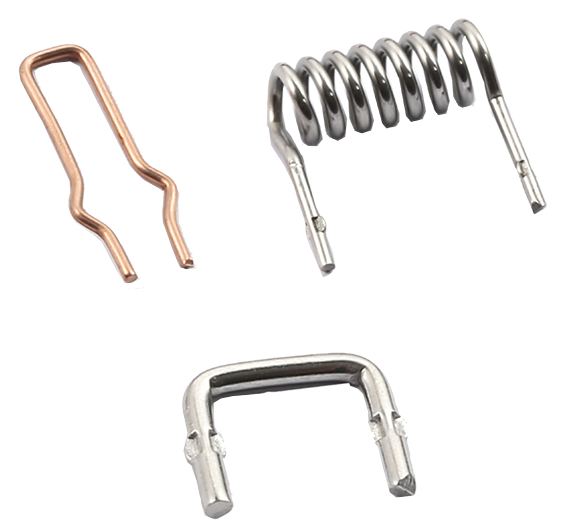

Customizable press-fit terminal sampling resistor

Features	Applications
Through Current: 3-25A	Current Sensing
Tolerance: ±10%, ±5%, and ±2%	Drive Technology
TCR down to ±40ppm/°C	Power Electronics
Low Inductance	Home Appliances
RoHS Compliant	Automotive Electronics
Customizable	Communication Systems

Dimensions

L/mm	W/mm	H/mm	A/mm	T/mm
0.5~3.0	5~30	5~30	3.5±0.2	0.75~3.3

Conventional Press-Fit (Y) Sampling Resistor Specifications

Wire Diameter /mm	Overcurrent /A	5 mm	10 mm	15 mm	20 mm	25 mm	30 mm
0.5	3	30~160	45~175	60~190	75~205	90~220	105~235
0.6	4	25~110	35~120	45~130	55~140	65~150	75~160
0.7	5	15~80	22~87	29~94	35~100	42~107	49~114
0.8	5.5	12~60	17~65	22~70	28~75	33~80	39~85
0.9	6	10~48	14~52	18~56	22~60	26~64	30~68
1.0	7	7.5~38	11~41	14~43	18~46	21~49	24~52
1.1	7.5	6~32	9~35	12~37	15~40	18~43	21~47
1.2	8	5~25	7.5~28	10~31	12.5~34	15~37	18~40
1.3	8.5	4.5~23	6.5~25	8.5~27	11~29	13~31	15~33
1.4	9	3.5~19	5.5~21	7~23	9~25	11~27	13~29
1.5	9.5	3~16	4.5~17	6~28	7.5~20	9~23	11~24
1.6	10	/	4~15	5.5~17	6.5~19	8~21	10~23
1.8	12	/	3.5~12	4.5~13	5.5~14	6.5~15	7.5~17
2.0	15	/	3~9.5	3.5~11	4.5~12	5.5~13	6~14
2.3	18	/	2.2~7.5	2.8~8	3.5~8.5	4~9	4.8~10
2.5	20	/	1.8~6.5	2.3~7	2.8~7.5	3.3~8	3.8~8.5
3.0	25	/	1~4	1.3~4.3	1.6~4.6	1.9~4.9	2.2~5.2

Material Resistivity

Material	Resistance Rate
Manganin	44 μΩ.cm
Constantan	48 μΩ.cm
Copper-Nickel	30 μΩ.cm

Endurance Test

Items	Limits	Additional Requirements
Short Time Overload	±1%	Rated power X 5 times, 5s, No mechanical damage
Vibration	Resistance deviation <±0.5%, No appearance damage	10Hz to 2000Hz, 10g, 24H each direction
Resistance to Soldering Heat	±0.5%	260±5℃, 10±1s, No mechanical damage
Solderability	Covered with new solder by 95% at least	245±5℃, 5±0.5s
Temperature Cycle	±1%	-55°C~+125°C, 1000 cycles, No mechanical damage
Biased Humidity	±1%	85°C/85%RH, 1000hrs, 10% of operating power
Load Life	±1%	70±2℃, 1000h, Rated voltage (90 min ON, 30 min OFF)
