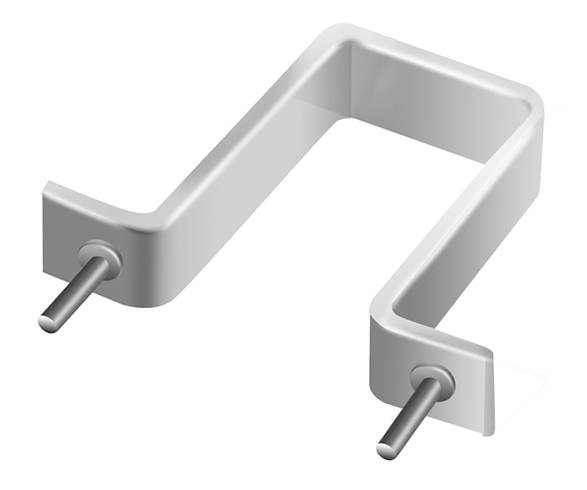

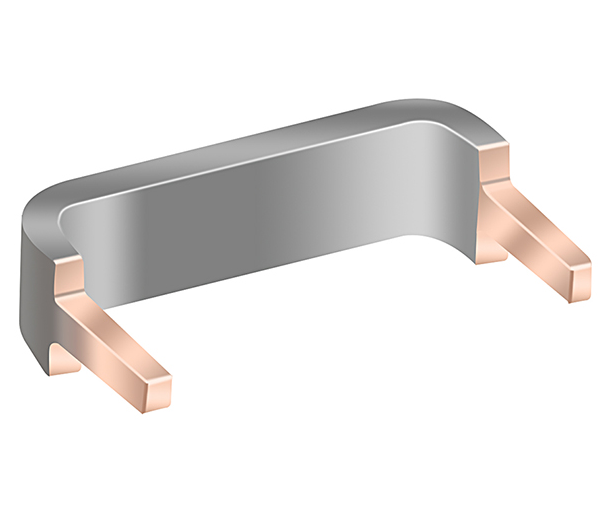

n-type solder tab sampling resistor

Features	Applications
1-7 watts	Current Sensing
Tolerance ±5%, ±2%, and ±1%	Drive Technology
TCR down to ±40ppm/°C	Power Electronics
Low Inductance	Home Appliances
Excellent Solderability	Automotive Electronics
RoHS Compliant	Communication Systems
Customizable

Dimensions

C/mm	W/mm	H/mm	A/mm	L/mm
2.4~3.3	10~35	7.5~30	4.5±0.2	0.8/1.0±0.1

Contact Information for:

Variations of "W"
Variations of "H"
Value and rated power

Standard Span (mm) and Resistance Range (mΩ)

Thickness /mm	Overcurrent /A	10 mΩ	15 mΩ	20 mΩ	25 mΩ	30 mΩ	Material	TCR /ppm/°C
1.3×3.5	30	2.5~7	2.8~7.6	3.6~8.4	4~8.8	4.4~9	Constantan	±40
1.3×3.5	30	2~5.5	2.5~6	3~6.5	3.5~7	4~7.5	Copper-Nickel	±200
1.1×3.3	25.5	7~20	8~20	10~23	10~23	13~25	NiCr	±120
1.1×3.3	28	3~9	3.5~10	4.5~10	5~11	5.5~11	Constantan	±40
1.1×2.8	25.5	2.4~6.5	3~7	3.5~7.7	4.2~8.2	4.8~8.8	Copper-Nickel	±200
0.9×2.7	19	5~14	6~15	7.5~15	8.5~16	10~17.5	Constantan	±40
0.85×2.4	15	5~16	6~17	7.5~18	9~19	10~20	Constantan	±40
0.8×3.3	20	4~12	5~13	6~14	7~15	8~16	Constantan	±40
0.8×3.3	19	9~27	11~28	14~31	15~32	18~36	NiCr	±120
0.6×2.4	11.5	9~22	10~24	12~25	13~26	15~28	Constantan	±40
0.6×2.4	10	21~48	24~53	27~56	30~57	35~62	NiCr	±120
0.5×3.3	13	6~20	8~22	9~23	11~24	12~26	Constantan	±40
0.5×3.3	11	14~44	16~47	20~50	23~53	27~58	NiCr	±120
0.4×3.3	10	8~25	10~27	12~29	14~31	16~33	Constantan	±40
0.4×3.3	9	21~56	25~60	29~65	33~69	38~74	NiCr	±120
0.4×2.4	7.5	13~35	15~37.5	17.5~40	20~42	23~45	Constantan	±40
0.4×2.4	7	29~78	34~84	40~90	45~95	51~101	NiCr	±120
0.36×2.4	6	28~80	33~87	40~94	48~100	55~107	NiCr	±120
0.3×3.3	8	9~43	12~46	14~48	16~50	19~53	Constantan	±40
0.3×3	7	10~45	13~50	15~53	18~56	21~58	Constantan	±40

Material Resistivity

Material	Resistance Rate
Constantan	48 μΩ.cm
NiCr	108 μΩ.cm
Copper-Nickel	30 μΩ.cm
Tinned Copper	-

Endurance Test

Items	Limits	Additional Requirements
Short Time Overload	±1%	Rated power X 5 times, 5s, No mechanical damage
Terminal Strength	>13kg (Car applications), >10kg (Non-car)	No mechanical damage
Vibration	Resistance deviation <±0.5%, No appearance damage	10Hz to 2000Hz, 10g, 24H each direction
Resistance to Soldering Heat	±0.5%	260±5℃, 10±1s, No mechanical damage
Solderability	Covered with new solder by 95% at least	245±5℃, 5±0.5s
Temperature Cycle	±1%	-55°C~+125°C, 1000 cycles, No mechanical damage
Biased Humidity	±1%	85°C/85%RH, 1000hrs, 10% of operating power
Load Life	±1%	70±2℃, 1000h, Rated voltage (90 min ON, 30 min OFF)
