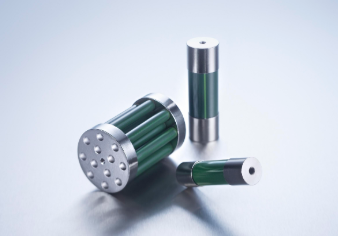

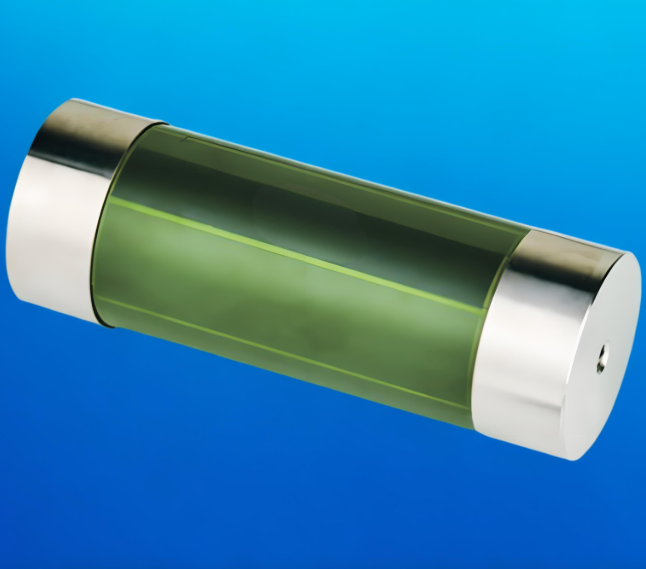

100W, 150W high - pulse absorption resistors.

Technical Features and Application Scenarios

• Technical Features:

• Suitable for installations without forced air cooling (fan can enhance effect).

• Primarily used in circuits that require absorbing large pulse energy in a short period, offering advantages such as inductance-free, high thermal capacity, high temperature resistance, small size, and stable performance.

• Ideal for random high-pulse energy discharge resistors, braking resistors for variable-frequency motors, etc.

• Application Scenarios:

• Circuits with high pulse energy absorption requirements.

• Environments with high demands for resistor performance stability and high temperature resistance.

Specific Technical Characteristics

• Pulse Load Testing: Utilizes RC circuit for precise pulse load testing of resistors.

• Special External Structure:

• Thick-film resistors are fired onto the surface of a 96% high-quality cylindrical ceramic substrate.

• Brass terminals are crimped at both ends, each with an M4 threaded hole for resistor lead-out and fixing support.

• Strong Pulse Load Capacity.

• Material Certification: Complies with UL94-V0 standard.

Specifications

• Resistance Range: 10Ω to 1kΩ (customizable upon request).

• Resistance Accuracy: ±5% to ±10%.

• Temperature Coefficient: ±250ppm/°C (25°C to 105°C) (customizable upon request).

Thermal Capacity

• 100W Type: 0.3 KJ/°C

• 150W Type: 0.65 KJ/°C

Maximum Surge Voltage

• 100W Type: 3000V (customizable upon request)

• 150W Type: 5000V (customizable upon request)

Rated Power (at 70°C)

• 100W Type:

• Time Constant (=0.5S): E = 8000J / single pulse

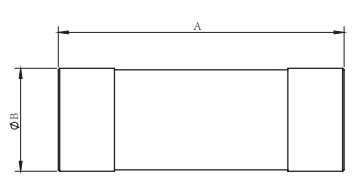

• Dimension (A): 100.0mm (±0.50mm) / 3.94 inches (±0.02 inches)

• Dimension (ΦB): 36.0mm (±0.50mm) / 1.42 inches (±0.02 inches)

• 150W Type:

• Time Constant (=0.5S): E = 18000J / single pulse

• Dimension (A): 299.0mm (±0.50mm) / 11.77 inches (±0.02 inches)

• Dimension (ΦB): 39.5mm (±0.50mm) / 1.55 inches (±0.02 inches)

Resistor Installation

• 100W Type: Use M5 screws with a maximum torque of 3Nm.

• 150W Type: Use M8 screws with a maximum torque of 4Nm.
