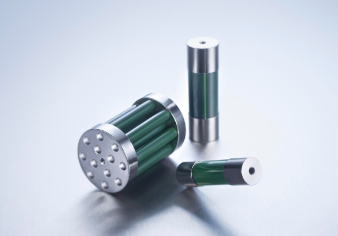

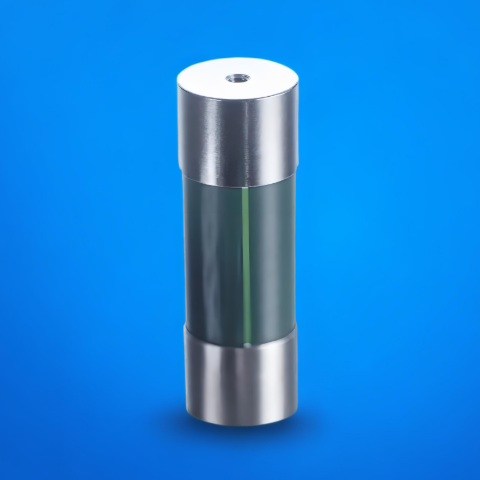

High Pulse Absorption Resistor

A High Pulse Absorption Resistor is a specialized electrical component designed to handle and dissipate high - energy electrical pulses. These pulses are short - duration, high - amplitude surges of electrical current or voltage that can occur in various electrical circuits. The resistor's primary function is to absorb and dampen these pulses, protecting other components in the circuit from damage caused by the sudden influx of energy.

1. Construction and Materials

• Resistive Element:

• The core of the high - pulse absorption resistor is its resistive element. This is often made from materials with high - power - handling capabilities and excellent thermal stability. For example, metal oxides such as zinc oxide (ZnO) are commonly used. ZnO has non - linear resistance characteristics, meaning its resistance changes depending on the voltage applied. At normal operating voltages, it has a relatively high resistance, but when a high - voltage pulse is applied, its resistance decreases, allowing it to conduct more current and absorb the pulse energy more effectively.

• Another material used in some cases is wire - wound alloys like manganin or constantan. These alloys have stable resistance over a wide range of temperatures and voltages, which is beneficial for handling the rapid temperature and voltage changes during pulse absorption. The wire - wound construction provides a certain amount of inductance that can also help in shaping and dissipating the pulse.

• Packaging and Insulation:

• To protect the resistive element and ensure its proper functioning, high - pulse absorption resistors are usually encapsulated in a robust packaging material. Ceramic materials are often used for their high - temperature resistance and excellent electrical insulation properties. The ceramic enclosure not only prevents electrical breakdown during pulse absorption but also protects the internal resistive element from environmental factors such as moisture, dust, and mechanical damage.

• Some resistors may also have additional layers of insulation or coatings to enhance their performance and reliability. For example, a silicone - based coating can provide extra protection against moisture and can help with heat dissipation.

2. Electrical Characteristics

• Pulse Energy Absorption:

• The most important characteristic of a high - pulse absorption resistor is its ability to absorb high - energy pulses. This is measured in joules (J) and represents the amount of energy the resistor can handle during a single pulse without being damaged. The energy absorption capacity depends on factors such as the resistor's physical size, the material and construction of the resistive element, and the thermal dissipation capabilities of the overall resistor.

• The resistor's non - linear resistance behavior, as mentioned earlier, plays a crucial role in pulse absorption. When a high - voltage pulse arrives, the resistor's resistance changes to allow the pulse energy to be dissipated as heat. The rate at which the resistor can convert the pulse energy into heat and dissipate it determines its effectiveness in protecting the circuit.

• Response Time:

• High - pulse absorption resistors have a very short response time. This is the time it takes for the resistor to start conducting and absorbing the pulse energy once the pulse is detected. A fast response time is essential to prevent the pulse from reaching and damaging other sensitive components in the circuit. The response time is typically in the nanoseconds to microseconds range, depending on the design and materials of the resistor.

• Voltage and Current Ratings:

• These resistors also have specific voltage and current ratings. The voltage rating indicates the maximum voltage that the resistor can withstand during normal operation and pulse absorption without electrical breakdown. The current rating represents the maximum continuous current that the resistor can handle. However, during pulse absorption, the resistor may be able to handle much higher currents for a short period due to its pulse - handling capabilities.

3. Applications

• Power Electronics:

• In power supplies, high - pulse absorption resistors are used to protect the circuit from voltage and current spikes that can occur during power - on, power - off, or load - switching events. For example, in a switching power supply, when the power transistor switches on or off, it can generate high - frequency and high - amplitude voltage pulses. The resistor absorbs these pulses, preventing them from damaging other components such as capacitors, diodes, and integrated circuits.

• In motor - drive systems, they protect the power - conversion electronics from the back - electromotive force (EMF) pulses generated by the motor during rapid deceleration or switching operations. The back - EMF pulses can be of high energy and can cause damage to the drive electronics if not properly absorbed.

• Telecommunications:

• In telecommunication equipment such as base stations and signal - processing units, high - pulse absorption resistors are used to protect against lightning - induced surges and electrostatic discharge (ESD) events. Lightning strikes on communication lines or nearby structures can introduce high - energy pulses into the equipment. The resistors absorb these pulses, safeguarding sensitive electronic components like transistors, amplifiers, and microcontrollers.

• They also play a role in protecting against ESD, which can occur during handling or connection of cables and components. ESD pulses are short - lived but can carry high - energy levels that can damage semiconductor devices.

• Automotive Electronics:

• In modern vehicles, with the increasing use of electronics in engine control units, anti - lock braking systems (ABS), and other electronic control systems, high - pulse absorption resistors are essential. They protect the vehicle's electronics from voltage spikes generated by the vehicle's electrical system, such as during the starting of the engine or the disconnection of a battery while the engine is running.

• In electric vehicles, they are also used to handle the high - energy pulses generated during the charging and discharging of the battery, as well as during the operation of the electric motor.

4. Advantages and Considerations

• Advantages:

• Circuit Protection: By effectively absorbing high - energy pulses, these resistors protect other circuit components from damage, increasing the overall reliability and lifespan of the electrical system.

• Versatility: They can be designed to handle a wide range of pulse amplitudes, frequencies, and energy levels, making them suitable for various applications in different industries.

• Compact Design: Many high - pulse absorption resistors are available in compact sizes, allowing them to be easily integrated into space - limited circuit boards and equipment.

• Considerations:

• Power Dissipation: While they are designed to handle pulses, the energy absorbed is dissipated as heat. Therefore, proper heat - dissipation measures need to be considered to ensure the resistor's long - term performance and prevent overheating.

• Matching Requirements: Selecting the right high - pulse absorption resistor requires careful consideration of the specific pulse characteristics (such as energy, voltage, and frequency) of the application. Using a resistor with insufficient pulse - handling capabilities can lead to its premature failure and damage to the circuit.
