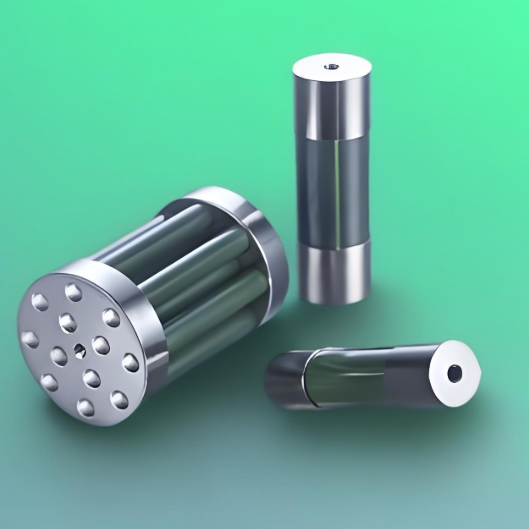

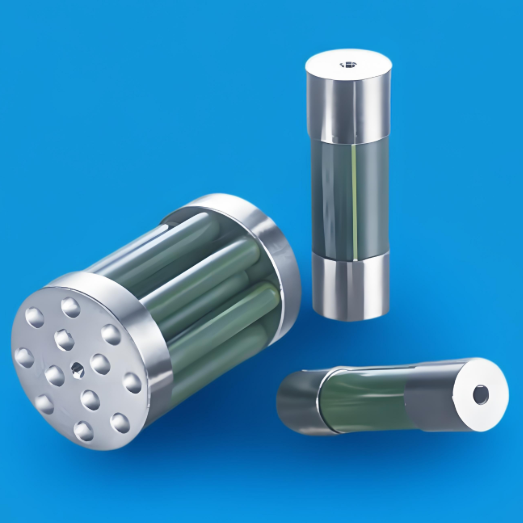

High Pulse Load Resistors High pulse rating

I. Product Overview

This resistor is an ideal solution for high-pulse load/low-frequency applications. It boasts high thermal capacity and is suitable for applications where air cooling is not required (performance is enhanced during cooling). It is commonly used in damping or braking circuits.

II. Product Features

• Resistance Value: 1 Ω ≤ 1 KΩ (other values available upon special request)

• Resistance Tolerance: ±5% to ±10%

• Temperature Coefficient: ±250 ppm/°C (referenced from +25°C to +85°C)

• Power Rating: High pulse rating (details upon inquiry)

• Maximum Operating Voltage: 1,000 V (can be increased upon request)

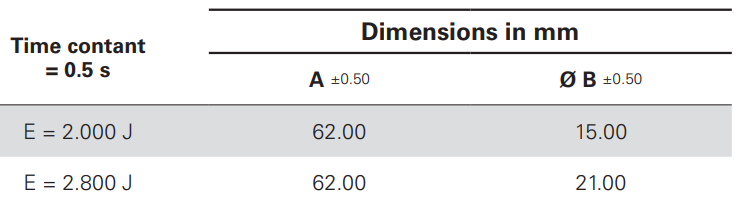

• Pulse Energy Rating:

• 2,800 J within 1 second (for some specifications)

• 3,300 J within 1 second (for some specifications)

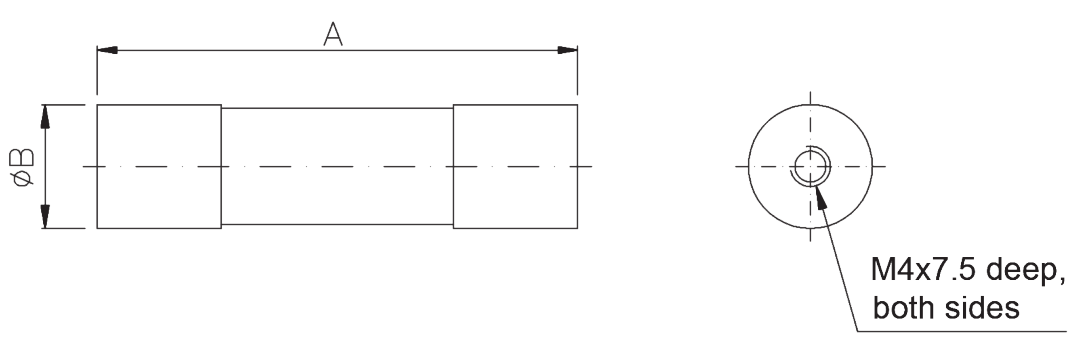

• Mounting: M4 screws, maximum torque of 3 Nm (static)
