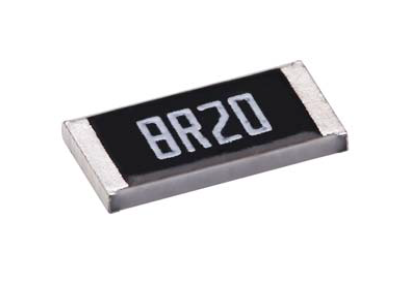

Low TCR Resistors

Type	Resistance Range	Tolerance	Temperature Coefficient (ppm/°C)	Packaging
Thin Film Precision Chip Resistor	1Ω~3MΩ	±0.01%~±1%	1ppm	0201/0402/0603/0805/1206/1210/2010/2512
Anti-Corrosive Thin Film Precision Chip Resistor	10Ω~1.5MΩ	±0.1%~±0.5%	15/25/50	0402/0603/0805/1206/2010/2512
Thin Film Anti-Sulfurated Chip Resistor	10Ω~499KΩ	±0.05%, ±1%	10/15/25/50	0402/0603/0805
Thin Film Current Sensing Chip Resistor	50mΩ~1000mΩ	±0.5%, ±1%	50/100/200	0402/0603/0805/1206/2010/2512
Thin Film Array Chip Resistor	100Ω~33KΩ	±0.1%, ±0.25%, ±0.5%	10/15/25/50	0603x4
Thin Film Current Sensing Chip Resistor	50mΩ~1000mΩ	±0.5%, ±1%	50/100/200	0402/0603/0805/1206/2010/2512
Thin Film Array Chip Resistor	100Ω~33KΩ	±0.1%, ±0.25%, ±0.5%	10/15/25/50	0603x4
TAI - Thin Film Chip Resistor	1Ω~3MΩ	±0.05%~±1%	5~100	0201/0402/0603/0805/1206/1210/2010/2512

Type	Resistance Range	Tolerance	Temperature Coefficient (ppm/°C)	Packaging
Ultra Low Ohm (Metal Strip) Chip Resistor 1W~3W	0.5mΩ~15mΩ	±1%, ±3%, ±5%	50/75/100/150/1206/2010/2512
Chip Shunt Resistor	0.5mΩ~4mΩ	±1%, ±2%, ±5%	50/60/75/100/120	1050/1575
Current Sensing Metal Chip Resistor	10mΩ~100mΩ	±1%, ±2%, ±5%	50/100	0603/0805/1206/2010/2512
Low Ohm (Metal Strip) Chip Resistor	5mΩ~100mΩ	±1%, ±2%, ±5%	75/100	1206/2010/2512
Small Package Alloy Sampling Resistor	0.25mΩ~50mΩ	±1%, ±2%, ±5%	75/100/275	0805/1206/2010/2512
High Power Alloy Sampling Resistor	1mΩ~91mΩ	±1%, ±2%, ±5%	75	4527/2512/2010
Long Electrode Alloy Sampling Resistor	1mΩ~3mΩ	±1%, ±2%, ±5%	100	3720/0612
Alloy Four-terminal Current Sensing Resistor	0.5mΩ~5mΩ	±1%, ±2%, ±5%	150/200	0612
Metal Material Current Sensing Resistor	5mΩ~40mΩ	±1%, ±2%, ±5%	100	0603/0805/1206

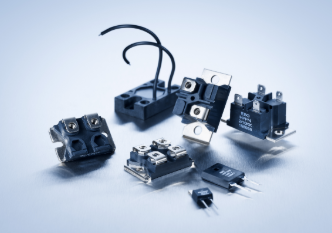

Type	Resistance Range	Tolerance	Temperature Coefficient (ppm/°C)	Power
TO-220 Power Resistor	0.05Ω~1MΩ	±0.5%, ±1%, ±5%	50/100/200/300/20W	10%
TO-220 Power Resistor	0.05Ω~10KΩ	±0.5%, ±1%, ±5%	50/100/200/300/30W	10%
TO-220 Power Resistor	0.05Ω~10KΩ	±0.5%, ±1%, ±5%	50/100/200/300/35W	10%
TO-220 Power Resistor	0.01Ω~10KΩ	±0.5%, ±1%, ±5%	50/100/200/300/50W	10%
TO-247 Power Resistor	0.05Ω~10KΩ	±1%, ±5%, ±10%	50/100/200/300/100W
TO-220 Power Resistor	0.01Ω~10KΩ	±0.5%, ±1%, ±5%	50/100/200/300/50W	10%

Type	Resistance Range	Tolerance	Temperature Coefficient (ppm/°C)	Power

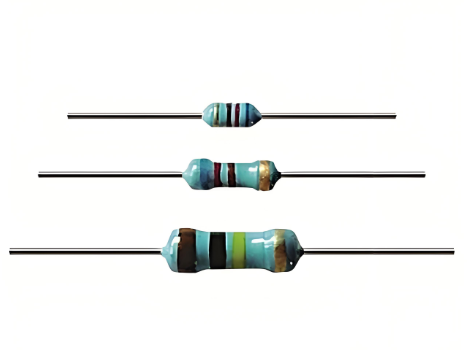

Metal Film Precision Resistor	0.1Ω~10MΩ	±0.1%~±5%	10/15/25/50/100/0102/0204/0207
Metal Film Precision Resistor	0.1Ω~1MΩ	±0.1%~±5%	10/15/25/50/100/0204/0207
Metal Film Precision Resistor - Automotive Grade	0.1Ω~10MΩ	±0.05%~±1%	5/10/15/25/50/100	0318/0623/0932/1145/1550
Metal Film Lead Resistor	100Ω~1MΩ	±0.02%~±0.05%	5/10/15/25	0727/1040
High Precision Metal Film Fixed Resistor	0.1Ω~22MΩ	±1%~±2%~±5%	200	0623/0932/1145/1550/1765/2485
Metal Oxide Leaded Film Resistor	0.1Ω~22MΩ	±1%~±2%~±5%	200	0623/0932/1145/1550/1765/2485
Metal Film Flame-Proof Resistor	0.1Ω~22MΩ	±1%~±2%~±5%	200	0623/0932/1145/1550/1765/2485

Key Technical Highlights

Advanced TCR Performance: Ultra-low 1ppm TCR in precision thin film resistors enables <0.01% resistance drift in -55°C to +175°C environments
Specialized Packaging:

0201 (0.6×0.3mm) packages achieve 50mΩ resistance with 200ppm TCR for space-constrained applications
TO-247 power resistors support 100W dissipation with <300ppm thermal drift

Material Innovation:

Alumina-ceramic substrates in current sensors reduce thermal resistance by 40% vs FR4
Anti-sulfurated coatings pass JIS-C-5201-14.13 standards for 2000hr corrosive environment operation

Automotive Compliance:

AEC-Q200 qualified metal film resistors with ±5ppm TCR tracking for battery management systems
100% RoHS compliance across all series

Applications

Precision thin film: Medical instrumentation, aerospace avionics
Current sensing: EV charging stations, industrial motor controls
Power resistors: UPS systems, welding equipment

LINE

WECHAT

SKYPE

Resistor Information(Low TCR Resistors)

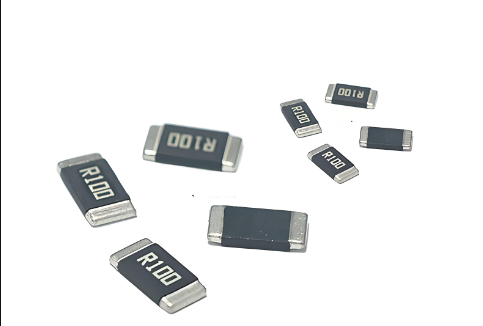

Low TCR Resistor Power Rating: Selection Guide, Applications & How to Avoid Overheating+T

1. What Is a Low TCR...

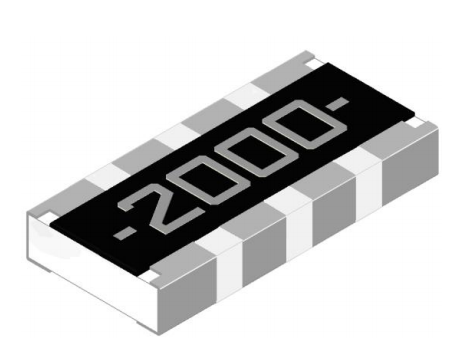

Low TCR Resistor Arrays: A Guide to Matched TCR, Precision, and Applications+T

Low TCR Resistor Arr...

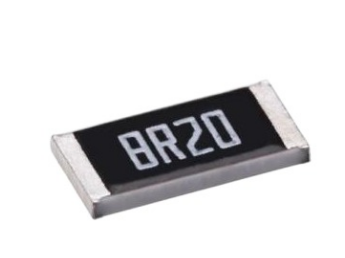

Why Use Low TCR Resistors? The Key to Stable Circuit Performance+T

Why Use Low TCR Resi...

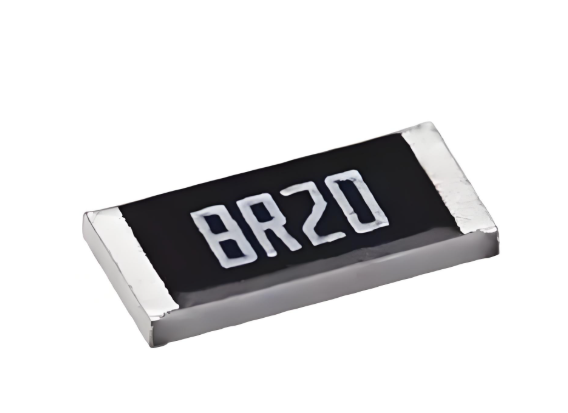

low TCR resistor vs standard chip resistor+T

Low TCR Resistor vs ...

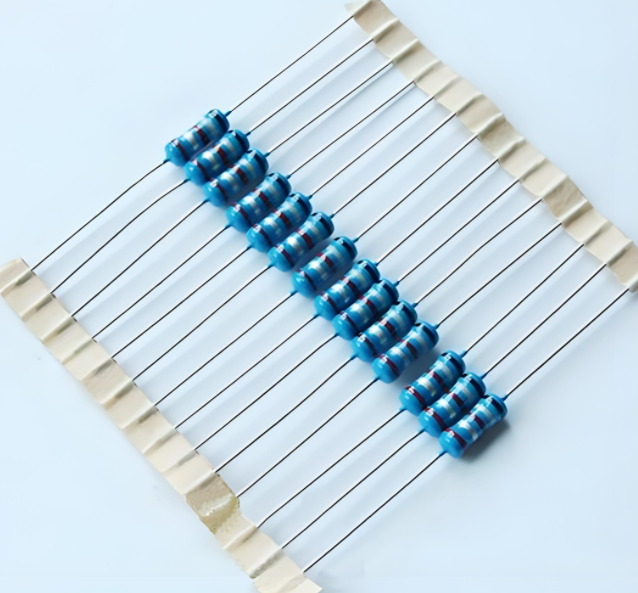

High Current Low TCR Thick Film Resistor for International Market - Long-term Stability+T
