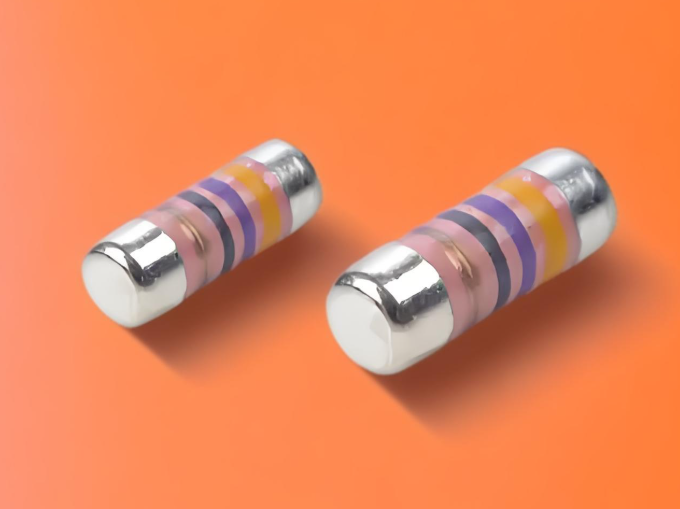

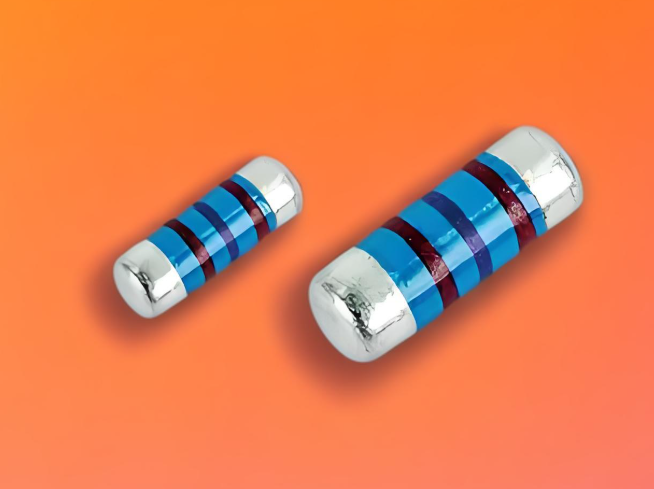

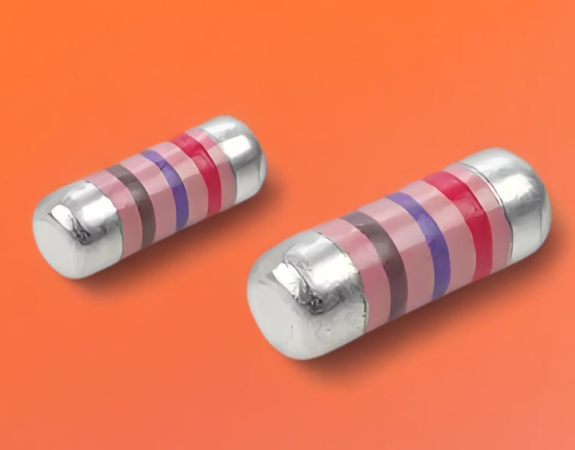

Stable power MELF resistors featuring small tolerance, low temperature coefficient, and high power SMD resistors

Stable power MELF resistors offer a rated power range from 0.4W to 3W and a resistance range from 0.5Ω to 10MΩ. They excel in heat dissipation compared to chip resistors. With robust mechanical structures that resist vibration and thermal shock, they feature low temperature coefficients and tight tolerances. Offering high stability over extended use, they demonstrate excellent power handling capabilities.

Type	Body Length (L, mm)	Cap Diameter (D1, mm)	Body Diameter (D2, mm)	Soldering Spot (B, mm)	Net Weight Per 1000 pcs
0.4W	3.52 ± 0.15	1.35 ± 0.1	D1 + 0.02/ -0.15	0.6 Min.	17 grams
1W	5.90 ± 0.20	2.20 ± 0.1	D1 + 0.02/ -0.2	1.0 Min.	66 grams
2W	8.50 ± 0.50	3.00 ± 0.2	D1 + 0.05/ -0.35	1.3 Min.	186 grams
3W	10.50 ± 0.50	4.00 ± 0.5	D1 + 0.05/ -0.45	1.6 Min.	446 grams

产品规格

Power Rating*	Maximum Working Voltage	Maximum Overload Voltage	Minimum Resistance	Maximum Resistance	Resistance Tolerance	Available Resistance Values
0.4W	200V	400V	0.2Ω	10MΩ	±0.5%~±5%	E - 192/E - 24
1W	350V	700V	0.2Ω	10MΩ	±0.5%~±5%	E - 192/E - 24
2W	400V	800V	0.2Ω	1MΩ	±0.5%~±5%	E - 192/E - 24
3W	400V	800V	0.2Ω	1MΩ	±0.5%~±5%	E - 192/E - 24

At 70°C, with the exception of SFP201 and SFP301, derating of which starts at 40°C. Please refer to the Power Derating Curve.
Special sizes, values, and specifications not listed available on special order.

Characteristics	Limits
Temperature Coefficient, PPM / °C*	±25, ±50, ±100, ±200
Operating Temperature Range, °C	-55 ~ +155
Insulation Resistance, MΩ	>10⁴
Failure Rate in Time, pcs / 10⁹ device hours	<5
Tin Whisker (JESD201 Temperature Cycling & High Temp. / Humidity Storage), μm	<5

Not applicable to all resistance values. Please check with us regarding the PPM of specific resistance value(s).
