High Value Resistors

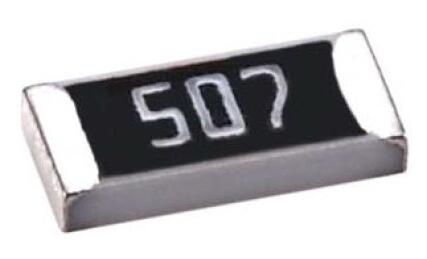

High Ohmic Chip Resistor

Resistance Range	Features	Precision	Temperature Coefficient (ppm/°C)	Package
110MΩ~1GΩ	Extended resistance range (110MΩ - 1GΩ) Surface mount package Highly reliable multi-layer electrode structure	±5%	500/1000	0805 / 1206

Standard Electrical Specifications

Series	Rated Power at 70°C	Operating Temperature Range	Max. Operating Voltage	Max. Overload Voltage	Resistance Range	Temperature Coefficient (ppm/°C)
0805	1/8W	-55°C ~ +125°C	150V	300V	110MΩ - 500MΩ ±500	510MΩ - 1GΩ ±1000
1206	1/4W	-55°C ~ +125°C	200V	400V	110MΩ - 500MΩ ±500	510MΩ - 1GΩ ±1000

Operating Voltage = √(P * R) or the maximum operating voltage listed above, whichever is lower.

Overload Voltage = 2.5 × √(P * R) or the maximum overload voltage listed above, whichever is lower.

LINE

WECHAT

SKYPE

Resistor Information(High Value Resistors)

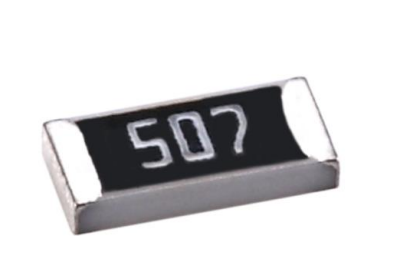

High Ohmic Resistors: Precision, Stability & Low Leakage Solutions for HV Circuits+T
