Slug Resistor Center Coated

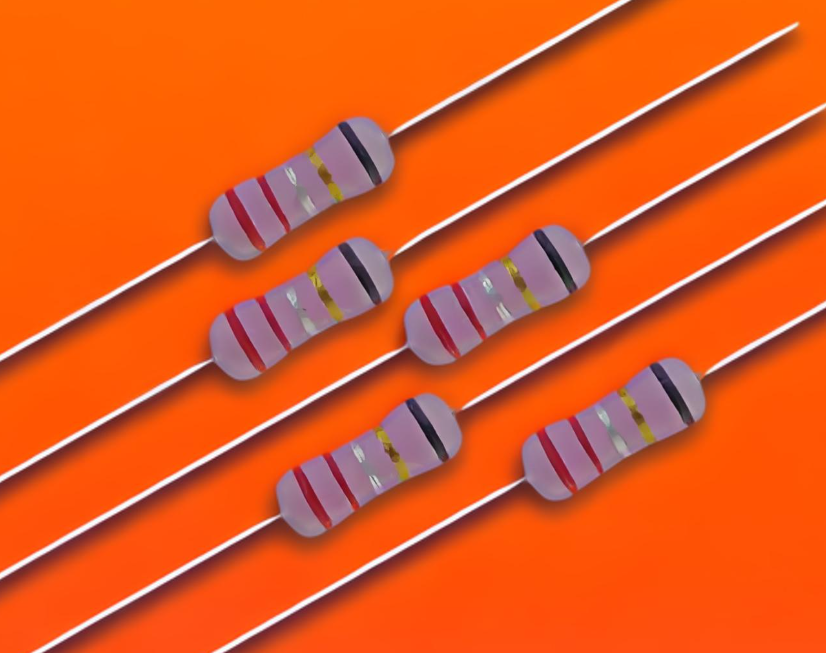

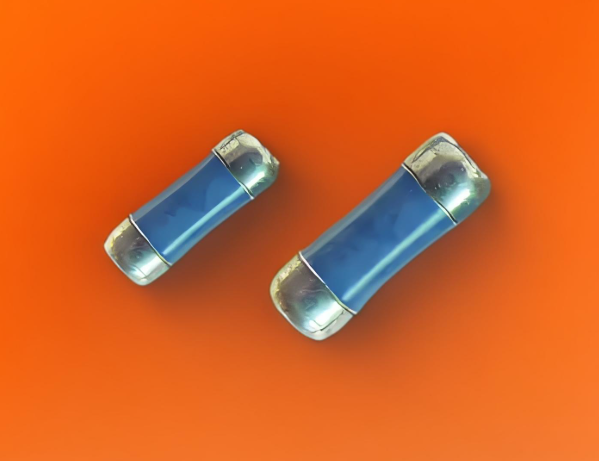

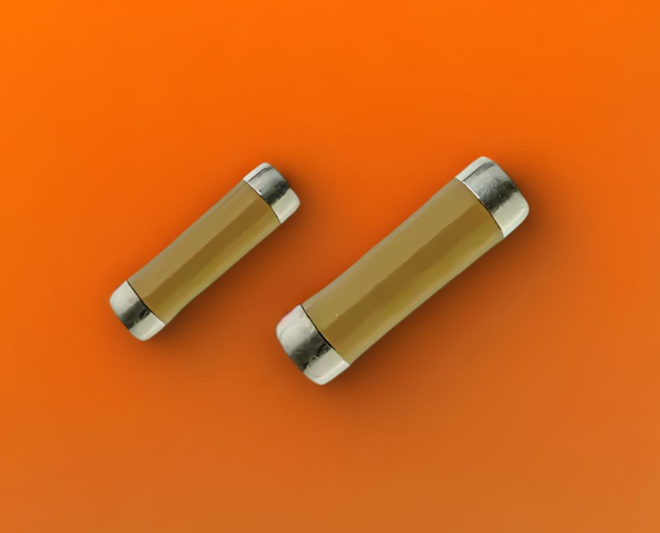

The Slug Resistor Center Coated boasts a broad power rating range from 0.16W to 0.5W and a resistance range spanning from 1 Ohm to 9.1 Megohms. This resistor is tailor-made for Clip-in (embedded) applications, such as switches equipped with neon indicators. Featuring a unique center coating design, it enhances the structural strength and durability of the resistor in harsh environments. The specially treated metal caps at both ends not only add to its aesthetic appeal but also effectively guard against internal corrosion caused by external factors. Furthermore, the resistor is coated with an enhanced conductive film that not only improves its conductivity but also resists abrasion, impact, and corrosion, significantly reducing contact resistance during operation and ensuring consistent performance.

Type	Body Length (L, mm)	Cap Diameter (D1, mm)	Body Diameter (D2, mm)	Soldering Spot (B, mm)	Net Weight Per 1000 pcs
1/6W	3.2 ± 0.15	1.35 ± 0.1	D1 + 0.02/ -0.15	0.6 Min.	17 grams
1/3W	5.9 ± 0.20	2.2 ± 0.1	D1 + 0.02/ -0.2	1.0 Min.	66 grams
1/2W	8.5 ± 0.50	3.0 ± 0.2	D1 + 0.05/ -0.35	1.3 Min.	186 grams

Power Rating (at 70°C)	Maximum Working Voltage	Maximum Overload Voltage	Resistance Tolerance	Resistance Range
1/6W	225VAC rms	350VAC rms	±5%, ±10%	1Ω ~ 1MΩ
1/3W	300VAC rms	600VAC rms	±5%, ±10%	1Ω ~ 4.7MΩ
1/2W	350VAC rms	700VAC rms	±5%, ±10%	1Ω ~ 9.1MΩ

Characteristics	Limits
Dielectric Withstanding Voltage, VAC or DC	250
Temperature Coefficient, PPM / °C*	-800 ~ +200
Operating Temperature Range, °C	-55 ~ +125
Insulation Resistance, MΩ	>10²

Not applicable to all resistance values. Please check with us regarding the PPM of specific resistance value(s).
