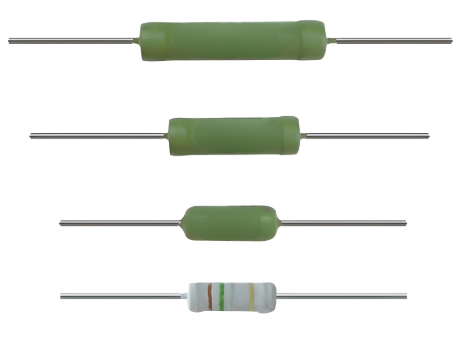

RX21 coated wire - wound resistors

Features

Low noise
Excellent linearity
High temperature resistant
Grey or green coating, color or character marking

Applications

Used in all kinds of electrical devices including charger

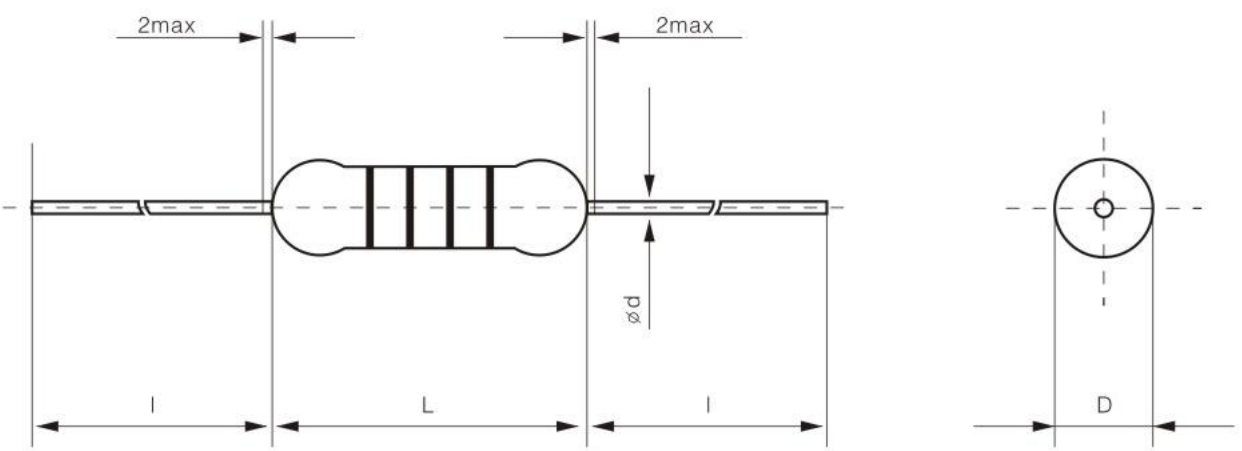

Dimensions(mm)

Type	L	D	d ± 0.05	l ± 3
RX21 - 1/2W	10.5	3.9	0.7	25.0
RX21 - 1W(2W)	14.0	5.5	0.8	33.0
RX21 - 2W(3W)	17.0	6.5	0.8	32.0
RX21 - 4W(5, 6W)	26.0	9.0	0.8	28.0
RX21 - 8W	34.0	10.0	1.0	28.0
RX21 - 10W	40.0	10.0	1.0	28.0
RX21 - 12W	48.0	10.0	1.0	28.0

Technical Specifications

Type	Rated Power	TCR (10⁻⁶/K)	Resistance Range (F (± 1%))	Resistance Range (J (± 5%))	Rating Ambient Temp	Operating Temp Range
RX21 - 1/2W	1/2W	rowspan="7">≥ 10Ω: 250 5Ω ≤ R < 10Ω: 500 < 5Ω	1Ω ~ 68Ω	1Ω ~ 68Ω	rowspan="7">70°C	rowspan="7">-55°C ~ 155°C
RX21 - 1W(2W)	1W(2W)	1Ω ~ 300Ω	1Ω ~ 300Ω
RX21 - 2W(3W)	2W(3W)	1Ω ~ 3.3KΩ	1Ω ~ 3.3KΩ
RX21 - 4W(5, 6W)	4W(5, 6W)	1Ω ~ 8.3KΩ	1Ω ~ 8.3KΩ
RX21 - 8W	8W	1Ω ~ 27KΩ	1Ω ~ 27KΩ
RX21 - 10W	10W	1Ω ~ 33KΩ	1Ω ~ 33KΩ
RX21 - 12W	12W	1Ω ~ 39KΩ	1Ω ~ 39KΩ

Performance

Test Item	Specifications	Test Methods
Short time overload	ΔR≤ ±(1%R + 0.05Ω)	10Pₙ, 5S
Rapid change of temperature	ΔR≤ ±(1%R + 0.05Ω)	-55°C/275°C, 30min 5 - cycle
Leaching	ΔR≤ ±(1%R + 0.05Ω)	350 ± 10°C, 3.5 ± 0.5S
Climatic category	ΔR≤ ±(5%R + 0.1Ω)	125°C, 16h/55°C, RH93 ± 3%, 24h/-55°C, 2h/15 - 35°C, 8.5kPa, 1h
Endurance at 70°C	ΔR≤ ±(5%R + 0.1Ω)	70 ± 2°C, Pₙ, 1000h
