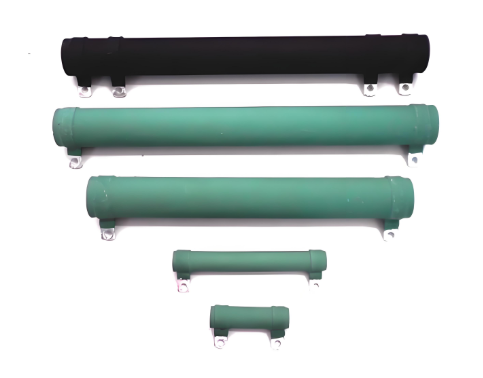

RXGI high power coated wire - wound resistors

Features

Wide power range
Excellent high - temperature load performance
T series is adjustable
N series is non - inductive
Full - welded structure
High reliability
Imported grey and green coating, character marking assembly and fittings (available)

Applications

Mostly used in large power supply
Electricity equipment
Electrical equipment
Locomotive

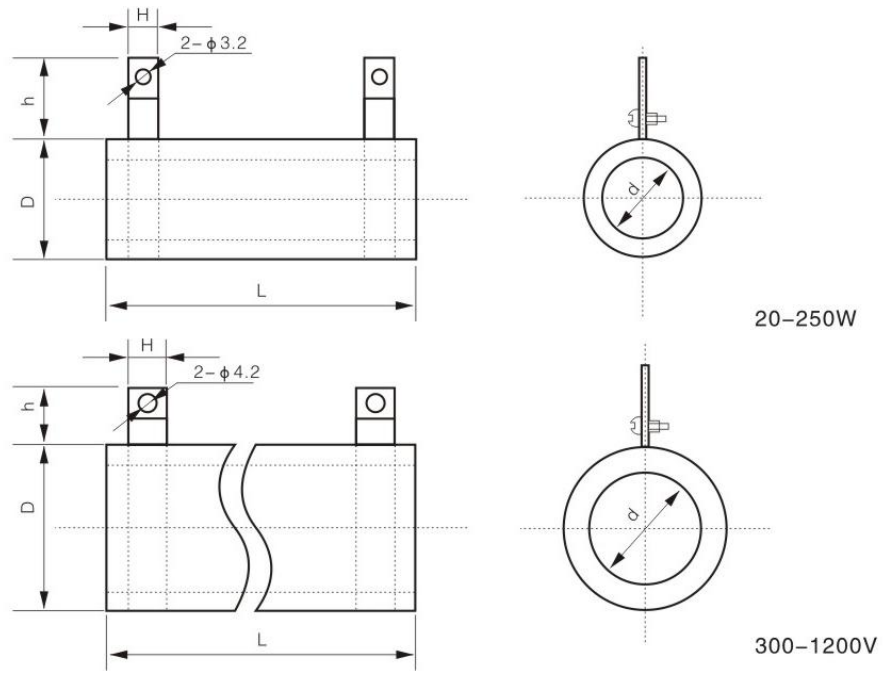

Dimensions (mm)

Type	L	D	d	H	h	Φ
RXGI - 10W	41	14	5.5	4.5	14	2
RXGI - 15W	45	17	8	4.5	14	2
RXGI - 20W	51	17	8	4.5	14	2
RXGI - 25W	51	21	12	4.5	14	2
RXGI - 30W	71	21	12	4.5	14	2
RXGI - 40W	87	21	12	4.5	14	2
RXGI - 50W	91	29	20	6	14	3.2
RXGI - 75W	140	29	20	6	14	3.2
RXGI - 100W	165	29	20	6	14	4.5
RXGI - 150W	216	29	20	10	16	4.5
RXGI - 200W	267	29	20	10	16	4.5
RXGI - 300W	216	34	20	10	17	5
RXGI - 500W	300	62	45	16	30	6.5
RXGI - 800W	500	65	45	16	30	6.5
RXGI - 1000W	510	72	50	16	30	6.5

Technical Specifications

Type	Rated Power (W)	TCR (10⁻⁶/K)	Resistance Range J(±5%)	Rating Ambient Temp	Operating Temp Range
RXGI - 10W	10	±250	1R - 5K	70°C	- 55°C/+155°C
RXGI - 15W	15		1R - 5K
RXGI - 20W	20		1R - 10K
RXGI - 25W	25		1R - 10K
RXGI - 30W	30		1R - 15K
RXGI - 40W	40		1R - 15K
RXGI - 50W	50		1R - 20K
RXGI - 75W	75		1R - 30K
RXGI - 100W	100		1R - 40K
RXGI - 150W	150		1R - 50K
RXGI - 200W	200		1R - 50K
RXGI - 300W	300		1R - 50K
RXGI - 500W	500		2R - 10K
RXGI - 800W	800		5R - 10K
RXGI - 1000W	1000		5R - 10K

Please contact us for special requirements about resistance, size and specification.

Performance

Test Item	Specifications	Test Methods
Short time overload	△R≤ ±(1%R + 0.05Ω)	10P<sub>R</sub>, 5S
Leaching	△R≤ ±(1%R + 0.05Ω)	350 ± 10°C, 3.5 ± 0.5S
Endurance	△R≤ ±(5%R + 0.1Ω)	15°C~35°C, P<sub>R</sub>, 1000h
Vibration	△R≤ ±(5%R + 0.1Ω)	10Hz~50Hz~10Hz, 2h
Surface temperature rise	≤250°C	P<sub>R</sub>
