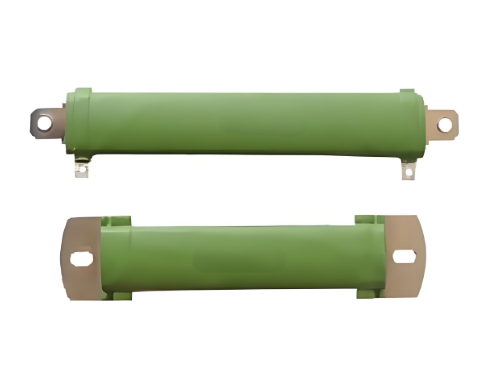

RXBRXB1 Flat coated wire - wound resistors

Features

Non - flammable
Excellent heat resistance
Easy to mount

Applications

Filter circuit
Electric welder
Electricity
Power supply
Large - size machinery

Technical Specifications

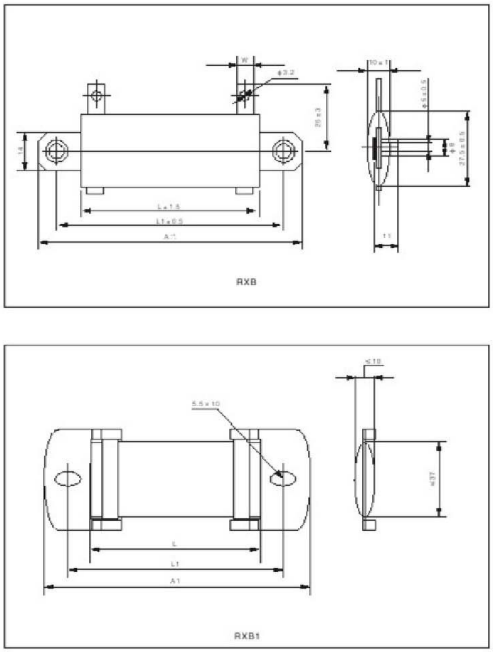

Type	Dimensions(mm)				Rated Power	Resistance Range	RES. Tolerances	Operating TEMP. Range
	A	L1	L	W
RXB20	64	51	32	5	30W	0R1 - 9K	≥1Ω: ±5% (J) ≤1Ω: ±10% (K)	- 55°C - 200°C
RXB21	83	70	51	5	40W	0R1 - 16K
RXB22	120	108	89	5	55W	0R1 - 36K
RXB23	152	140	120	6	70W	0R1 - 51K
RXB24	184	171	152	6	95W	0R1 - 75K
RXB1 - 40	86	67	50	-	40W	0R1 - 6K8		- 50°C - 250°C
RXB1 - 65	126	107	90	-	65W	0R1 - 18K
RXB1 - 90	156	137	120	-	90W	0R1 - 27K
RXB1 - 110	188	169	153	-	110W	0R1 - 33K

Performance

Test Item	Specifications	Test Methods
Short time overload	△R≤ ±(2%R + 0.05Ω)	10P<sub>R</sub>, 5s
Terminal tensile strength	△R≤ ±(2%R + 0.05Ω)	45N, 30s
Vibration	△R≤ ±(2%R + 0.05Ω)	10Hz - 55Hz - 10Hz, 1.5mm, 2h
Heat resistant	△R≤ ±(2%R + 0.05Ω)	350 ± 5°C, 2h
Thermal shock	△R≤ ±(2%R + 0.05Ω)	P<sub>R</sub>, 30min/ - 55°C, 15min
Humiding - proof coad	△R≤ ±(2%R + 0.05Ω)	40°C, RH93 ± 3%, 0.1P<sub>R</sub>, 500h
Endurance	△R≤ ±(5%R + 0.05Ω)	15 - 35°C, P<sub>R</sub>, 500h
