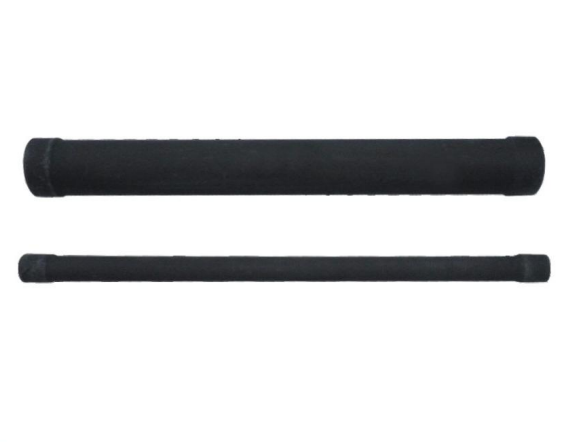

RXGM high power coated wire - wound resistors

Features

Small size, easily mounted
Excellent high - temperature load performance
Non - inductive available
High precision capping connection, resistor body firm and reliable
Imported green or black coating
Screw available if required

Applications

Mostly used in large power supply
Electricity equipment
Electrical equipment
Locomotive

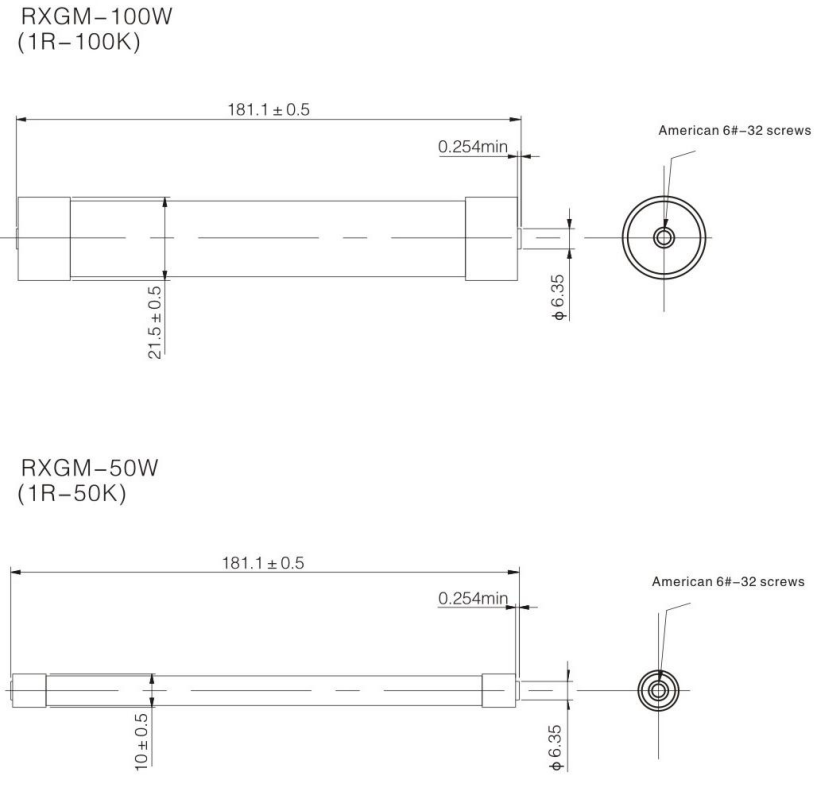

Technical Specifications

Type	Rated Power (W)	TCR (10⁻⁶/K)	Resistance Range J(±5%)	Rating Ambient Temp	Operating Temp Range
RXGM - 50W	50	±250	1R - 50K	70°C	- 55°C/+155°C
RXGM - 100W	100		1R - 100K

Please contact us for special requirements about resistance, size and specification.

Performance

Test Item	Specifications	Test Methods
Short time overload	△R≤ ±(1%R + 0.05Ω)	10P<sub>R</sub>, 5S
Leaching	△R≤ ±(1%R + 0.05Ω)	350 ± 10°C, 3.5 ± 0.5S
Endurance	△R≤ ±(5%R + 0.1Ω)	15°C~35°C, P<sub>R</sub>, 1000h
Vibration	△R≤ ±(5%R + 0.1Ω)	10Hz~50Hz~10Hz, 2h
Surface temperature rise	≤250°C	P<sub>R</sub>
