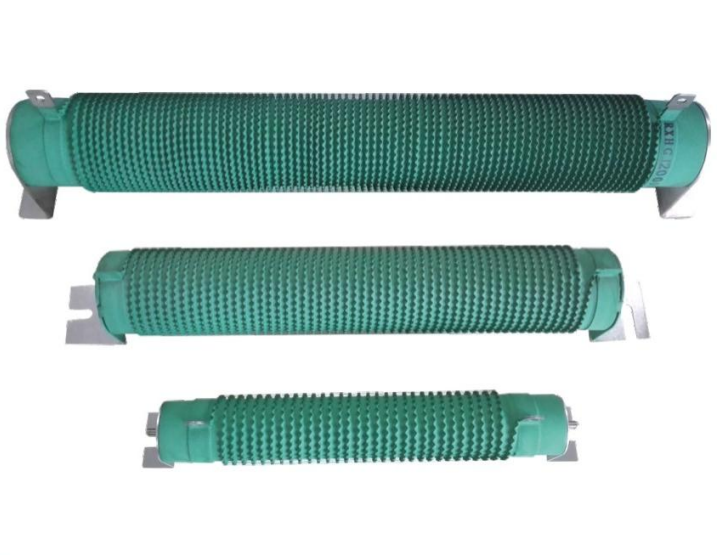

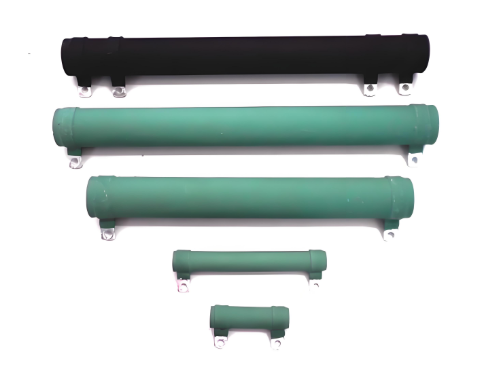

RXHGI high power wane ripple coated wire - wound resistors

Features

Wide power range
Excellent high - temperature load performance
Full - welded structure
High reliability
Imported grey and green coating, character marking, assembly and fittings (available)

Applications

Mostly used in large power supply
Electricity equipment
Electrical equipment
Locomotive

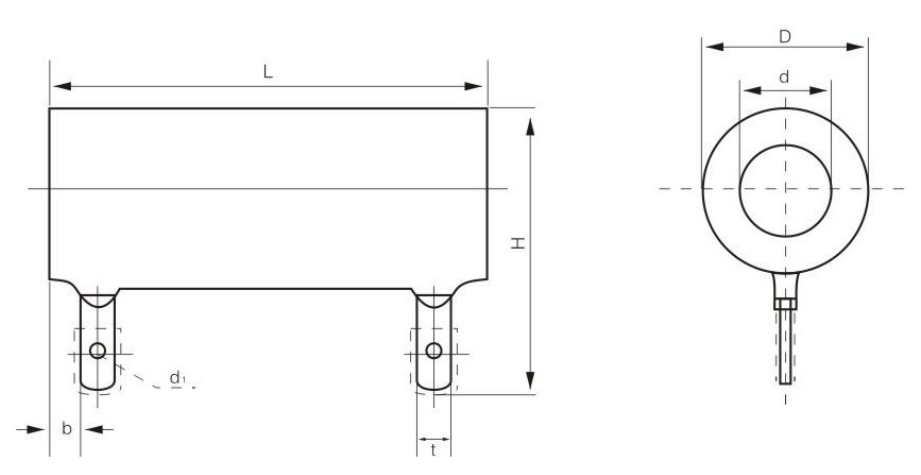

Dimensions (mm)

Type	Dimensions(mm)
	L	D	d	H	h	Φ
RXHGI - 50W	101.6	14	8.5	8	14	4.5
RXHGI - 100W	165	29	19	10	16	4.5
RXHGI - 150W	216	29	19	10	16	4.5
RXHGI - 200W	267	29	19	10	16	4.5
RXHGI - 300W	216	34	19	10	18	5
RXHGI - 400W	300	52	30	16	30	6.5
RXHGI - 500W	300	60	45	16	30	6.5
RXHGI - 800W	415	60	45	16	30	6.5
RXHGI - 1000W	415	70	50	16	30	6.5
RXHGI - 1500W	440	70	50	16	30	6.5
RXHGI - 2000W	510	70	50	16	30	6.5
RXHGI - 3000W	600	80	60	16	30	6.5

Technical Specifications

Type	Rated Power (W)	TCR (10⁻⁶/K)	Resistance Range J(±5%)	Rating Ambient Temp	Operating Temp Range
RXHGI - 50W	50	±250	Customized according to customer needs	70°C	- 55°C/+155°C
RXHGI - 100W	100
RXHGI - 150W	150
RXHGI - 200W	200
RXHGI - 300W	300
RXHGI - 400W	400
RXHGI - 500W	500
RXHGI - 800W	800
RXHGI - 1000W	1000
RXHGI - 1500W	1500
RXHGI - 2000W	2000
RXHGI - 2500W	2500

Performance

Test Item	Specifications	Test Methods
Short time overload	△R≤ ±(1%R + 0.05Ω)	10P<sub>R</sub>, 5S
Leaching	△R≤ ±(1%R + 0.05Ω)	350 ± 10°C, 3.5 ± 0.5S
Endurance	△R≤ ±(5%R + 0.1Ω)	15°C - 35°C, P<sub>R</sub>, 1000h
Vibration	△R≤ ±(5%R + 0.1Ω)	10Hz - 50Hz - 10Hz, 2h
Surface temperature rise	≤250°C	P<sub>R</sub>
