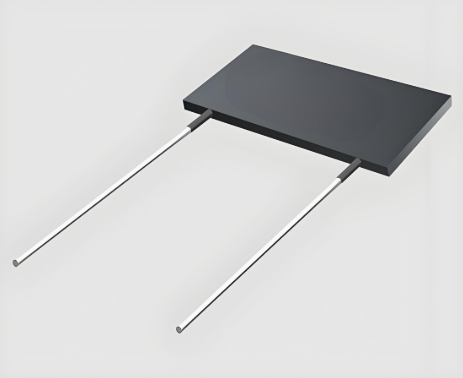

TYGST High - Resistance Thick - Film Resistor

Features

High - value thick - film resistors
Variable lead span
Resistance values up to 1 Teraohm
Excellent values of tolerance, TCR and VCR
Untrimmed for higher Working Voltage

Applications

All kinds of electrical equipments

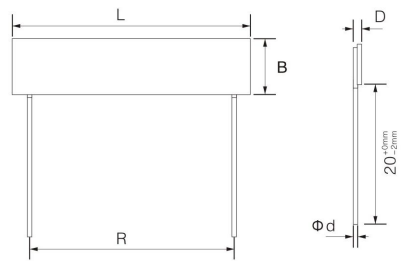

Dimensions (mm)

(size)	L	B	D	R	d
1210	3.2	2.5	0.9	2.0	0.40±0.05
25	3.8	5.0	1.0	2.5	0.40±0.05
2512	6.3	3.5	1.0	5.5	0.40±0.05
4020	10.2	5.1	1.0	9.5	0.40±0.05

L = Length, B = Width, D = Thickness, C = Width of wraparound (in mm)

Technical Specifications

Type	Rating PowerP₇₀ (W)	Working Voltage (V)		Resistance Range/Tolerance/TCR¹/VCR²
		Timmed	Untrimmed	1M - 100M	>100M - 500M	>500M - 1G	>1G - 10G	>10G - 100G	>100G - 1T
1210	0.5	300	1000	1/2/5/10% TC25/50/100 <50ppm/V	2/5/10/20% TC50/100/250 <100ppm/V	5/10/20% TC100/250 <100ppm/V	5/10/20/30% TC250/500 <500ppm/V	5/10/20/30% TC500/1000 <1000ppm/V	-
25	0.7	300	500	2/5/20% TC50/100 <50ppm/V	5/10/20% TC100/250 <100ppm/V	5/10/20% TC100/250 <100ppm/V	10/20/30% TC250/500 <500ppm/V	10/20/30% TC500/1000 <1000ppm/V	-
2512	1.0	1200	2500	1/.../10% TC25/50/100 <10ppm/V	1/2/5/10/20% TC25/50/100 <25ppm/V	1/2/5/10/20% TC100/250 <25ppm/V	2/5/10/20% TC100/250 <100ppm/V	5/10/20/30% TC250/500 <250ppm/V	10/20/30/50% TC500/1000 <500ppm/V
4020	2.0	4000	6000	1/.../10% TC25/50/100 <5ppm/V	1/2/5/10/20% TC25/50/100 <10ppm/V	1/2/5/10/20% TC25/50/100 <10ppm/V	2/5/10/20% TC50/100 <25ppm/V	5/10/20/30% TC100/250 <100ppm/V	5/10/20/30% TC250/500 <250ppm/V
1 ) TCR25/50: Temperature range +25°C~+85°C
2 ) VCR measured between 10V and 100V
Closed values of tolerance, TCR and VCR, other dimensions or voltage dividers on request and agreement

Performance

Test Item	Specifications			Test Methods
	≤1G	1G~10G	>10G
Long term stability				/
High temperature store	<1%	<2%	<5%	125°C, 1000h
Load life	<0.5%	<1%	<2%	70°C, PR, 1000h
