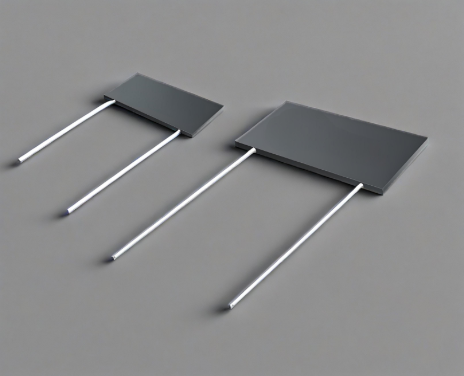

TYHVR High - Voltage Thick - Film Resistor

Features

High - voltage thick - film resistors
Variable lead span by bending
Resistance values up to 10 Teraohm
Low values of TCR and VCR

Applications

All kinds of electrical equipments

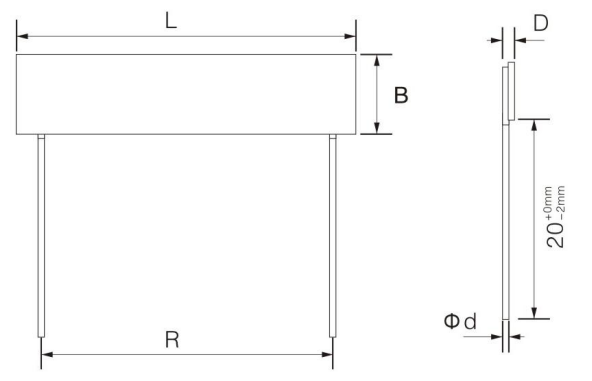

Dimensions (mm)

size	L	B	D	R	d
TYHVR30	30.0	6.0	1.4	27.5	0.40±0.05
TYHVR40	40.0	6.0	1.4	37.8	0.40±0.05
TYHVR50	50.0	12.5	1.4	47.8	0.40±0.05
L = Length, B = Width, D = Thickness, d = wire diameter (in mm)
R = standard lead spacing (other spacing possible by bending)
Tolerance of dimensions: ±0.5mm

Performance

Test Item	Specifications		Test Methods
	≤10G	>10G
Long term stability			/
High temperature store	<1%	<2%	125°C, 1000h
Load life	<1%	<2%	70°C, PR, 1000h

Technical Specifications

Type	Rating PowerP₇₀ (W)	Working Voltage	Resistance Range/Tolerance/TCR¹/VCR²
			1M - 100M	>100M - 1G	>1G - 100G	>100G - 1T	>1T - 10T
TYHVR30	1.0	10KV	0.25/.../10% TC25/50/100 <2ppm/V	1/2/5/10/20% TC50/100/250 <5ppm/V	5/10/20/30% TC250/500 <20ppm/V	5/10/20/30% TC500/1000 <100ppm/V	-
TYHVR40	1.2	20KV	0.25/.../10% TC25/50/100 <1ppm/V	1/2/5/10/20% TC50/100/250 <2ppm/V	5/10/20/30% TC250/500 <10ppm/V	5/10/20/30% TC500/1000 <50ppm/V	-
TYHVR50	3.0	30KV	0.25/.../10% TC25/50/100 <1ppm/V	1/2/5/10/20% TC25/50/100 <1ppm/V	5/10/20/30% TC100/250 <5ppm/V	5/10/20/30% TC250/500 <25ppm/V	10/20/30% TC/VCR on request

Remarks:

1 ) TCR25/50: Temperature range +25°C~+85°C

2 ) VCR measured between 10V and 100V

Closed values of tolerance, TCR and VCR, other dimensions or voltage dividers on request and agreement
