TYCHS High Resistance Thick Film Chip Resistor

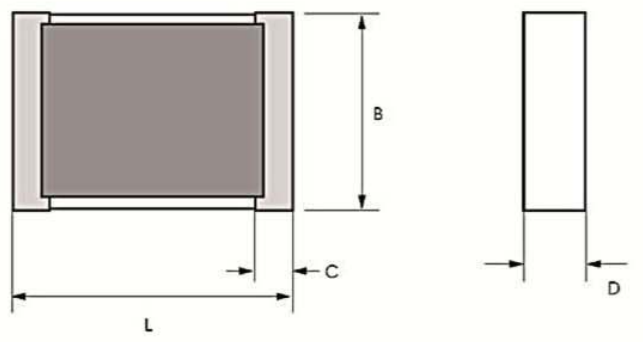

Dimensions

Type	L (mm)	B (mm)	D (mm)	C (mm)
0402	1.04 ± 0.05	0.50 ± 0.05	0.30 ± 0.05	0.1 +0.1/-0.05
0603	1.50 +0.15/-0.05	0.80 +0.15/-0.05	0.40 +0.15/-0.05	0.2 +0.2/-0.1
0805	2.00 +0.15/-0.05	1.25 +0.15/-0.05	0.40 +0.15/-0.05	0.3 +0.2/-0.1
1206	3.20 +0.15/-0.05	1.50 +0.2/-0.05	0.40 +0.15/-0.05	0.3 +0.2/-0.1
1210	3.20 +0.15/-0.05	2.50 +0.2/-0.05	0.50 +0.15/-0.05	0.8 ± 0.2
2512	6.30 +0.15/-0.05	3.50 +0.2/-0.05	0.60 +0.15/-0.05	0.9 ± 0.2
4020	10.20 +0.15/-0.05	5.10 +0.2/-0.05	0.60 +0.15/-0.05	0.9 ± 0.2

Product Features

Feature	Details
Technology	Thick Film High-Value Chip Resistors
Operating Conditions	Low Temperature and Voltage Dependency
Electrode Material	PtAg Electrodes for Gluing and Soldering
Voltage Application	Untrimmed for Higher Voltage Applications (up to 6000V)

Application Areas

Application	Details
Analytical Instruments	Analyzing Instruments and Meters
Computers and Telecom	Computers, Telecom, and Wireless
Military Electronics	Military Electronic Equipment
Medical Electronics	Medical Electronic Applications (e.g., X-Ray Machines, Neutronic Devices, High Voltage Devices)

Technical Specifications

Type	Rated Power $P_{s}$ (mW)	Working Voltage (V)	Resistance Ranges/Tolerances/TCR(ppm/℃)/VCR
0402	50	30 (trimmed), 90 (untrimmed)	10M~100M: 5/10/20% TC50/100 < 500ppm/V
0603	75	75 (trimmed), 200 (untrimmed)	10M~100M: 1/5/10/20% TC50/100 < 250ppm/V
0805	125	100 (trimmed), 300 (untrimmed)	10M~100M: 0.5/1/5/10/20% TC50/100 < 1000ppm/V
1206	250	200 (trimmed), 600 (untrimmed)	10M~100M: 0.5/1/5/10/20% TC25/50/100 < 1000ppm/V
1210	350	300 (trimmed), 900 (untrimmed)	10M~100M: 0.5/1/5/10/20% TC25/50/100 < 1000ppm/V
2512	1000	1000 (trimmed), 2000 (untrimmed)	10M~100M: 0.5/1/5/10/20% TC25/50/100 < 1000ppm/V
4020	1500	4000 (trimmed), 6000 (untrimmed)	10M~100M: 0.5/1/5/10/20% TC25/50/100 < 1000ppm/V

Performance Indicators

Parameter	Details
Temperature Range	-55℃ ~ 155℃
Climatic Category	55/155/56 acc. IEC 60068
Solderability	235℃ 2s acc. IEC 60068-2-58
Max Soldering Temperature	260℃ 10s acc. IEC 60068-2-58
Long Term Stability	High-Temperature Storage 125℃/1000h: <1G: <1%, <10G: <2%, ≥10G: <5%
Max Voltage/1000h	<1G: <0.5%, <10G: <1%, ≥10G: <2%

Notes:

For continuous power dissipation, ensure sufficient heat conduction via solder pad dimensions.
Temperature coefficient (TC25/50) applies to the range +25℃ ~ +85℃.
Lower tolerance, TCR, and VCR values available upon request and agreement.
Components should be stored in nitrogen for up to 6 months after shipment.
