TYRIP (TYRI80) Precision High - Resistance High - Voltage Resistor

Features

Non - inductance design
High precision
High voltage withstanding
Wide resistance range

Applications

All kinds of electrical equipments

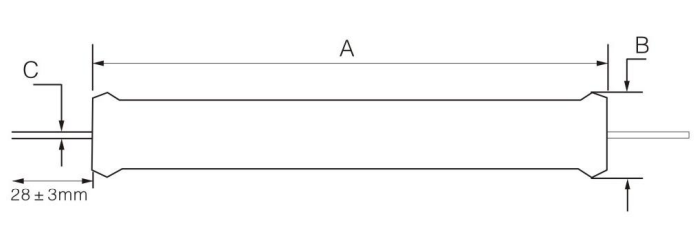

Dimensions (mm)

size	A	B	C
TYRIP20	20.20	8.20	1.00
TYRIP26	26.90	8.20	1.00
TYRIP32	33.00	8.20	1.00
TYRIP39	39.50	8.20	1.00
TYRIP52	52.10	8.20	1.00
TYRIP78	77.70	8.20	1.00
TYRIP103	102.90	8.20	1.00
TYRIP124	123.70	8.20	1.00
TYRIP154	153.70	8.20	1.00

Technical Specifications

Type	Rated power (W) Ambient temperature = 75°C	Rated power (W) Ambient temperature = 125°C	Max Working Voltage (KV)	Resistance (Ω)		Tolerance range	TCR (10⁻⁶/K)
				Min	Max
TYRIP20	2.5	1.5	4.8	200	1G	±1% ±5% ±10%	25 50 100
TYRIP26	3.7	2.5	6.4	250	1G
TYRIP32	4.5	3.0	8.0	300	1.5G
TYRIP39	5.2	4.0	12.8	400	1.5G
TYRIP52	7.5	5.0	16	500	2.5G
TYRIP78	11	7.5	24	900	4G
TYRIP103	12	8.0	32	1K2	6G
TYRIP124	15	10	40	1K5	8G
TYRIP154	20	15	45	2K	10G

Performance

Test Item	Specifications	Test Methods
Load Life	ΔR ≤ 0.5%R	+125°C, PR, 1000h
Overload	ΔR ≤ 0.5%R	5PR, 5s
Thermal shock	ΔR ≤ 0.25%R	PR, 30min/ - 55°C, 15min
Moisture Resistance	ΔR ≤ 0.4%R	40°C, RH93 ± 3%, 240h
