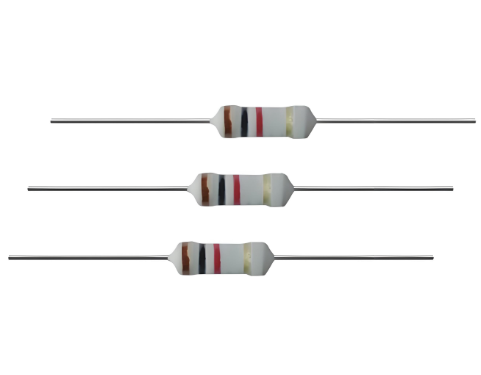

TYRI40 High - Resistance Glass Glaze Film Resistor

Features

Low noise, high temperature resistant, moisture - proof, shock - withstanding
High resistance value, high voltage
Blue or grey coating colour circle marking
Blistertape and lead forming

Applications

All kinds of electrical equipments

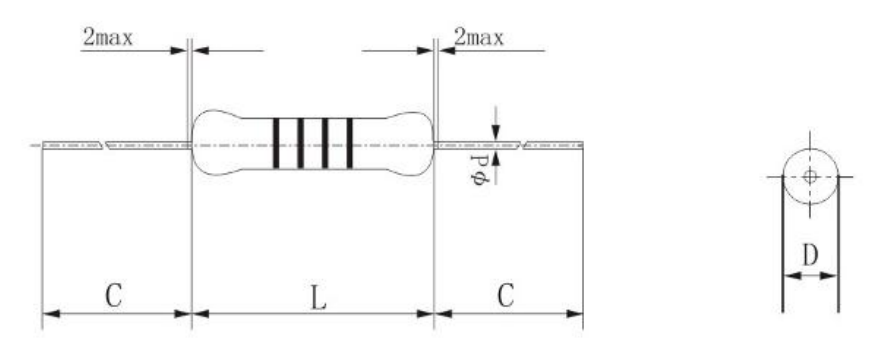

Dimensions (mm)

size	Lmax	Dmax	d ± 0.05	C ± 3
TYRI40 - 1/4W	7.0	2.5	0.6	25.0
TYRI40 - 1/2W	10.5	3.9	0.6/0.7	25.0
TYRI40 - 1W	14	5.5	0.8	33.0
TYRI40 - 2W	17	6.5	0.8	32.0

Technical Specifications

Type	Rated Power	Resistance Range	Tolerance	TCR (10⁻⁶/K)	Max Working Voltage (V)	Insulate Voltage (V)
TYRI40 - 1/4W	1/4	100KΩ - 10MΩ	±5%	±500	350	350
TYRI40 - 1/2W	1/2	100KΩ - 32MΩ			500	500
TYRI40 - 1W	1	100KΩ - 56MΩ	±10%		700	700
TYRI40 - 2W	2	100KΩ - 100MΩ			700	700

Performance

Test Item	Specifications	Test Methods
Solderability	≥95%	235 ± 5°C, 2 ± 0.5s
Short Time Overload	ΔR ≤ ±(1%R + 0.05Ω)	2.5VR, 5s
Rapid temperature change	ΔR ≤ ±(1%R + 0.05Ω)	- 55°C, 30min/125°C, 30min 5 cycles
Leaching	ΔR ≤ ±(1%R + 0.05Ω)	350 ± 10°C, 3.5 ± 0.5s
Temperature cycling	ΔR ≤ ±(5%R + 0.1Ω)	125°C, 16h/55°C, RH93 ± 3%, 24h/ - 55°C, 2h/15 - 35°C, 8.5KPa, 1h
Endurance at 70°C	ΔR ≤ ±(5%R + 0.1Ω)	70 ± 2°C, PR, 1000h
