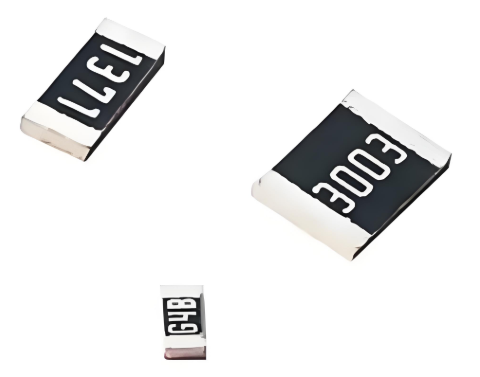

TYTRM Thick Film Chip Resistor

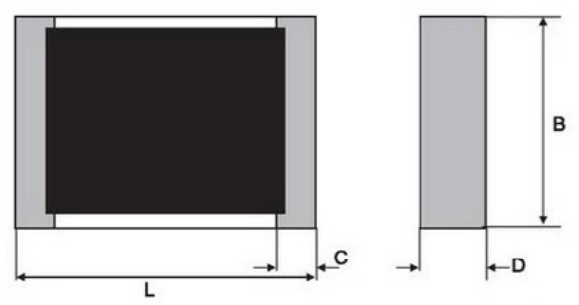

Dimensions with Imperial Size Notation

Size (Imperial)	L (mm)	B (mm)	D (mm)	C (mm)
0603	1.60 ± 0.20	0.80 ± 0.13	0.4 ± 0.15	0.30 ± 0.20
0805	2.00 ± 0.20	1.25 ± 0.13	0.5 ± 0.15	0.40 ± 0.20
1206	3.20 ± 0.20	1.60 ± 0.13	0.5 ± 0.15	0.50 ± 0.25
1210	3.20 ± 0.20	2.50 ± 0.15	0.5 ± 0.15	0.50 ± 0.25

Characteristics

Characteristic	Details
Technology	Thick Film Technology
Precision	High Precision (0.5%)
Anti-Sulfuration	Yes

Model Specifications

Model	Rated Power at 70℃ (W)	Max Working Voltage (V)	Resistance Range (Ω)	Tolerance Range	TC-Range (10^-7/K)
0603	0.063	50	10R ~ 1M	D(±0.5%), F(±1.0%), J(±5.0%)	H(±50), K(±100), M(±300)
0805	0.10	50	10R ~ 1M	D(±0.5%), F(±1.0%), J(±5.0%)	H(±50), K(±100), M(±300)
1206	0.25	100	10R ~ 2M	D(±0.5%), F(±1.0%), J(±5.0%)	H(±50), K(±100), M(±300)
1210	0.50	150	10R ~ 2M	D(±0.5%), F(±1.0%), J(±5.0%)	H(±50), K(±100), M(±300)

Performance Characteristics

Test Items	K Characteristic ( $\pm 100 (1 0^{-} 6/ K)$ )	M Characteristic ( $\pm 300 (1 0^{-} 6/ K)$ )	Test Method
Short Time Overload	$Δ R \leq \pm (0.25% R + 0.01Ω)$	$Δ R \leq \pm (0.50% R + 0.01Ω)$	2.5 times rated voltage, not exceeding 2 times component limit voltage, 5s
Temperature Shock	$Δ R \leq \pm (0.50% R + 0.01Ω)$	$Δ R \leq \pm (0.50% R + 0.01Ω)$	-65℃ ~ 150℃, 5 cycles
Low Temp. Operation	$Δ R \leq \pm (0.25% R + 0.01Ω)$	$Δ R \leq \pm (0.50% R + 0.01Ω)$	-65℃, rated load voltage for 45min
Resistance to Dry Heat	$Δ R \leq \pm (0.50% R + 0.01Ω)$	$Δ R \leq \pm (0.10% R + 0.01Ω)$	150℃ for 100h
Resistance to Solder	$Δ R \leq \pm (0.25% R + 0.01Ω)$	$Δ R \leq \pm (0.25% R + 0.01Ω)$	245℃ ± 5℃, 60 ± 5s
Resistance to Moisture	$Δ R \leq \pm (0.50% R + 0.01Ω)$	$Δ R \leq \pm (0.50% R + 0.01Ω)$	10 cycles
Load Life	$Δ R \leq \pm (0.50% R + 0.01Ω)$	$Δ R \leq \pm (0.50% R + 0.01Ω)$	70℃, rated load, 2000h
