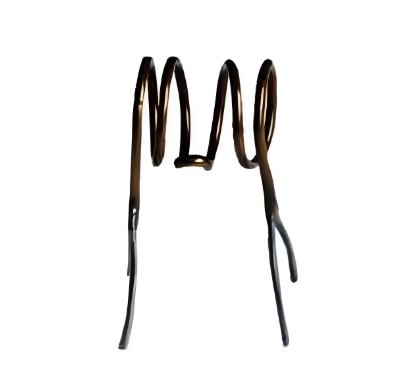

TYRX79 precision wire - wound resistors
Product Features
Low resistance value
Close accuracy
Low temperature coefficient
Copper terminal with perfect solderability
Applications
Used in meters and instruments
Type and Dimensions (mm)
| Type | L±1 | RM±1 | H±1 | D±1 | h±1 | d±0.2 | T±1 |
|---|---|---|---|---|---|---|---|
| TYRX79 - 1 | 13 | 12 | 32 | 12.5 | 15 | 0.8 | 12 |
| TYRX79 - 2 | 13 | 12 | 32 | 12.5 | 15 | 1.0 | 12 |
| TYRX79 - 6 | 28 | 25 | 55 | 17 | 20 | 3.0 | 12.5 |
| ※ Above dimensions can be changeable if requested by customer. |
Technical Specifications
| Type | Rated power(w) (Ambient temperature=70℃) | Resistance Range(Ω) | Tolerance | Temperature coefficient (10⁻⁶/K) | |
|---|---|---|---|---|---|
| Min | Max | ||||
| TYRX79 - 1 | 1.0 | R01 | R10 | ±0.1%(B), ±0.25%(C), ±0.5%(D), ±1%(F) | ±10 |
| TYRX79 - 2 | 2.0 | R01 | R10 | ±20 | |
| TYRX79 - 6 | 6.0 | R01 | R10 | ±25, ±50 |
WHATSAPP
LINE
WECHAT
SKYPE
In addition to TYRX79 precision wire - wound resistors, we also focus on the following resistors:
-
TYRX79 precision wire - wound resistors
-
TYRX71 series precision wire - wound resistors
-

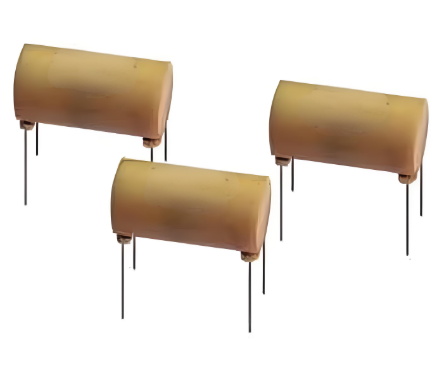

TYRX10 low - resistance - value precision wire - wound resistors
-

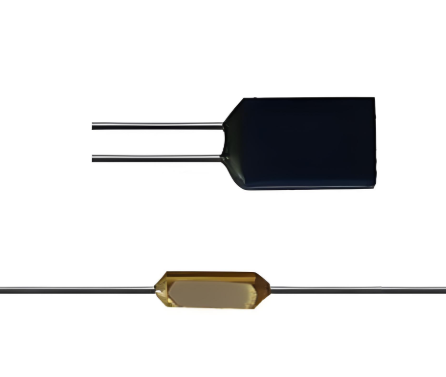

TYRX75 small - size precision wire - wound resistors
-

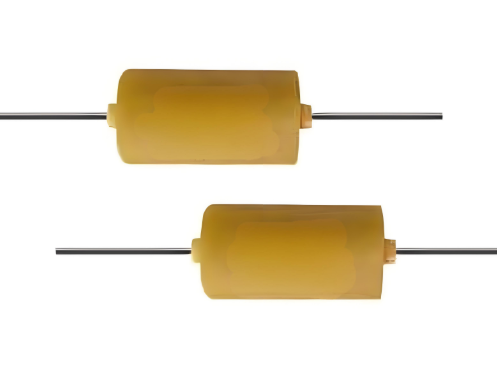

TYRX78 high - resistance - value precision wire - wound resistors
-

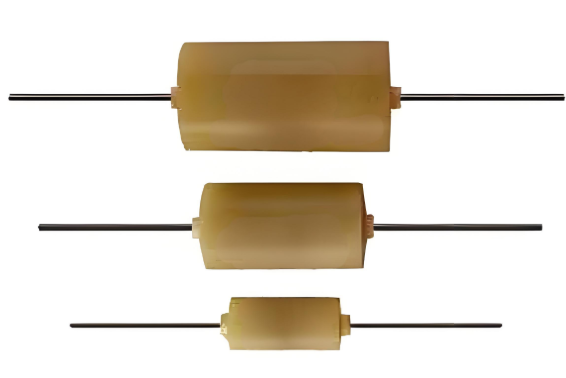

TYRX70 series high - precision wire - wound resistors
-

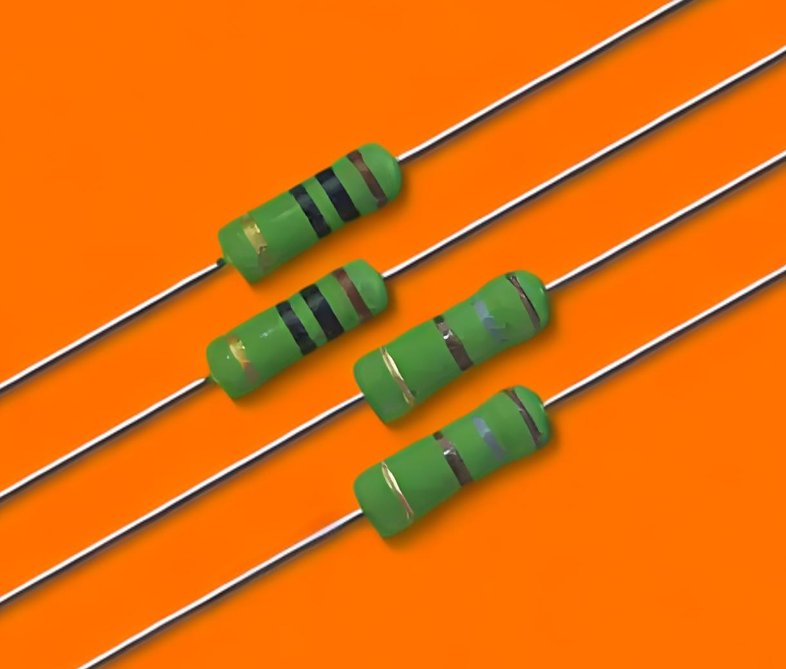

Wire Wound Resistors
-

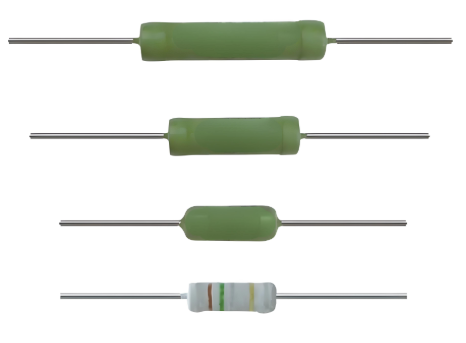

RX21 coated wire - wound resistors
-

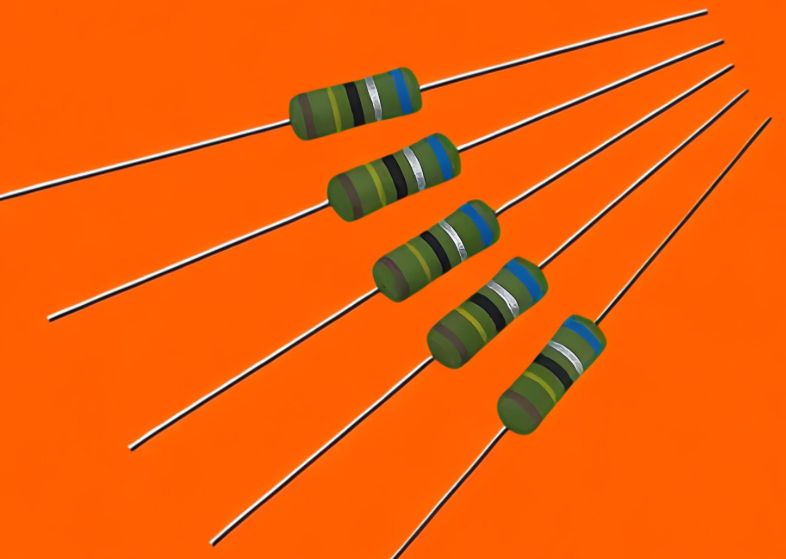

Anti-Surge Wire Wound Resistors
-

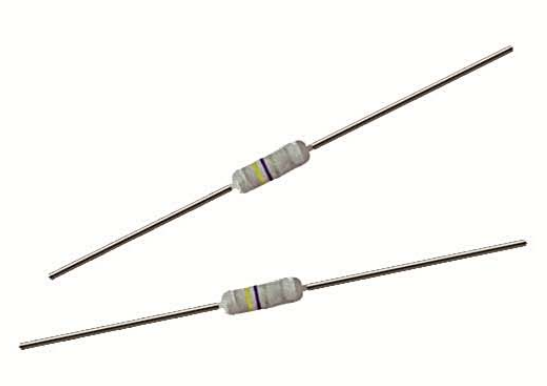

RXF21A/B/C (FRT) wire - wound fusing resistors
-
RXL power aluminum encased wire - wound resistors
-

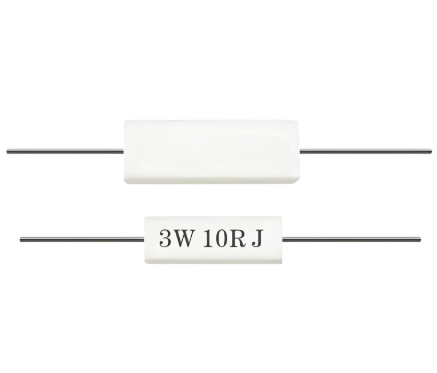

RX23 ceramic encased wire - wound resistors
-

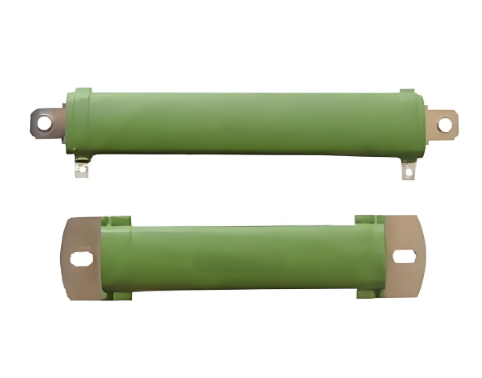

RXBRXB1 Flat coated wire - wound resistors
-

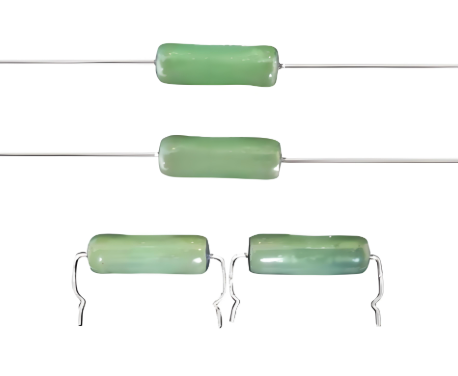

RX22 Vitreous enameled wire - wound resistors
-

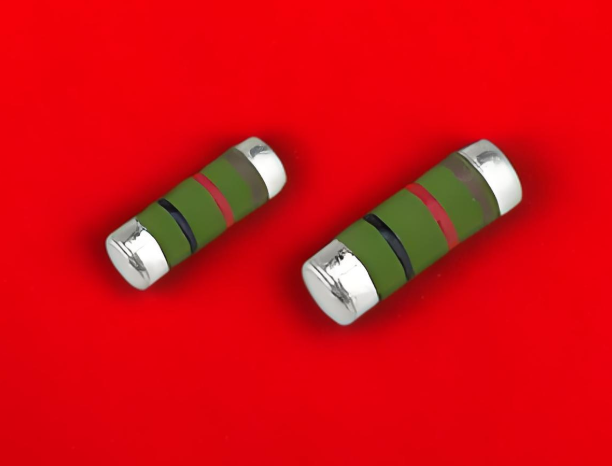

Anti-Surge Wire Wound MELF Resistors
-

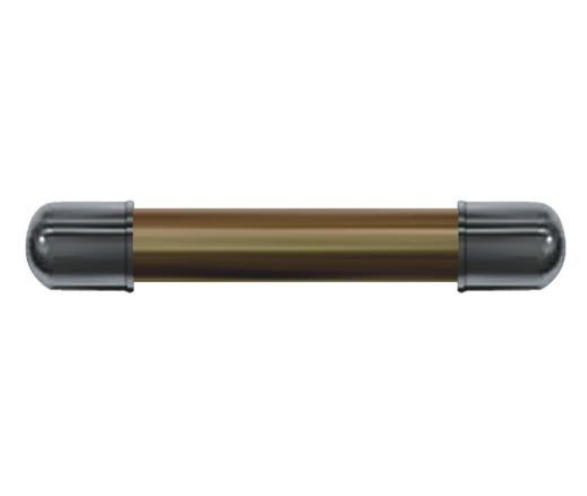

RX92 anti - interference wire - wound resistors
-

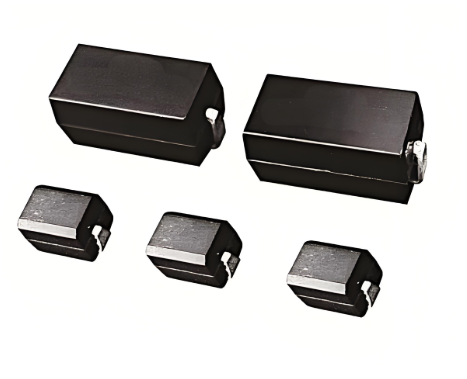

RSC molded - type surface - mount wire - wound resistors
-
RX27 power ceramic encased wire - wound resistors
-

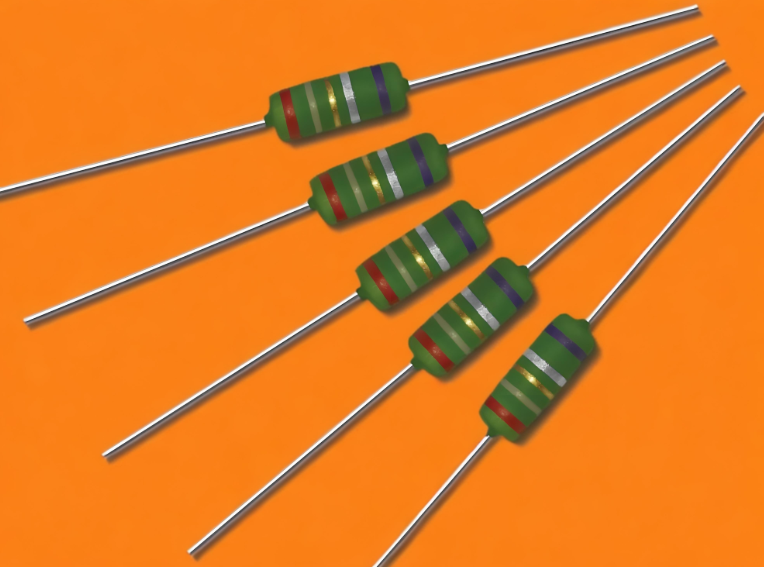

Anti-Surge Wire Wound Fast-Fuse Resistors
-

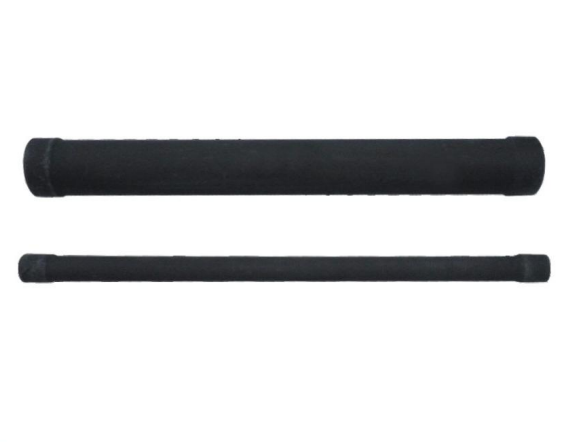

RXGM high power coated wire - wound resistors
-

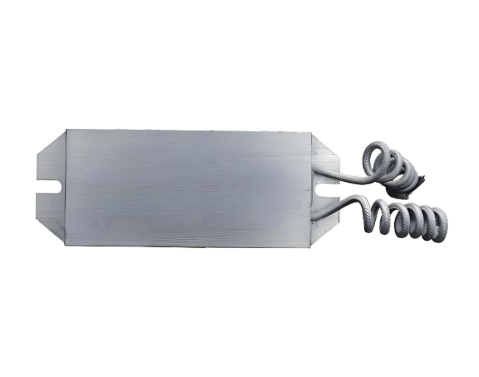

RXLB power aluminum encased wire - wound resistors
-

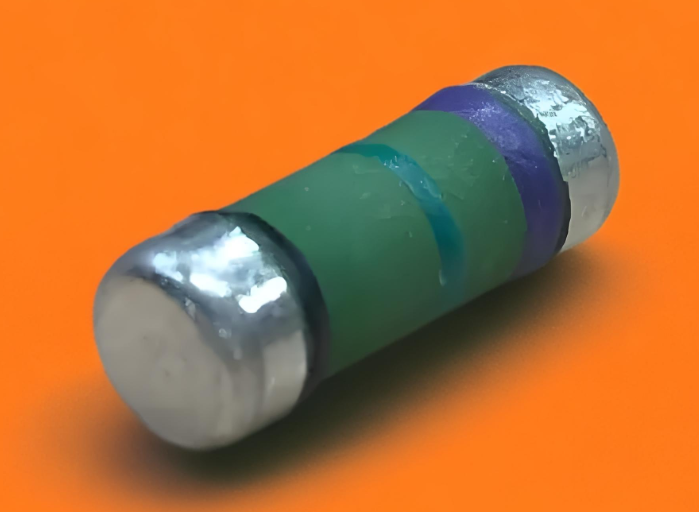

Anti-Surge Wire Wound MELF Resistors-Xseries
-

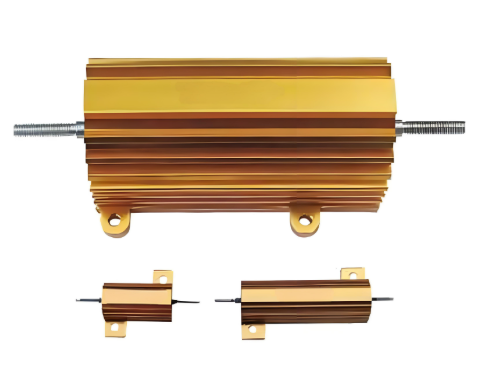

RX24 aluminum encased power wire - wound resistors
-

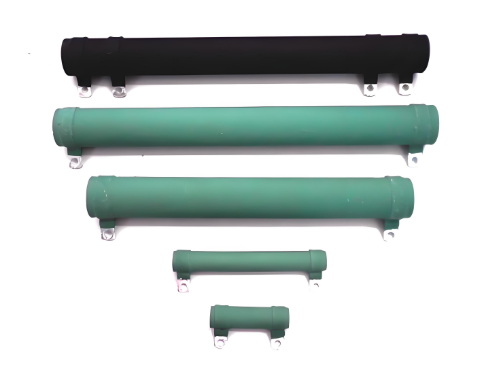

RXGI high power coated wire - wound resistors
