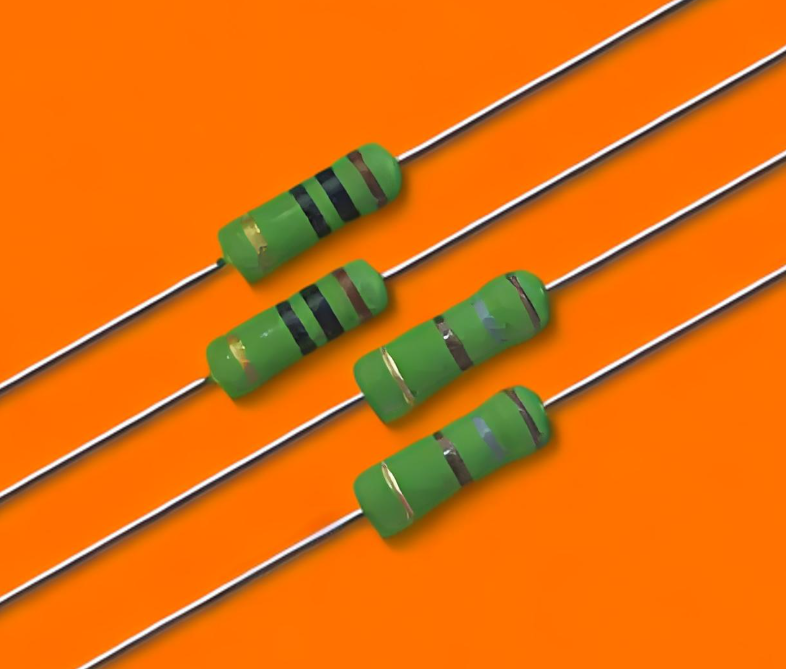

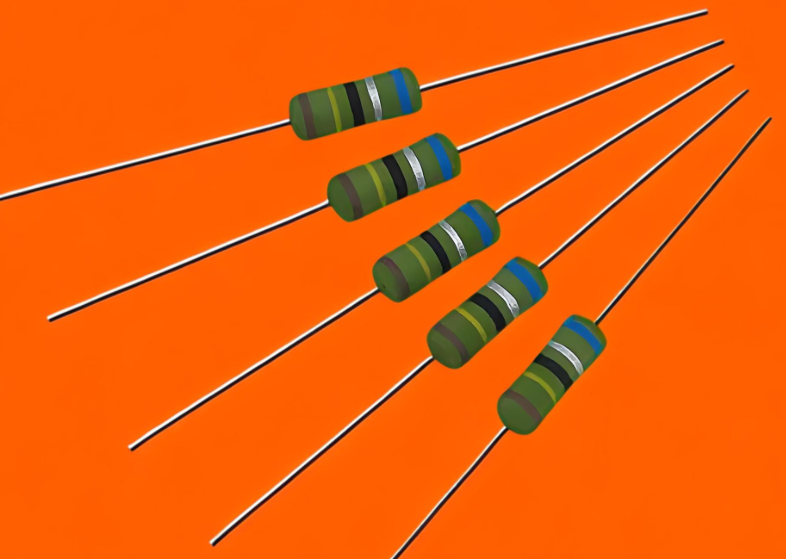

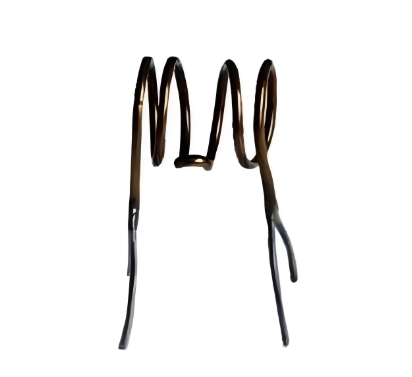

Wire Wound Resistors

Wire Wound Resistor boasts a robust power rating that spans from 0.5W to 8W, accommodating a wide array of applications requiring precision and reliability. Its resistance range, extending from 100m ohm to 3.3K ohm, allows for fine-tuning of electrical circuits. Designed to endure harsh conditions, this resistor maintains long-term stability even under large loads and high ambient temperatures, ensuring consistent performance over time. The flameproof multi-layer coating, compliant with UL 94 V-0 standards, adds an extra layer of safety, while the resistor's adherence to UL 1412 overload testing further guarantees its durability. The color code, adhering to MIL & EIA standards, facilitates easy identification and integration. Additionally, the resistor features high-quality, special tin-plated electrolytic copper lead wires for enhanced conductivity and corrosion resistance.

Type	Body Length (L, mm)	Body Diameter (D, mm)	Lead Wire Length (H, mm)	Lead Wire Diameter (d, mm)
1/2W	8.80 ± 1.0	3.2 ± 0.2	28 ± 3.0	0.6 ± 0.03
1W	11.0 ± 1.0	4.0 ± 0.5	28 ± 3.0	0.7 ± 0.03
2W	13.5 ± 1.0	5.0 ± 0.5	30 ± 3.0	0.8 ± 0.03
3W	15.5 ± 1.0	5.5 ± 0.5	30 ± 3.0	0.8 ± 0.03
4W/5W	19.0 ± 1.0	6.0 ± 0.5	30 ± 3.0	0.8 ± 0.03
6W	24.0 ± 1.0	8.0 ± 0.5	35 ± 3.0	0.8 ± 0.03
7W/8W	31.5 ± 1.0	8.0 ± 0.5	30 ± 3.0	0.8 ± 0.03

Power Rating (at 70°C)	Maximum Working Voltage	Maximum Overload Voltage	Minimum Resistance	Maximum Resistance	Resistance Tolerance
1/2W	350V	600V	0.12Ω	3902Ω	±2%, ±5%
1W	350V	600V	0.12Ω	4492Ω	±2%, ±5%
2W	350V	700V	0.12Ω	5492Ω	±2%, ±5%
3W	350V	700V	0.12Ω	10000Ω	±2%, ±5%
4W/5W	450V	800V	0.12Ω	10000Ω	±2%, ±5%
6W	500V	1000V	0.12Ω	30000Ω	±2%, ±5%
7W/8W	600V	1200V	0.12Ω	30000Ω	±2%, ±5%

Characteristics	Limits
Temperature Coefficient 1/2W to 8W, PPM / °C*	±100, ±300
Operating Temperature Range, °C	-55 ~ +200
Insulation Resistance, MΩ	10⁴

Indicates that the temperature coefficient values may vary depending on specific conditions.
