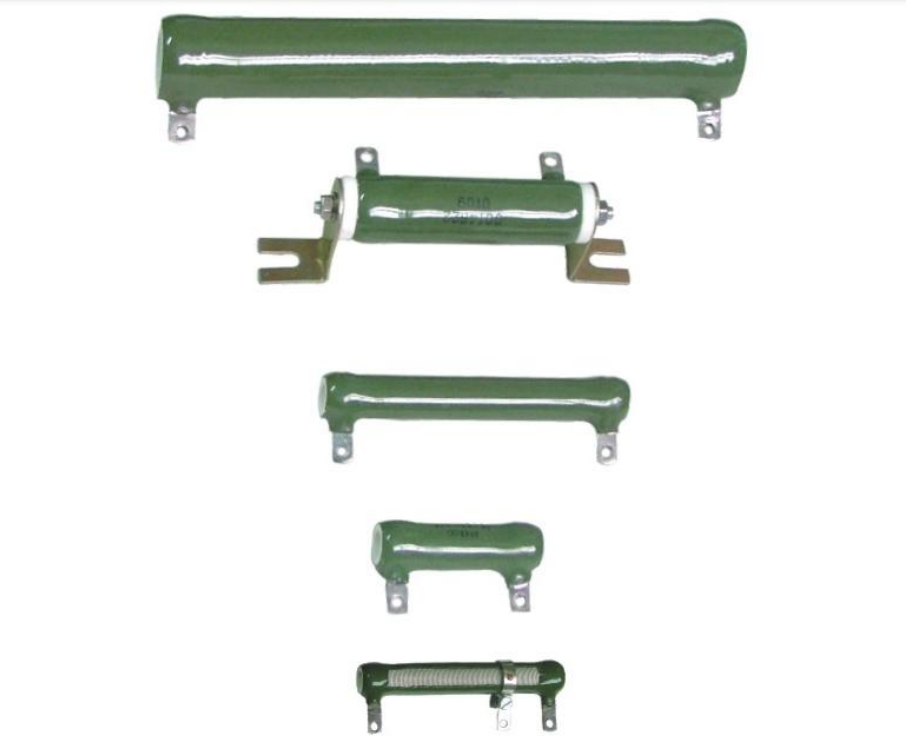

RX20 high power vitreous enameled wire - wound resistors

Features

High temperature vitreous enamel as the superficial coating
Uses the high temperature fireproof alumina porcelain body, full - welded structure
Excellent high temperature load performance
T series is adjustable, N series is noninductive
Assembly and fittings (available)

Applications

Mostly used in large scale power supply electrical equipment, locomotive etc

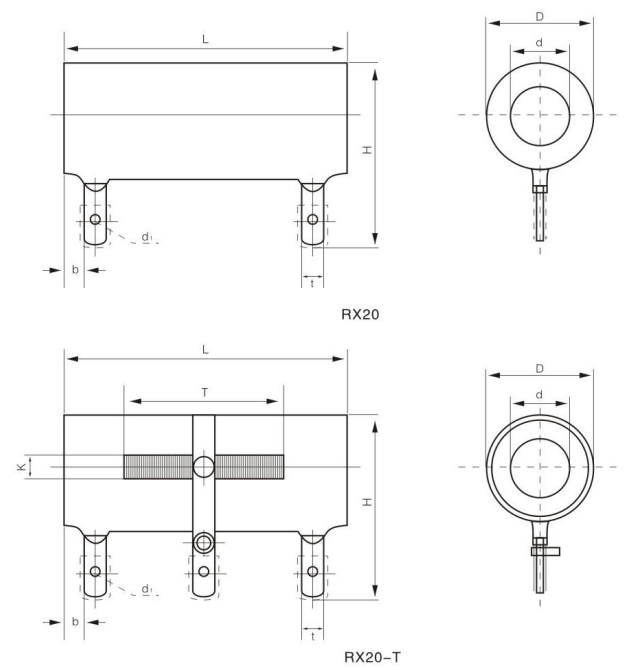

Dimensions (mm)

Rated Power (W)	Dimensions(mm)
	L	D	d	H	K	b	t	d₁
10	41	14	5.5	28.5	6 + 2	3.5	4.5	2
16	45	17	8	32	6 + 2	3.5	4.5	2
20	51	17	8	32	6 + 2	3.5	4.5	2
25	51	21	12	35	6 + 2	3.5	4.5	2
30	71	21	12	35	6 + 2	3.5	4.5	2
40	87	21	12	35	6 + 2	3.5	4.5	2
50	91	29	20	43	7 + 2	4.5	6	3.2
75	140	29	20	43	7 + 2	4.5	6	3.2
100	170	29	20	43	7 + 2	4.5	6	3.2
150	216	29	20	46	7 + 2	6	10	5
200	267	29	20	46	7 + 2	6	10	5
300	267	34	20	50	7 + 2	6	10	5

Technical Specifications

Rated Power (W)	Resistance Range(Ω)		TCR (10⁻⁶/K)	Tolerance	Operating Temp. range
	RX20T	RX20
10	5.1 - 100	5.1 - 10K	±250	±5% ±10%	- 55°C - +350°C
16	5.1 - 150	5.1 - 15K
20	5.1 - 200	20 - 20K
25	10 - 300	10 - 24K
30	10 - 500	10 - 30K
40	20 - 600	20 - 51K
50	20 - 1K	20 - 51K
75	20 - 1.5K	24 - 56K
100	24 - 2K	24 - 62K
150	27 - 3K	27 - 100K
200	27 - 5K	27 - 110K
300	30 - 6K	30 - 120K
