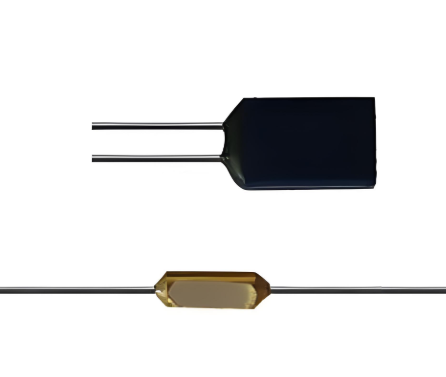

TYRX75 small - size precision wire - wound resistors

Features

Meets IEC (International Electrotechnical Commission) standards
Resistance value series according to the E series of IEC63
Excellent stability
High reliability, with stability classes: RX75 - 2: 0.25%, RX75 - 3: 0.5%
High precision and low temperature coefficient
Small size

Applications

Used in meters and instruments

Technical Specifications

Type	Power (W)	Resistance Range (Ω)	Tolerance (%)	T.C.R (10⁻⁶/K)
RX75 - 2 (RX12 - 2)	0.125	10 - 51K	±0.05(W) ±0.1(B) ±0.25(C) ±0.5(D) ±1(F)	±10 ±15 ±20 ±25
	0.25	10 - 200K
RX75 - 3 (RX12 - 3)	0.125	5.1 - 47K

Limiting and Insulation Voltages

Limiting Voltage (DC or AC RMS)	Insulation Voltage (DC or AC Peak)
75	100
250	350
75	100

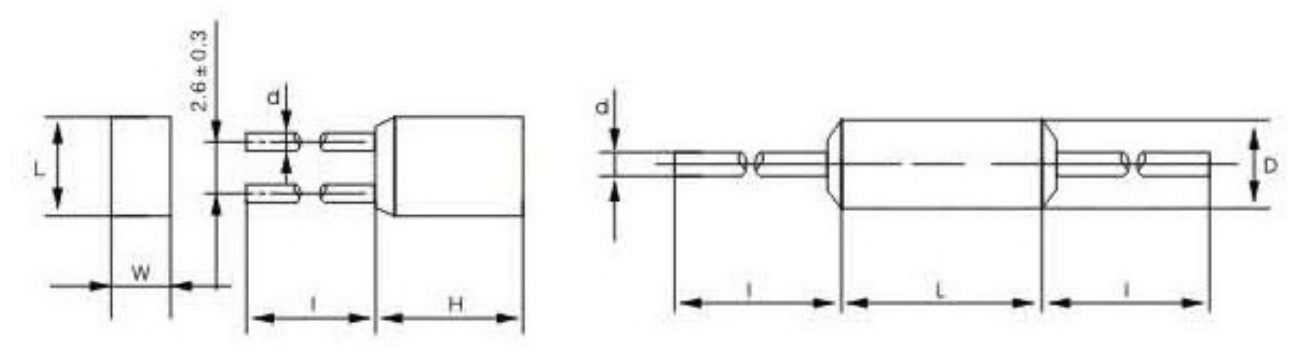

Dimensions (mm)

Body (L±0.3)	Body (W±0.3)	Body (H±0.3)	Terminal (d±0.05)	Terminal (l)
8	4.5	8	0.6	13±5
8	6	13
3.2 (D)	10 (L)		0.6	23±2
