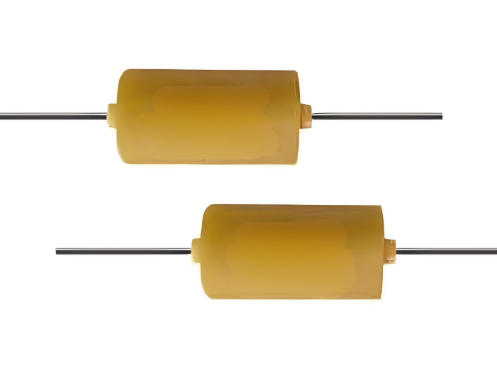

TYRX78 high - resistance - value precision wire - wound resistors

Product Features

High resistance value
Resistance value series according to E series of IEC63
Excellent stability
Reliability up to 0.25% and 1×10⁻⁵/h
Close precision
Perfect temperature coefficient
Excellent properties of insulation and humidity - proof

Applications

Used in meters and instruments

Type RX78 (RX9 - 20)

Type	Power (W)	Resistance Range (Ω)	Tolerance (%)	Temperature Coefficient of Resistance T.C.R (10⁻⁶/K)
RX78 (RX9 - 20)	1	1M - 10M	±0.05(W), ±0.1(B), ±0.25(C)	±10, ±20
RX78 (RX9 - 20)	2	1M - 20M	±0.5(D), ±1(F)	±25

Limiting Voltage (DC or AC RMS.) and Insulation Voltage (DC or AC Peak)

Limiting Voltage (DC or AC RMS.)	Insulation Voltage (DC or AC Peak)
1000	1400

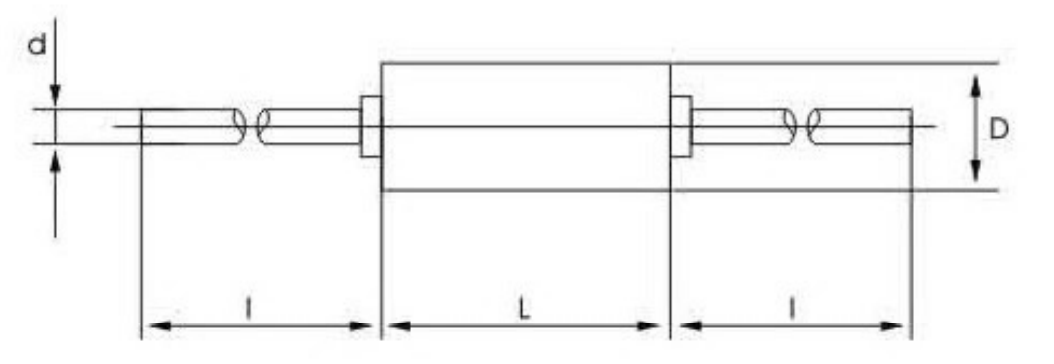

Size (mm)

Body		Terminal
Dmax	Lmax	d	l
11.5	23	0.8	25
11.5	39	0.8	25
