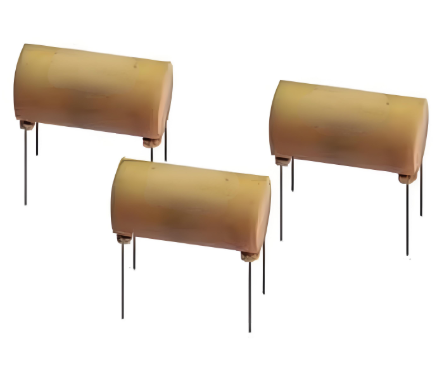

TYRX10 low - resistance - value precision wire - wound resistors

Product Features

Low resistance value, low TCR, high precision
Excellent properties of insulation and humidity - proof

Applications

Used in meters and instruments
Other electrical equipments

Type RX10

Type	Power (W)	Resistance Range (Ω)	Tolerance (%)	Temperature Coefficient T.C.R (10⁻⁶/K)
RX10	0.5	0.01 - 1.0	±0.05(W), ±0.1(B), ±0.25(C), ±0.5(D), ±1(F)	±10
RX10	1	0.01 - 1.0		±20
RX10	2	0.01 - 1.0		±25

Limiting Voltage (DC or AC R.M.S.) and Insulation Voltage (DC or AC Peak)

Limiting Voltage (DC or AC R.M.S.)	Insulation Voltage (DC or AC Peak)
500	700
1000	1400

Size (mm)

Body		Terminal
Dmax±0.3	Lmax±0.3	d	l
12	25	0.8	25±3
15	27.5	0.8	25±3
18	38	0.8	25±3
