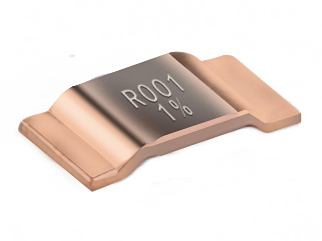

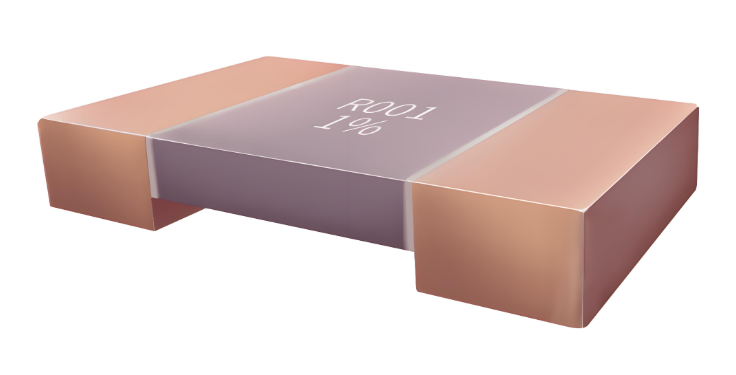

Alloy Shunt chip Resistors type R

Features


  • Tolerance ±5%, ±2%, ±1% and ±0.5%

  • Operating Temperature range -65°C~170°C

  • Electron beam welding

  • Ideal for pulse application

  • Low Inductance < 3nH

  • RoHS Compliant

  • Customizable


Applications


  • Frequency conversion drive, servo drive system

  • High current battery management system

  • Automobile electronic control unit, automobile oil pump drive

  • DC/DC, DC/AC power modules

  • Automatic control system

  • Industrial instrument and equipment



Element MaterialDimensionResistance ValueTolerance

  • S: CuMnSn

  • M: Manganin

  • K: Karma

  • F: FeCrAl

3920
5930		 (mΩ):-5J: ±5%
G: ±2%
F: ±1%
D: ±0.5%



Standard measuring conditions
Temperature 20±2°C, Humidity 65±5%. Being no doubt about the judgment, measurements can be made within the following Temperature 5~35°C, Humidity 45~85%.

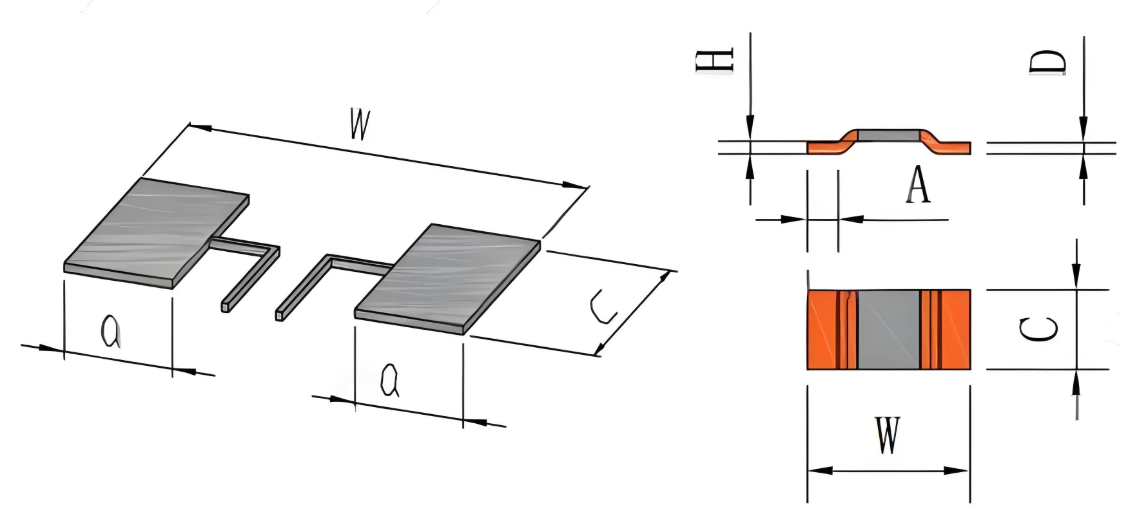

SizeW (mm)A (mm)C (mm)H (mm)Tolerance (mΩ)
25126.3±0.21.2±0.23.1±0.3
0.2~5
392010.0±0.22.2±0.25.1±0.40.5±0.10.2~4
593015.0±0.34.2±0.27.6±0.4
0.1~3



wca
73.41.8
116.22.7
168.755.2


SizeElement MaterialResistance (mΩ)Rthi (°C/W)D ±0.1 (mm)TCR (ppm/°C)P70 °C (W)
2512S0.231.4±1756
2512M0.351.5±1756
2512M0.560.93±1156
2512M1100.45±1005
2512K/F2150.65±705
2512K/F3240.43±704
2512K/F4270.31±703
2512K/F5400.28±703
3920M0.231.64±20012
3920M0.33.51.37±15010
3920M0.570.83±709
3920M0.790.55±708
3920M1100.4±507
3920K/F171.16±508
3920K/F214.50.56±506
3920K/F3220.37±505
3920K/F4240.28±505



SizeElement MaterialResistance (mΩ)Rthi (°C/W)D ±0.1 (mm)TCR (ppm/°C)P70 °C (W)
5930S0.122.0±20015
5930M0.231.5±10015
5930M0.53.50.6±7510
5930M0.7560.41±7510
5930K/F170.86±509
5930K/F1.5100.61±508
5930K/F2130.4±507
5930K/F317.50.29±507

TCR (ppm/°C) : Test conditions at 20°C~120°C.



Endurance test


ItemsAdditional RequirementsReferenceLimits
Temperature Cycling1000 Cycles (-55°C to +125°C)JESD22 Method JA - 104±0.5%
High Temperature Exposure100hrs. @T=170°C, Unpowered.MIL - STD - 202 Method 108±0.5%
Biased Humidity1000hrs 85°C/85%RH, Note: Specified conditions: 10% of operating power.MIL - STD - 202 Method 103±0.5%
Operational LifeCondition D Steady State TA=125°C at rated power.MIL - STD - 202 Method 108±0.5%
Solderability245°C±5°C, 5s±0.5sMIL - STD - 202 Method 208C95% Coverage Minimum
Resistance to Soldering Heat260°C±5°C, 10s±1sMIL - STD - 202 Method 210±0.5%
Short Time Overload5×Rated power for 5 sMIL - STD - 202 Method 301±0.5%
Vibration5 g's for 20 min, 12 cycles of each orientation. Note: Use 8×5" PCB. 0.31" thick 7 secure points on one long side and 2 secure points at corners of opposite sides. Parts mounted within 2" from any secure point. Test from 10 - 2000 Hz.MIL - STD - 202 Method 204±0.5%
Mechanical1) Pulse waveform: Half - Sine pulse.
2) Accelerate peak: 100 g.
3) Pulse duration: 6 ms.
4) Orientation & Shock time: ±X, ±Y, ±Z, 3 times each orientation, total 18 times.		MIL - STD - 202 Method 213±0.5%
ESD1) Direct Contact (DC): ±6 kV
2) Air Discharge (AD): ±12 kV, ±16 kV, ±25 kV		AEC - Q200 - 002 REV - B±0.5%
Board Flex1) PCB board size (H×W×t): 100 mm×40 mm×1.6 mm.
2) Press tool: r = 340 mm, Width = 20 mm.
3) Deformation displacement: 2 mm.
4) Duration: 60 (±5) s.		AEC - Q200 - 005 REV - A±0.5%
Terminal Strength1) Press tool: A pointed thruster with a radius of 0.5 mm.
2) Shear force: 17.7 N.		AEC - Q200 - 006 REV - A±0.5%
Flame Retardance1) Test current: 100%, 115%, 130%, 150% (rated current).
2) Test duration: 1 h.
The following constitutes a failure:
a) A flame over 3.0 seconds duration.
b) An explosion.
c) A temperature above 350°C sustained for over 10 seconds.		AEC - Q200 - 001 REV - B> 10 s for 350°C
Resistance to Solvents1) Solvent a: 1 part (by volume) of alcohol reagent grade and 3 parts (by volume) of a mixture of 80% (by volume) of kerosene and 20% (by volume) of ethylbenzene.
2) Solvent c: 9 parts (by volume) of D - limonene and 1 part of surfactant.
3) Solvent d: 42 parts (by volume) of water 1 part (by volume) of propylene glycol monomethyl ether 1 part (by volume) of monoethanolamine.		MIL - STD - 202H Method 215There was no missing, faded, smeared, blurred, or shifted (dislodged) separation, cracking, swelling, softening, degradation on the samples.
