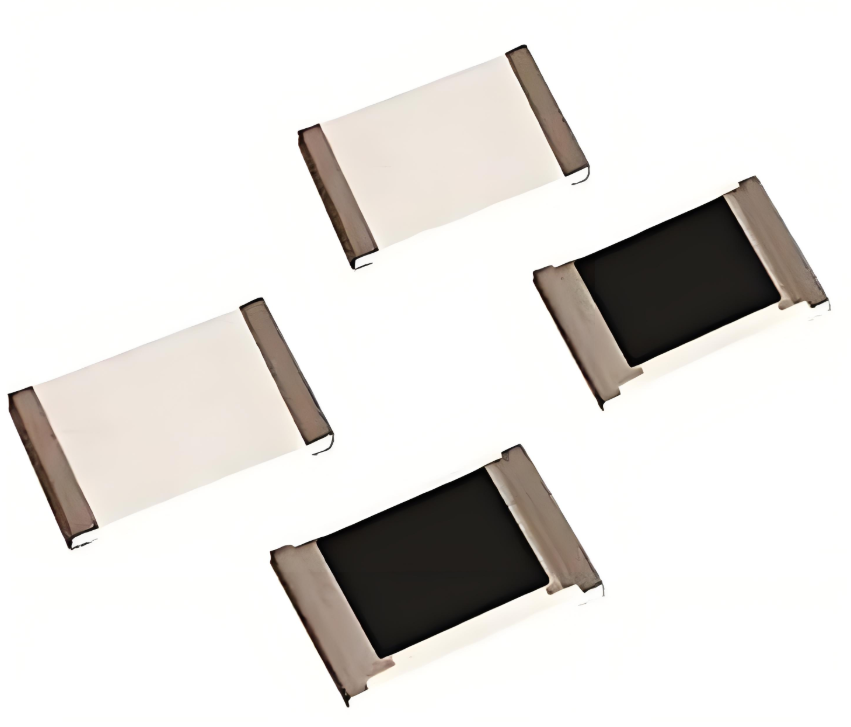

TYPCR Precision Thick Film Chip Resistor

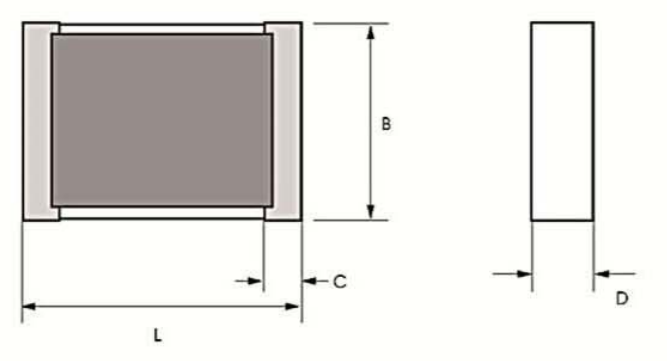

Type	L (Length) (mm)	B (Width) (mm)	D (Thickness) (mm)	C (Width of Wraparound) (mm)
0805	2.00 ± 0.10	1.25 ± 0.10	0.50 ± 0.10	0.35 ± 0.20
1206	3.10 ± 0.10	1.60 ± 0.10	0.55 ± 0.10	0.45 ± 0.20

Product Features

Feature	Details
Technology	Thick Film Technology
Precision	Close Tolerance
Temperature Coefficient	Low TCR

Application Areas

Application	Details
Computers	Computers
Telecom and Wireless	Telecom and Wireless
Precision Instruments	Precision Meters and Instruments
Electrical Devices	Electrical Devices

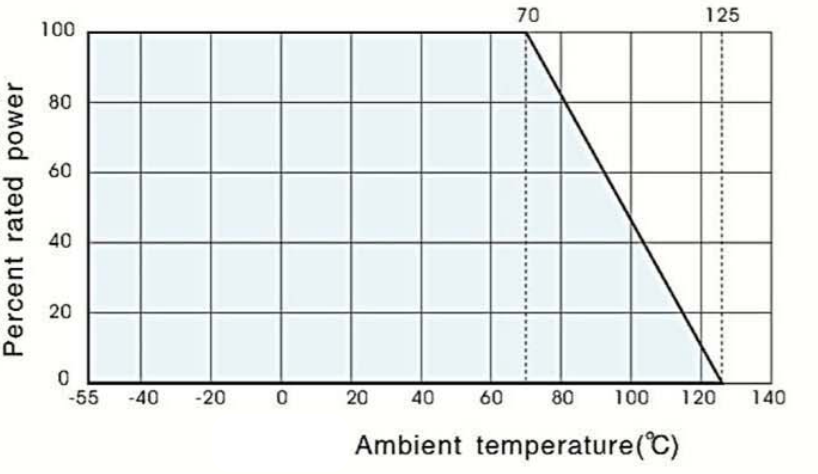

Model	Rated Power $P_{70} (W)$	TCR (ppm/°C)	Resistance Range	Limiting Voltage (DC or AC Effective Value)	Resistance Tolerance (%)	Climatic Category
0805	0.125	±50, ±25	1Ω ~ 10MΩ	100V	±1%, ±0.5%, ±0.25%	55/125/56
1206	0.25	±50, ±25	1Ω ~ 10MΩ	200V	±1%, ±0.5%, ±0.25%	55/125/56

Test Items and Specifications

Test Item	Specifications	Test Methods
Rapid Change of Temperature	$Δ R \leq \pm (0.25% R + 0.05Ω)$	$- 5 5^{\circ} C$ 30min / $12 5^{\circ} C$ 30min, 5 cycles
Temperature Cycling	$Δ R \leq \pm (1% R + 0.05Ω)$	$12 5^{\circ} C$ , 16h / $5 5^{\circ} C$ , RH93 $\pm$ 3%, 24h / $- 5 5^{\circ} C$ , 2h / $15 - 3 5^{\circ} C$ , 8.5kPa, 1h)
Endurance at 70℃	$Δ R \leq \pm (1% R + 0.05Ω)$	$70 \pm 2^{\circ} C$ , $P_{R}$ , 1000h
Leaching (Resistance to Solder Heat)	$Δ R \leq \pm (0.25% R + 0.05Ω)$	$350 \pm 1 0^{\circ} C$ , $3.5 \pm 0.5 S$
Short Time Overload	$Δ R \leq \pm (0.25% R + 0.05Ω)$	$2.5 V_{in}$ , 5S
Damp Heat, Steady State	$Δ R \leq \pm (1% R + 0.05Ω)$	$4 0^{\circ} C$ , RH93 $\pm$ 3%, 56d
Endurance at Upper Category Temperature	$Δ R \leq \pm (1% R + 0.05Ω)$	$12 5^{\circ} C$ , 1000h
Solderability	$\geq 95%$	$235 \pm 5^{\circ} C$ , $2 \pm 0.5 S$

Recommended Mounting Methods for Chip Resistors

Soldering Method	Soldering Pad Width
Wave Soldering	0.7 to 0.8 times the width of the chip resistor
Reflow Soldering	1.0 to 1.3 times the width of the chip resistor
