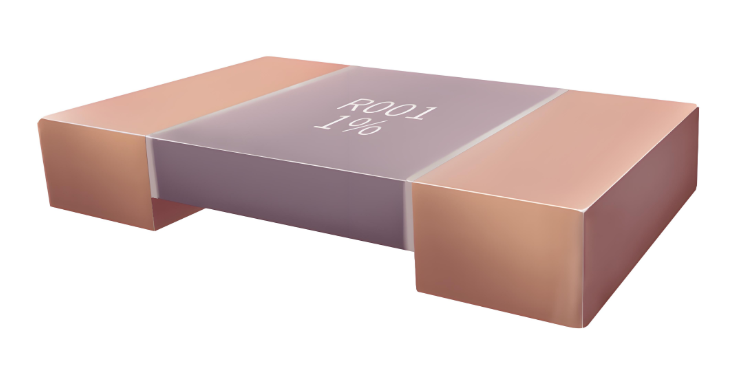

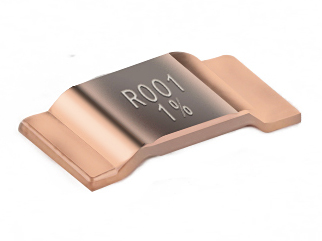

Customizable Ultra-Low TCR Shunt Chip Resistors

Feature	Details
Current Handling	Excellent current ability
Design	Ultra-low TCR resistive alloy design, Low inductance design, Low thermal EMF
Compliance	RoHS Compliant, AEC-Q200 qualified
Customization	Special specifications can be customized
Applications	Current Sensing, High current power system, Power Battery BMS, Energy storage battery system

Power (M)	Material	Resistance (mΩ)	Rthi [K/W]	Tolerance	TCR (ppm/°C)
0.05	1.5	±150	M	0.1	2
±0.5%	±100	36	±1%	±75	0.2
3	±5%	0.25	3.5	±50	K
0.5	4	±50

Parameter	Unit	Characteristics
Operating Temperature Range	°C	-65 to +170
Thermal EMF	µV/°C	<0.5
Inductance	nH	<3
Maximum Current Rating	A	(P/R)^1/2

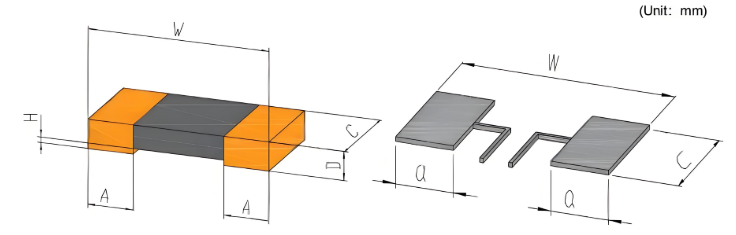

Resistance (mΩ)	A±0.3 (mm)	B±0.3 (mm)	T±0.2 (mm)
0.05	4.5	7.6	2.3
0.1	10	12.6	2.5
0.2	16	18.6	2.0
0.25	20	22.6	2.0
0.5	15	17.6	2.3

Performance Characteristics	Additional Requirements	Reference	Limits
Temperature Cycling	1000 Cycles (-55°C to +125°C)	JESD22 Method JA-104	±0.5%
High Temperature Exposure	100 hrs @ T=170°C, Unpowered	Mill-STD-202 Method 108	±0.5%
Low Temperature Storage	250 hrs @ T=-55°C, Unpowered	Mill-STD-202 Method 108	±0.5%
Biased Humidity	1000 hrs @ 85°C/85% RH, 10% of operating power	Mill-STD-202 Method 103	±0.5%
Operational Life	Condition D Steady State TA=125°C at rated power	Mill-STD-202 Method 108	±0.5%
Resistance to Soldering Heat	260°C ±5°C, 10s ±1s	Mill-STD-202 Method 210	±0.5%
Short Time Overload	5x Rated power for 5s	Mill-STD-202 Method 201	±0.5%
Shock	100g, 6ms, axes Z, X, and Y, 10 Shocks per axis	Mill-STD-202 Method 213	±0.5%
Vibration	(10-2000 Hz), 20g @ 0.1ms	Mill-STD-202 Method 204	±0.5%
Solderability	245°C ±5°C, 5s ±0.5s, 95% Coverage Minimum	MIL-STD-202 Method 208H
