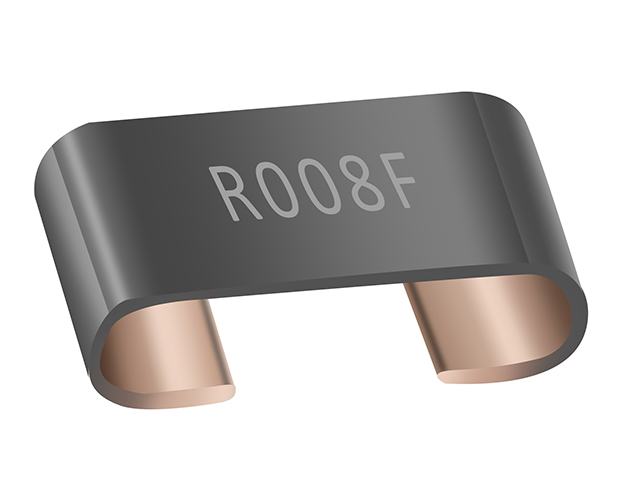

Alloy Shunt chip Resistors type S

Operating Temperature range -65℃~+170℃
Electron beam welding
Ideal for pulse application
RoHS Compliant
Customizable
AEC - Q200 qualified.

Frequency conversion drive, servo drive system
High current battery management system
Automobile electronic control unit, automobile oil pump drive
DC/DC, DC/AC power modules
Automatic control system
Industrial instrument and equipment

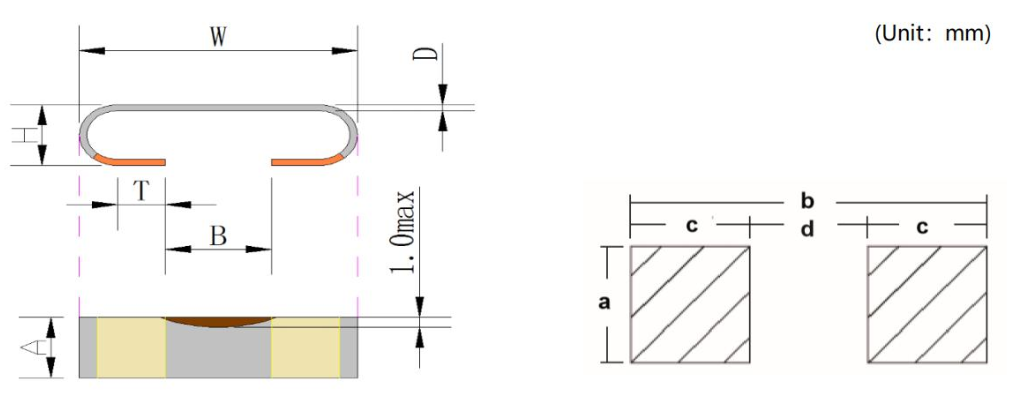

Product Dimensions and pcb-layout (Reflow-soldering)

Size	Resistor (mΩ)	W (mm)	H (mm)	T (mm)	B (mm)	A (mm)	D (mm)
4312	2 - 50	11 ± 0.5	2.7 - 4.0	2.8 ± 0.3	4.2 ± 0.5	3.1 ± 0.3	0.12 - 0.7
4320	1 - 25	11 ± 0.5	2.7 - 4.0	2.8 ± 0.3	4.2 ± 0.5	6.1 ± 0.4	0.12 - 0.7

Size	Resistor (mΩ)	a (mm)	b (mm)	c (mm)	d (mm)
4312	2 - 50	3.6 + 0.2/0	13.2 ± 0.3	5 ± 0.1	3.2 ± 0.1
4320	1 - 25	6.5 + 0.2/0	13.2 ± 0.3	5 ± 0.1	3.2 ± 0.1

Size	Resistance(Unit: mΩ)	Tolerance	Operating temperature range	Power P70°C(Unit: W)	Temperature coefficient (Unit:ppm/°C)	Material(Unit: mΩ)
4312	2~15, 16~50	±1%, ±2%, ±5%	-65°C to +170°C	3	2, 3mΩ: ≤ 240; F/K: ±40, M: ±50	M: 2~9; F: 10~50; K: 10~50
4320	1~25	±1%, ±2%, ±5%	-65°C to +170°C	2	1mΩ: ≤ 240; M: ±50	M: 1~4; F: 5~25; K: 5~25

Items	Additional Requirements	Reference	Limits
Temperature Cycling	1000 Cycles(-55°C to +125°C)	JESD22 Method JA - 104	±0.5%
High Temperature Exposure	100hrs.@T = 170°C.Unpowered.	MIL - STD - 202 Method 108	±0.5%
Biased Humidity	1000hrs 85°C/85%RH. Note:Specified conditions:10% of operating power.	MIL - STD - 202 Method 103	±0.5%
Operational Life	Condition D Steady State TA = 125°C at rated power.	MIL - STD - 202 Method 108	±0.5%
Solderability	245°C ± 5°C,5s ± 0.5s	MIL - STD - 202 Method 208H	95% Coverage Minimum
Resistance to Soldering Heat	260°C ± 5°C, 10s ± 1s	MIL - STD - 202 Method 210	±0.5%
Short Time Overload	5 × Rated power for 5 s	MIL - STD - 202 Method 301	±0.5%
